Blustream's RX150CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology, and is designed for use with the PLA88CS Matrix. The product extends HDMI, Bi-directional IR & RS-232 and is powered by the matrix up to lengths of 150m (4K 100m).
promotional_banner_4
promotional_banner_4

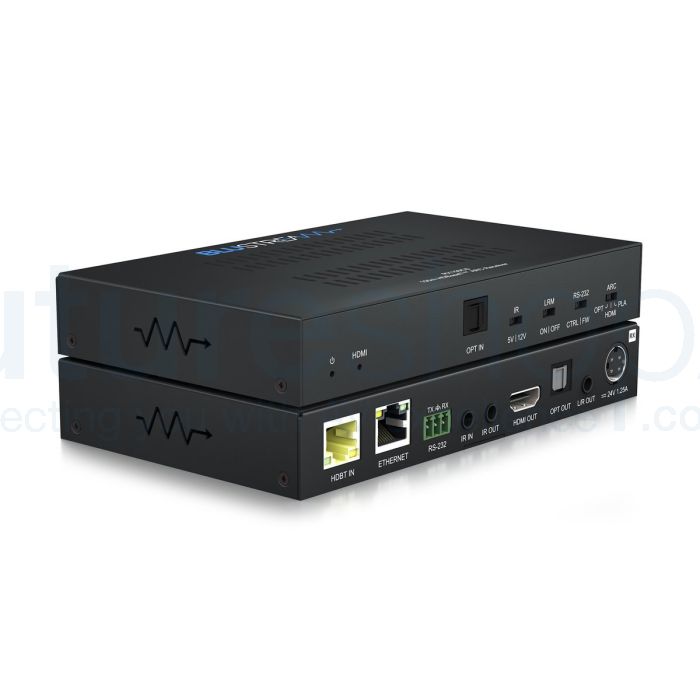

Blustream RX150CS HDBaseT™ Long Range CSC Receiver (for PLA88CS)



The Blustream RX150CS HDBaseT™ Long Range CSC Receiver is a high-performance receiver designed to work seamlessly with the PLA88CS Matrix, offering exceptional features and value.

Powered by the matrix itself, the RX150CS Receiver utilizes advanced HDBaseT™ technology to distribute video and audio signals over a single CAT cable, simplifying installation and reducing cable clutter. With its support for HDMI 2.0 and 18Gbps bandwidth, including HDR (High Dynamic Range), the receiver ensures pristine video quality and compatibility with the latest 4K resolutions, such as 4K 60Hz 4:4:4.

The RX150CS Receiver extends HDMI, bi-directional IR, and RS-232 signals up to impressive lengths of 150m for 1080p video and 100m for 4K UHD video. This long-range capability allows for the flexible placement of displays and devices, catering to various installation requirements.

Featuring ARC (Audio Return Channel) support, the RX150CS Receiver enables audio signals to be sent from a connected display back to the matrix or transmitter via HDMI or optical digital inputs. This functionality is especially useful for integrating audio systems and simplifying audio distribution within the setup.

The receiver also includes Ethernet pass-through capability, allowing for the simultaneous transmission of data signals alongside video and audio. This feature enhances connectivity options and provides additional flexibility for integrating compatible Blustream hardware.

The RX150CS Receiver supports all industry-standard video resolutions, ranging from VGA to WUXGA and 480i to 4K. It automatically downscales 4K 60Hz 4:4:4 video input to 1080p when necessary, ensuring optimal compatibility with different display capabilities.

With comprehensive audio format support, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, the receiver delivers immersive and high-fidelity sound to complement the stunning visual experience.

Bi-directional RS-232 pass-through enables seamless control of connected devices from either end of the system, providing convenient integration with automation and control systems.

The receiver also facilitates bi-directional IR pass-through to compatible HDBaseT™ devices, allowing you to control connected equipment remotely without the need for additional IR extenders.

Thanks to Power over Cable (PoC) support, the RX150CS Receiver can be powered directly from the Blustream matrix or transmitter, eliminating the need for separate power supplies and simplifying the overall setup.

HDCP 2.2 compliance ensures secure content transmission, and the receiver is recommended as the ideal companion for the Blustream PLA88CS product, offering seamless compatibility and optimized performance.

Enhance your audio/video distribution system with the Blustream RX150CS HDBaseT™ Long Range CSC Receiver, and enjoy outstanding features, reliable performance, and effortless integration within your setup.



Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 100m
  • Extends HDMI 1080P video up to 150m (HDBaseT™ long-reach mode)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
  • Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream transmitter / matrix)
  • Bi-directional Ethernet pass through when used with compatible Blustream transmitter or matrix solution.
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through to compatible HDBaseT™ device
  • Supports PoC (Power over Cable) from Blustream matrix or transmitter products
  • HDCP 2.2 support
  • Recommended receiver for the Blustream PLA88CS product.



Specification

  • Video Input Connectors: 1x HDBaseT™ RJ45 connector,
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female
  • Audio Input Connectors:1x Toslink (S/PDIF)
  • Audio Output Connectors: 1x Toslink (S/PDIF), 1x 3.5mm L/R Analogue audio
  • RS-232 serial port: 1x 3-Pin Phoenix connector
  • Ethernet port: 1x RJ45 connector
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x D x H): 164mm x 100mm x 25mm
  • Shipping Weight (Kit): 0.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 1x 24V/1.25A DC

Box Contents

  • 1 x RX150CS
  • 1 x Mounting kit
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.





  • Video Input Connectors: 1x HDBaseT™ RJ45 connector,
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female
  • Audio Input Connectors:1x Toslink (S/PDIF)
  • Audio Output Connectors: 1x Toslink (S/PDIF), 1x 3.5mm L/R Analogue audio
  • RS-232 serial port: 1x 3-Pin Phoenix connector
  • Ethernet port: 1x RJ45 connector
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x D x H): 164mm x 100mm x 25mm
  • Shipping Weight (Kit): 0.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 1x 24V/1.25A DC

Box Contents

  • 1 x RX150CS
  • 1 x Mounting kit
  • 1 x Quick Reference Guide
