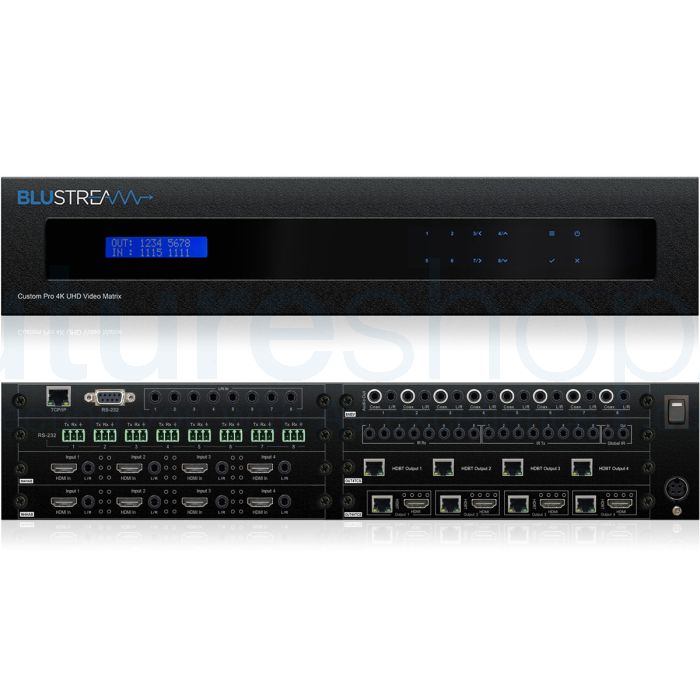

Blustream PRO88HBT100CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 70m)

£5,473.00 £4,560.83
SKU
PRO88HBT100CS
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PRO88HBT100CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 100m over a single CAT cable (4K HDR up to 70m).
promotional_banner_4
promotional_banner_4

Blustream PRO88HBT100CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 70m)



Introducing the Blustream PRO88HBT100CS Custom Pro 8x8 HDBaseT CSC Matrix, the ultimate solution for custom installation in the market. This Matrix is designed to offer unprecedented 4K HDR performance with advanced features that ensure exceptional video and audio quality for every installation.

Using the HDBaseT™ technology, this matrix offers the distribution of video and audio over a single CAT cable, delivering HDMI, bi-directional IR, and PoH (PoE) up to lengths of 100m (4K HDR up to 70m). The PRO88HBT100CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to support the HDMI2.0 18Gbps specification, including HDR. It features 8 x HDMI inputs that can be independently routed to 8 x HDBaseT™ outputs.

One of the Matrix's advanced features is the independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs. This feature allows displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. With this feature, you can enjoy superior video quality on every display.

The PRO88HBT100CS supports all industry standard video resolutions, including VGA-WUXGA and 480i-4K HDR, and all known digital HDMI audio formats, including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions. It also has 8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs, ensuring that every audio need is met.

This Matrix also features a web interface module for control and configuration, allowing you to easily manage and control the Matrix from anywhere. It supports bi-directional IR and is supplied with Blustream IR receivers and emitters. Control is via front panel, IR, RS-232 and TCP/IP, ensuring that you can choose the control method that suits you best.

The PRO88HBT100CS is HDCP 2.2 compliant and supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers. It has a 2U Design for 19" rack mount integration, with a mounting kit included, ensuring easy installation. Advanced EDID management is also included, allowing you to manage EDID data between sources and displays.

To ensure optimal performance, the PRO88HBT100CS is to be used with the HEX100CS-RX receivers. If you are looking for a Matrix that offers superior video and audio quality with advanced features for custom installation, the Blustream PRO88HBT100CS Custom Pro 8x8 HDBaseT CSC Matrix is the perfect solution for you.





Features

  • HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 70m
  • Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
    • 1080p 60Hz (for screens that do not support 4K)
    • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
  • Supports 4K with HDR
  • Extends HDMI 1080p video up to 100m
  • 4 x Simultaneous HDMI Outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • 8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
  • Analogue audio input can be embedded onto any HDMI input
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 2U Design for 19" rack mount integration - Mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • To be used with the HEX100CS-RX receivers



Specification

  • Video Input Connectors: 8 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Shipping Weight: 5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC



Blustream 4K60Hz 4:4:4 Feature Icon Blustream HDCP 2.2 Feature Icon Blustream HDBaseT Feature Icon
Blustream PoH Feature Icon Blustream EDID Feature Icon Blustream CSC Feature Icon
Blustream HDR Feature Icon Blustream Audio Breakout Feature Icon Blustream HDMI 2.0 Feature Icon
Blustream RS232 Feature Icon Blustream Line Level Feature Icon Blustream Web GUI Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 8 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Shipping Weight: 5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC
