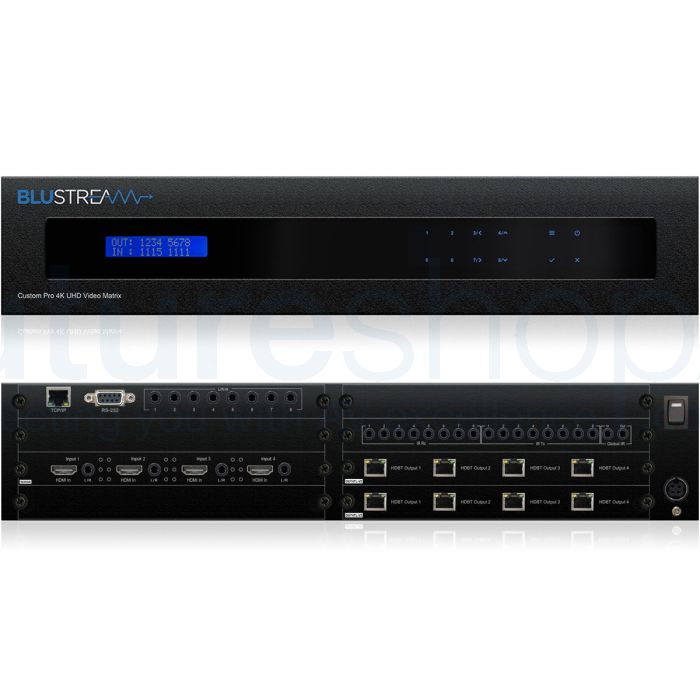

Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m)

£3,726.00 £3,105.00
SKU
PRO48HBT70CS
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PRO48HBT70CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 70m over a single CAT cable (4K with HDR up to 40m).
promotional_banner_4
promotional_banner_4

Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m)



The Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix, designed to meet the demanding needs of custom installation projects. This Matrix offers unparalleled 4K HDR performance with features that set it apart from the competition.

Using HDBaseT™ technology, this Matrix delivers both video and audio distribution over a single CAT cable. The advanced Color Space Conversion (CSC) supports the HDMI2.0 18Gbps specification, including HDR, ensuring a seamless viewing experience. With 4 HDMI inputs that can be independently routed to 8 HDBaseT™ outputs, this Matrix provides flexibility and ease of use.

The PRO48HBT70CS supports 4K 60Hz 4:4:4 UHD video up to 40m with independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to 1080p 60Hz or 4K 60Hz 4:2:0, allowing displays that don't support 4K to receive 4K video while still displaying maximum 4K UHD resolution on higher-definition displays. Additionally, this Matrix extends HDMI 1080p video up to 70m and supports all industry-standard video resolutions, including VGA-WUXGA and 480i-4K HDR.

Audio capabilities are also top-notch, with support for all known digital HDMI audio formats, including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions. Analogue audio input can also be embedded onto any HDMI input.

The PRO48HBT70CS also features a web interface module for control and configuration of the Matrix, bi-directional IR support, and comes supplied with Blustream IR receivers and emitters. Control of the Matrix is available through the front panel, IR, RS-232, and TCP/IP, with support for PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers.

This Matrix is HDCP2.2 compliant and includes advanced EDID management, making it compatible with third-party drivers available for all major home control brands. The 2U design for 19" rack mount integration with mounting kit included ensures ease of installation.

The Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix is designed to meet the needs of the most demanding custom installation projects. Pair it with the HEX70CS-RX receivers for an unparalleled viewing experience.





Features

  • HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 4x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
    • 1080p 60Hz (for screens that do not support 4K)
    • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
  • Supports 4K HDR
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • Analogue audio input can be embedded onto any HDMI input
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 2U Design for 19" rack mount integration - Mounting kit included
  • Advanced EDID management
  • HDCP2.2 compliant
  • To be used with the HEX70CS-RX receivers



Specification

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8 x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Shipping Weight: 5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC



Blustream 4K60Hz 4:4:4 Feature Icon Blustream HDCP 2.2 Feature Icon Blustream HDBaseT Feature Icon
Blustream PoH Feature Icon Blustream EDID Feature Icon Blustream CSC Feature Icon
Blustream HDR Feature Icon Blustream Audio Breakout Feature Icon Blustream HDMI 2.0 Feature Icon
Blustream RS232 Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8 x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Shipping Weight: 5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC
