Blustream PRO-IN4HDA 4-Way 4K HDMI2.0 Input board

£707.00 £589.17
SKU
PRO-IN4HDA
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

If you're looking for a high-performance and flexible solution for your AV installation, then the Custom Pro-IN4HDA Matrix is the perfect choice. The Custom Pro Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific project.

promotional_banner_4
promotional_banner_4

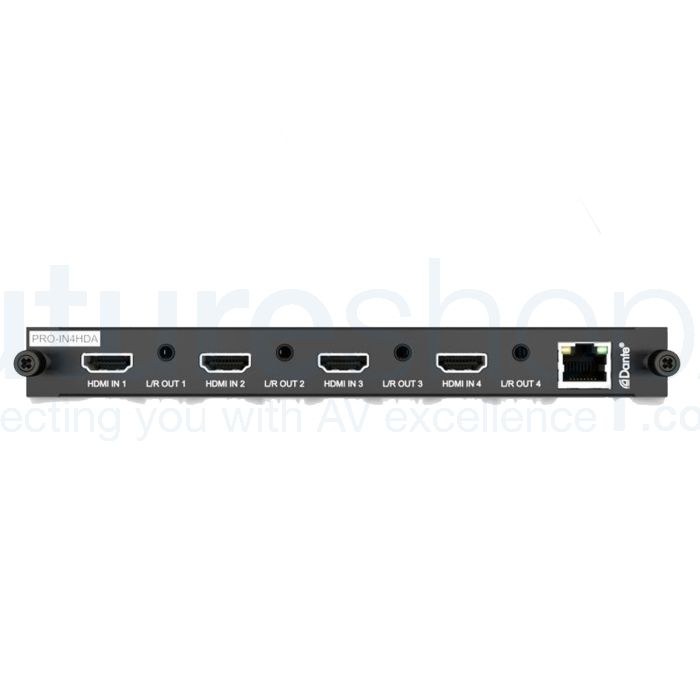

Blustream PRO-IN4HDA 4-Way 4K HDMI2.0 Input board supporting 4K 60Hz 4:4:4 with Dante Audio input, Dante Audio output and Analogue Audio Breakout



If you're looking for a high-performance and flexible solution for your AV installation, then the Custom Pro-IN4HDA Matrix is the perfect choice. The Custom Pro Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific project.

The PRO-IN4HDA board features 4x HDMI 2.0 inputs supporting 4K 60Hz 4:4:4 that can be independently routed to any HDMI/HDBaseT output board. Each HDMI input includes independent 2ch Dante audio breakout, fixed level 2ch analogue audio breakout, and 4x 2ch Dante audio inputs allowing audio embedding onto the HDMI source. The PRO-IN4HDA features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.


Key Features

  • Features 4x HDMI 2.0 inputs which can be independently routed to video output cards
  • Supports HDMI 2.0 18 Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Each HDMI input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
  • Each HDMI input includes independent 2ch Dante audio breakout allowing connection to a Dante audio solution (supports 2ch PCM)
  • Supports 4x 2ch Dante audio inputs allowing audio embedding onto the HDMI inputs
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support


*For HDMI 2.0 18Gbps video distribution the PRO-IN4HDA must be used with a HDMI 2.0 18Gbps Custom Pro output board



Specification

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 4x Analogue Left/Right audio (3.5mm stereo jack)
  • Ethernet port: 1x LAN RJ45 connector (Dante Audio)
  • Card Dimensions (W x H x D): 170mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 4x Analogue Left/Right audio (3.5mm stereo jack)
  • Ethernet port: 1x LAN RJ45 connector (Dante Audio)
  • Card Dimensions (W x H x D): 170mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
