Blustream NPA70DA Dante Networked Power Amplifier

£629.00 £524.17
SKU
NPA70DA
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

If you are in need of an advanced audio solution for a commercial or residential AV installation, the Blustream NPA70DA Dante Networked Power Amplifier is the perfect choice for you. This amplifier offers an array of features and benefits, including a 2 x 35W digital amplifier (1 x 70W mono) or 70V/100V hi-level constant voltage output and Dante audio integration.
promotional_banner_4
promotional_banner_4

Blustream NPA70DA Dante Networked Power Amplifier



The Blustream NPA70DA Dante Networked Power Amplifier is the ultimate solution for advanced audio integration in commercial or residential AV installations. This amplifier offers a wide range of features and benefits that cater to your audio needs. With a 2 x 35W digital amplifier (1 x 70W mono) or 70V/100V hi-level constant voltage output, the NPA70DA provides powerful and versatile audio performance. Its integration with Dante Audio ensures seamless connectivity and compatibility with Dante-enabled systems.

One of the standout features of the NPA70DA is its PoE++ capabilities. It can be powered via Power over Ethernet from a compatible network switch, eliminating the need for additional power cables and simplifying installation. Alternatively, the amplifier can be locally powered if the network switch does not support PoE++.

The NPA70DA offers the flexibility of combined or independent LAN and Dante connections, allowing you to tailor the setup to your specific requirements. Whether you prefer a unified network or separate connections for LAN and Dante control, this amplifier has you covered.

Equipped with a DSP (Digital Signal Processor), the NPA70DA includes a 31-band EQ for precise audio tuning. You can adjust the EQ with a range of +3dB/-10dB, ensuring optimal sound quality and customization. The audio delay feature is particularly useful for lip sync correction, guaranteeing synchronized audio and video playback.

Controlling the NPA70DA is a breeze, thanks to multiple control options. You can access and adjust settings using the front panel interface, IR remote control, RS-232, TCP/IP commands, web GUI, or a 12V trigger. This versatility enables seamless integration with existing control systems and provides convenient operation.

The amplifier features an auto standby mode with signal sensing, optimizing energy efficiency by automatically entering standby mode when no audio signal is detected. This intelligent feature helps conserve power while ensuring that the amplifier is ready for use when audio is present.

To simplify setup and control, the NPA70DA comes with an intuitive web GUI. This built-in web interface allows for easy configuration and control of the amplifier using a web browser, providing a user-friendly and accessible interface for system customization.

In summary, the Blustream NPA70DA Dante Networked Power Amplifier is the ultimate choice for advanced audio integration. With its powerful amplifier, Dante compatibility, PoE++ support, dual network options, DSP with EQ and audio delay, versatile control options, and intuitive web GUI, this amplifier exceeds expectations in delivering exceptional audio performance and system flexibility. Upgrade your AV installation with the NPA70DA and experience professional-grade audio integration like never before.



Features

  • Advanced network audio amplifier with Dante® integration
  • Supports 2 x 35W @ 4 / 8 ohm, 1 x 70W @ 4 / 8 ohm or 70 / 100V constant output for multiple speakers with longer cable runs
  • Supports power via PoE++ on Dante® LAN connection or local power supply*
  • Dual network option - independent Dante® and LAN control ports, or combined to a single LAN
  • 2ch Dante® / AES67 audio input
  • DSP with 31 band EQ with +3dB/-10dB and audio delay
  • Local 12V input trigger for automated power control
  • Control via front panel, IR, RS-232 and IP
  • Auto standby mode with signal sensing
  • In-built web-GUI for setup and control

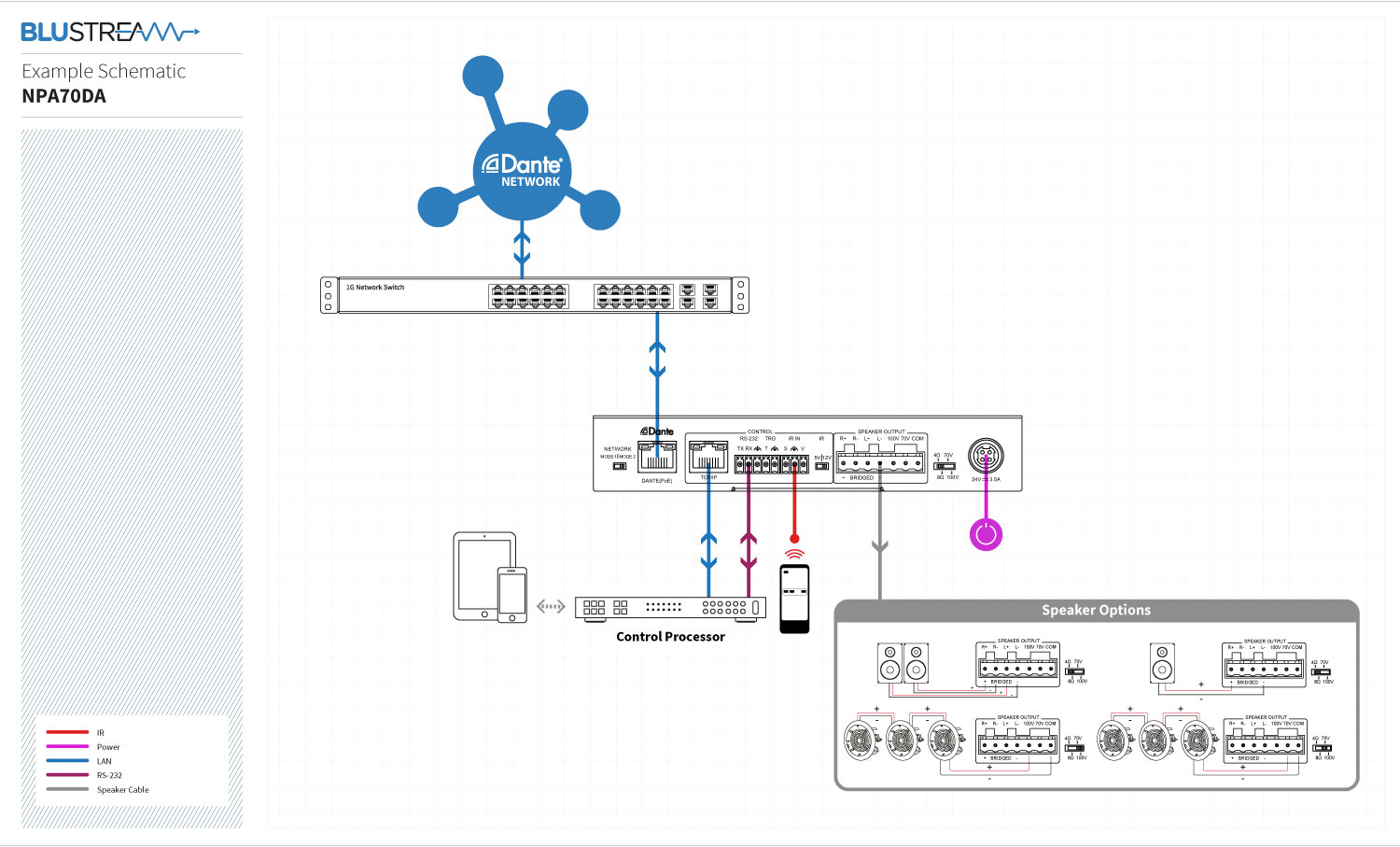

NPA70DA SCHEMATIC



Specification

  • Audio Inputs: 1 x RJ45 Dante® Audio connection
  • Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100V speaker)
  • Ethernet Port: 1 x LAN RJ45 connector (Dante®), 1 x LAN RJ45 connector (Network)
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • IR Input Ports: 1 x 3-Pin Phoenix connector
  • Trigger Input: 1 x 2-Pin Phoenix connector
  • Rack Mountable: 19” Rack mounting and wall / surface mounting kit included
  • Casing Dimensions (W x H x D): 202mm x 175mm x 31mm
  • Dimensions Including Connections (W x H x D): 245mm x 175mm x 31mm
  • Shipping Weight: 1.8kg
  • Operating Temperature: 32°F to 104°F (0°C to +40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to +60°C)
  • Power Supply: PoE++ Type 4, or 24V/3.5A DC 4-pin DIN



Box Contents

  • 1 x NPA70DA
  • 1 x 24V/3.5A power supply
  • 1 x Remote control
  • 1 x IR Receiver
  • 1 x Rack mounting kit
  • 1 x Wall / surface mounting kit
  • 4 x Rubber feet
  • 1 x User Manual



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Audio Inputs: 1 x RJ45 Dante® Audio connection
  • Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100V speaker)
  • Ethernet Port: 1 x LAN RJ45 connector (Dante®), 1 x LAN RJ45 connector (Network)
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • IR Input Ports: 1 x 3-Pin Phoenix connector
  • Trigger Input: 1 x 2-Pin Phoenix connector
  • Rack Mountable: 19” Rack mounting and wall / surface mounting kit included
  • Casing Dimensions (W x H x D): 202mm x 175mm x 31mm
  • Dimensions Including Connections (W x H x D): 245mm x 175mm x 31mm
  • Shipping Weight: 1.8kg
  • Operating Temperature: 32°F to 104°F (0°C to +40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to +60°C)
  • Power Supply: PoE++ Type 4, or 24V/3.5A DC 4-pin DIN
