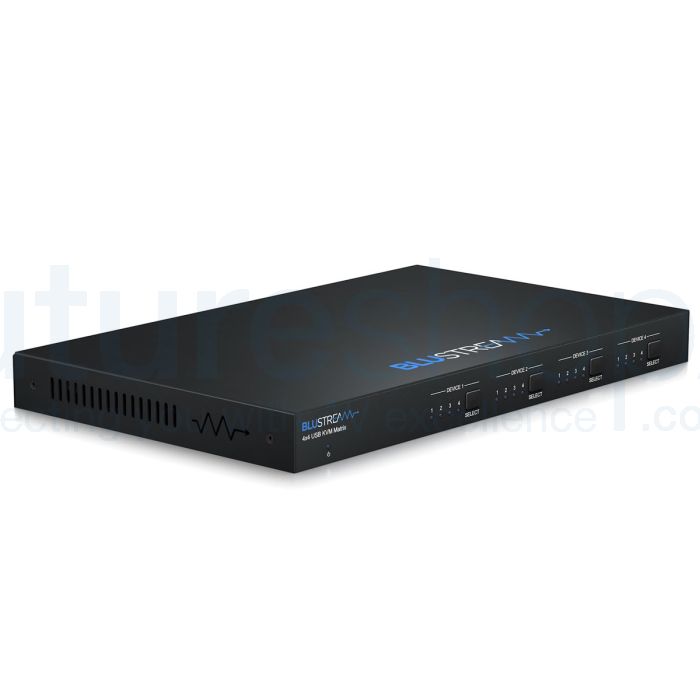

Blustream MX44KVM 4x4 USB KVM Matrix

£494.00 £411.67
SKU
MX44KVM
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The MX44KVM is a 4x4 USB.30 KVM Matrix which allows 4 different 'peripheral' USB devices to be connected to and shared across 4 different hosts. The USB-A connections can power devices requiring up to 5V/900mA, and the RS-232 ports allow the MX44KVM to be linked to any Blustream video matrix products.

promotional_banner_4
promotional_banner_4

Blustream MX44KVM 4x4 USB KVM Matrix supporting USB 3.0 data transfer rates up to 5Gbps, 4x configurable GPIO, Front Panel, IR, TCP / IP and RS-232 control with loop-through, web-GUI



The Blustream MX44KVM 4x4 USB KVM Matrix is a game-changer in the custom and commercial installation market. This advanced matrix system allows you to connect and share up to four USB peripheral devices among four different host devices, providing seamless control and convenience.

With USB 3.0 connectivity, the MX44KVM offers blazing-fast data transfer rates of up to 5Gbps. This ensures lightning-quick response times and efficient performance when using your USB devices. It is also backwards compatible with USB 2.0 and 1.1, ensuring compatibility with a wide range of devices.

Setting up the MX44KVM is a breeze. It supports plug-and-play functionality, eliminating the need for drivers, downloads, or additional software. Simply connect your USB devices and hosts, and you're ready to go. The USB-A connections provide 5V/900mA power, ensuring compatibility with devices that require higher power consumption.

In addition to its exceptional USB switching capabilities, the MX44KVM offers advanced features to enhance your overall setup. The matrix system includes four configurable GPIO (General Purpose Input/Output) ports, allowing integration with third-party products and enabling trigger-based actions. This opens up a world of possibilities for automation and control in your AV environment.

The RS-232 loop-through feature allows seamless integration with other Blustream video matrix products. By linking the MX44KVM to a video-only switching product, you can add KVM support and expand the functionality of your existing setup. This provides a unified and comprehensive control solution for both video and USB switching.

Controlling and configuring the MX44KVM is simple and intuitive. The matrix system offers multiple control options, including front panel buttons, IR (Infrared) remote control, RS-232, and TCP/IP. This versatility lets you choose the control method that best suits your preferences and requirements.

The MX44KVM features an in-built web browser interface module, providing a user-friendly and accessible way to manage and configure the matrix system. With the web interface, you can make adjustments, customize settings, and monitor the status of your USB connections easily.

Experience the power of the Blustream MX44KVM 4x4 USB KVM Matrix and unlock a new level of control and convenience in your AV installations. Whether it's in commercial environments, control rooms, or advanced home setups, this feature-rich matrix system delivers outstanding performance, flexibility, and seamless integration. Elevate your USB switching capabilities with the MX44KVM and enjoy the ultimate control experience.



Features

  • 4x4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
  • USB 3.0 connectivity with data transfer rates up to 5Gbps
  • Backwards compatible with USB 2.0 and 1.1
  • Plug-and-play with no drivers, downloads, or software required
  • USB-A connections provide 5V / 900mA
  • Features 4 x configurable GPIO ports for integration with 3rd party products
  • Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
  • Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
  • Web interface module for control and configuration of the MX44KVM
  • Control via front panel, IR, RS-232, and TCP/IP



Specification

  • USB Device: 4 x USB Type A, female
  • USB Host: 4 x USB Type B, female
  • RS-232 serial port: 2 x 3-pin Phoenix connector
  • IR Input port: 1 x 3.5mm stereo jack
  • TCP/IP Control: 1 x RJ45, female
  • GPIO Control: 1 x 5-pin Phoenix connector
  • Dimensions (W x D x H): 273mm x 168mm x 25mm
  • Shipping Weight: 2.65kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/1.25A DC, 4-pin DIN connector

Box Contents

  • 1 x MX44KVM
  • 1 x Mounting kit
  • 1 x USB-A to USB-B cable (1m)
  • 1 x IRR receiver
  • 1 x IRCAB control cable (3.5mm - 3.5mm cable)
  • 2 x 3-pin Phoenix connector
  • 1 x 5-pin Phoenix connector
  • 4 x Isolation feet
  • 1 x 24V/1.25A DC power supply
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.





  • USB Device: 4 x USB Type A, female
  • USB Host: 4 x USB Type B, female
  • RS-232 serial port: 2 x 3-pin Phoenix connector
  • IR Input port: 1 x 3.5mm stereo jack
  • TCP/IP Control: 1 x RJ45, female
  • GPIO Control: 1 x 5-pin Phoenix connector
  • Dimensions (W x D x H): 273mm x 168mm x 25mm
  • Shipping Weight: 2.65kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/1.25A DC, 4-pin DIN connector

Box Contents

  • 1 x MX44KVM
  • 1 x Mounting kit
  • 1 x USB-A to USB-B cable (1m)
  • 1 x IRR receiver
  • 1 x IRCAB control cable (3.5mm - 3.5mm cable)
  • 2 x 3-pin Phoenix connector
  • 1 x 5-pin Phoenix connector
  • 4 x Isolation feet
  • 1 x 24V/1.25A DC power supply
  • 1 x Quick Reference Guide
