Blustream MFP112 11 Input 2 Output Multi-Format Presentation Switch

£1,099.00 £915.83
SKU
MFP112
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's MFP112 is a multi-format presentation switcher within-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT™ input and output
promotional_banner_4
promotional_banner_4

Blustream MFP112 11 Input 2 Output Multi-Format Presentation Switch (Includes 100M HDBaseT input and output).



Introducing the Blustream MFP112 Multi-Format Presentation Switch - the perfect solution for your professional audio-visual needs. With 11 inputs and 2 outputs, including a 100M HDBaseT input and output, this switcher can function in 2 different modes - Splitter mode and Matrix Switcher mode - providing flexible display options to suit your setup.

In splitter mode, both HDMI output 1 and HDBaseT output 2 will display the same selected input. While in Matrix Switcher mode, HDMI inputs are independently switchable to HDMI output 1 and HDBaseT output 2. HDMI output 1 has access to HDBaseT input and HDMI inputs 1-4 only, including HDMI signal pass-through with 4K resolution. On the other hand, HDBaseT output 2 has access to all HDMI, HDBaseT, and analogue video inputs with associated audio.

The HDBaseT output (output 2) allows for the distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving, and EDID management. Meanwhile, the HDBaseT input can integrate remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving.

With built-in video scaling, this switcher can handle both up-scaling (maximum of 1080p) and down-scaling capabilities, including 4K to lower resolutions. Video inputs support all industry standard video resolutions, including VGA-WUXGA and 480i-4K, while scaled video output resolutions include 720p, 1080P, 1280x1024, 1024x768, 1360x768, 1440,900, and 1680x1050.

This multi-format presentation switcher also offers audio embedding, where the independent analogue L/R audio input can be embedded to HDMI/HDBaseT outputs, along with analogue L/R audio and coaxial digital outputs concurrently. This feature is available on HDMI/HDBaseT outputs 1+2 in Splitter mode and HDBaseT output 2 only in Matrix Switcher mode. The HDMI audio breakout to analogue L/R audio and coaxial digital outputs is linked to output 2 when in Matrix Switcher mode.

This switcher comes with the volume control of HDMI, line-level analogue L/R audio, and coaxial digital outputs. It supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master audio transmission. The front panel display provides status feedback, while control is possible via the front panel, IR, RS-232, and TCP/IP. Third-party drivers are available for all major home control brands, making integration seamless.

Additionally, this multi-format presentation switcher features advanced EDID management and is HDCP compliant. It comes with a 2-year warranty, so you can enjoy peace of mind with your purchase. Choose the Blustream MFP112 Multi-Format Presentation Switch for your next professional audio-visual setup.



Features:

  • Product Code - MFP112
  • Switcher can function in 2 modes: Splitter mode - Both HDMI output 1 & HDBaseT™ output 2 display the same selected input. Matrix Switcher mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseT™ output 2 has access to all HDMI, HDBaseT™ and analogue video inputs with associated audio
  • HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management
  • HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
  • Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions)
  • Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Scaled video output resolutions include 720p, 1080P, 1280x1024, 1024x768, 1360x768, 1440,900, 1680x1050
  • Audio embedding - Independent Analogue L/R audio input can be embedded to HDMI/HDBaseT™ outputs + Analogue L/R audio and Coaxial digital outputs concurrently (Feature available on HDMI/HDBaseT™ outputs 1+2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode)
  • HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
  • Volume control of HDMI, line-level Analogue L/R audio and Coaxial digital outputs
  • Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
  • Front panel display for status feedback
  • Control via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP compliant
  • 2 Years Warranty

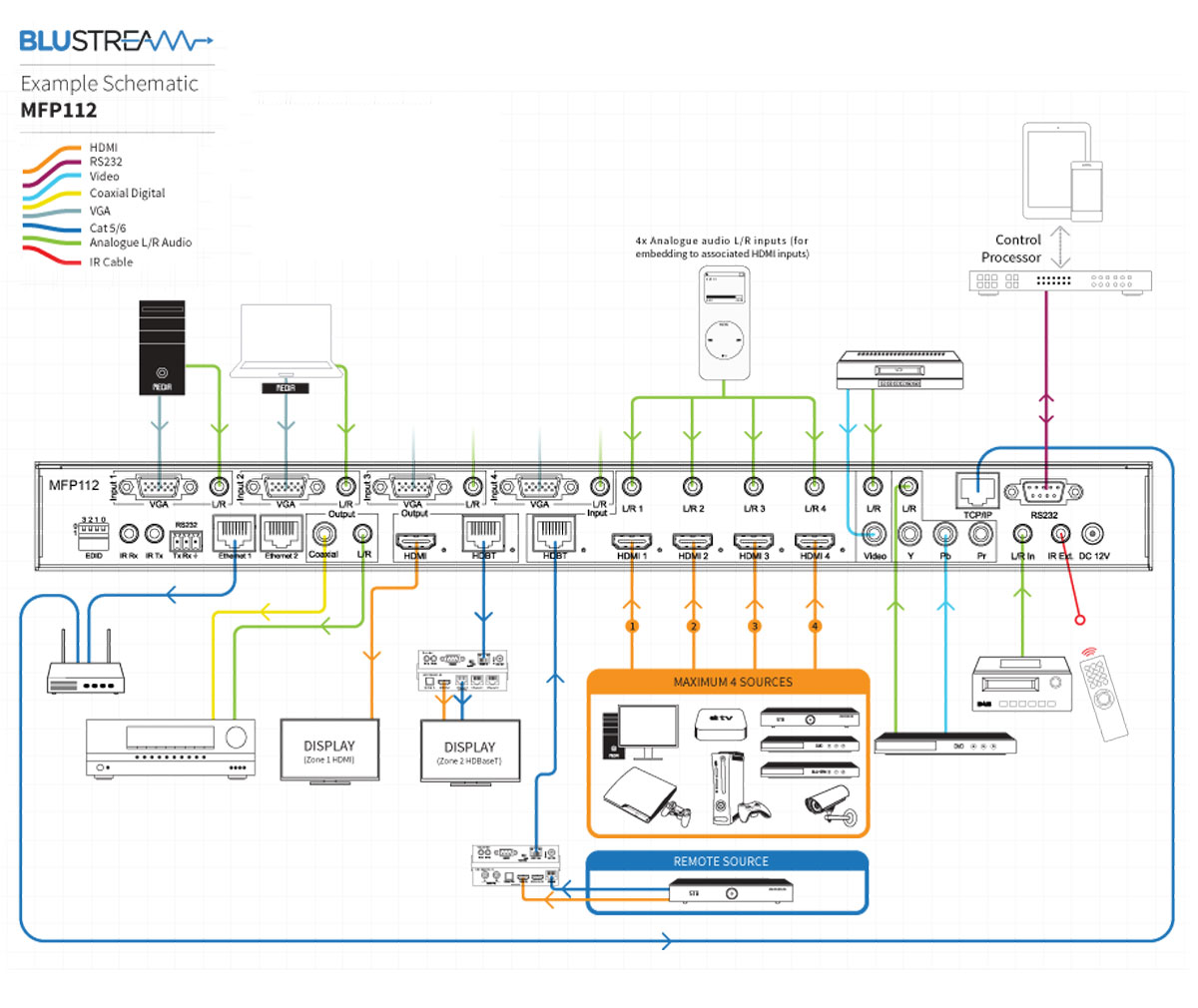

Blustream MFP112 Multiformat Presentation Switch Schematic

Specifications

  • Video Input Connectors: 4x HDMI Type A, 1x HDBaseT™ RJ45 connector, 4x VGA, 1x Composite, 1x YPbPr
  • Video Output Connectors: 1x HDMI Type A, 1x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 11x Analogue audio 3.5mm stereo jack
  • Audio Output Connectors: 1x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
  • RS-232 serial port: DB-9 connector (Matrix control), 1x 3-pin Phoenix connector for RS232 pass-through
  • IR Input ports: 2x 3.5mm stereo jack
  • IR Output ports: 2x 3.5mm mono jack
  • Casing Dimensions (WxHxD): 438mm x 45mm x 225mm, without feet
  • Dimensions Including Connections (WxHxD): 438mm x 45mm x 235mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/5A DC



Box Contents

  • MFP112
  • 12V/5A DC power supply
  • Remote control
  • 4x IR Receiver
  • 3x IR Transmitters
  • IR control cable - 3.5mm-3.5mm cable
  • Serial cable - 9-pin RS232 to 3-pin phoenix connector
  • Mounting kit
  • User manual


Sold Separately

  • 1 x HDBaseT™ 100m transmitter (HDBaseT™ source input)
  • 1 x HDBaseT™ 100m receiver (HDBaseT™ output)


Blustream MF112 Multi-Format Presentation Switch Specification



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specifications:

  • Video Input Connectors: 4x HDMI Type A, 1x HDBaseT™ RJ45 connector, 4x VGA, 1x Composite, 1x YPbPr
  • Video Output Connectors: 1x HDMI Type A, 1x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 11x Analogue audio 3.5mm stereo jack
  • Audio Output Connectors: 1x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
  • RS-232 serial port: DB-9 connector (Matrix control), 1x 3-pin Phoenix connector for RS232 pass-through
  • IR Input ports: 2x 3.5mm stereo jack
  • IR Output ports: 2x 3.5mm mono jack
  • Casing Dimensions (WxHxD): 438mm x 45mm x 225mm, without feet
  • Dimensions Including Connections (WxHxD): 438mm x 45mm x 235mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/5A DC
