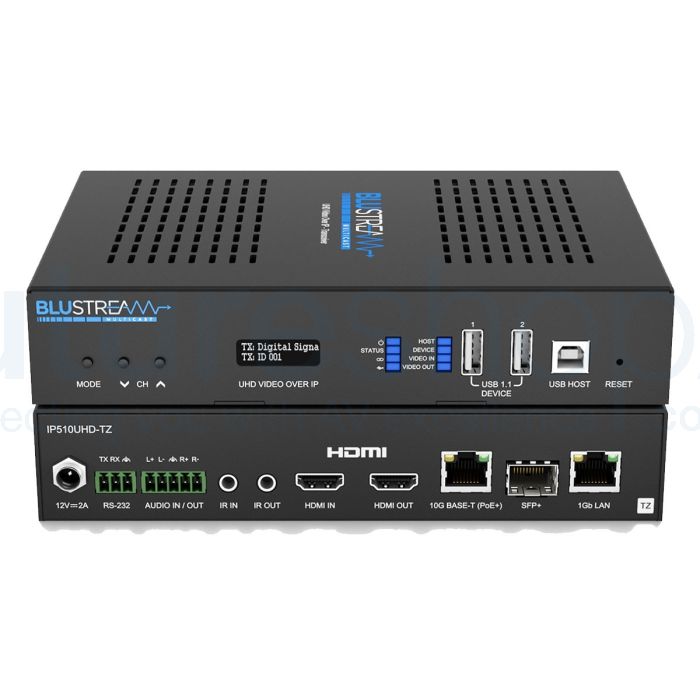

Blustream IP510UHD-TZ UHD Video Over IP Transceiver

£1,185.00 £987.50
SKU
IP510UHD-TZ
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Blustream IP510UHD Transceiver is the ultimate solution for all your AV over IP needs. With its SDVoE compliance, this product guarantees the highest-quality, uncompromised 4K video and zero latency audio extension over copper or optical fibre 10G networks. It supports HDMI 2.0, including distribution of HDR and 10/12-bit colour content, as well as multi-channel HD audio signals.

promotional_banner_4
promotional_banner_4

Blustream IP510UHD-TZ UHD Video Over IP Transceiver



The Blustream IP510UHD Transceiver is the ultimate solution for all your AV over IP needs. With its SDVoE compliance, this product guarantees the highest-quality, uncompromised 4K video and zero latency audio extension over copper or optical fibre 10G networks. It supports HDMI 2.0, including distribution of HDR and 10/12-bit colour content, as well as multi-channel HD audio signals.

The IP510UHD-TZ also offers advanced capabilities such as PoE+ and transmission of multiple control and data signals, including IR, RS-232, USB (KVM), and 1Gb Ethernet. This makes it the perfect choice for 18Gbps HDMI installations, where it can be combined with 10GbE copper/fibre switches to create a distributed video matrix, multi-viewer, or video wall system.

With its four operational modes, including matrix distribution, video wall, multi-view mode, and one-to-one HDMI extender, the IP510UHD-TZ offers flexibility and convenience for any setup. It also supports fixed signal routing for IR, RS-232, CEC, and USB, as well as analogue L/R audio embedding and audio breakout options.

The product is also highly efficient, with bi-directional 10/100/1000BaseT Ethernet pass-through, bi-directional 5V or 12V IR pass-through, and PoE (Power over Ethernet) capabilities. It is also HDCP 2.2 compliant and comes with advanced EDID management.

The IP510UHD-TZ can be powered via PoE+ switch or its own 12V 2A power supply.

It also supports Genlock mode for HDR and Dolby Vision content, ensuring an optimal viewing experience. And to top it off, the Blustream Multicast system distributes HDMI video over 10Gb managed network hardware, providing a seamless and reliable connection.

In order to ensure the best performance, it is recommended to connect Blustream Multicast products on a separate network switch. And to make sure you get the most out of your product, be sure to read and understand the User Manual available for download on the Blustream website, and properly set up your network switch before connecting any Blustream Multicast products.



Features

  • Advanced 18Gbps UHD Video over 10Gb network with visually lossless compression, and zero latency
  • Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources,
  • including Dolby Vision*
  • Supports video scaling and seamless switching
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD
  • Master Audio transmission
  • Features 4 operational modes:
    • Matrix distribution (requires 10Gb network switch)
    • Video Wall (requires 10Gb network switch)
    • Multiview mode (requires 10Gb network switch)
    • One-to-one HDMI extender (no network switch required)
  • Supports fixed signal routing function for IR, RS-232, CEC and USB
  • USB 1.1 end to end/point to point pass-through for KVM
  • Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
  • Bi-directional 10/100/1000BaseT Ethernet pass-through
  • Supports bi-directional 5V or 12V IR pass-through
  • PoE (Power over Ethernet) to power Blustream products from PoE+ switch
  • HDCP 2.2 compliant with advanced EDID management
  • Local 12V 2A power supply (should Ethernet switch not support PoE+)



*HDR and Dolby Vision content requires Genlock mode to be enabled (video scaler in passthrough mode)



Please note: The Blustream Multicast system distributes HDMI video over 10Gb managed network hardware. It is advised that Blustream Multicast products are connected on an independent network switch to prevent interference or drop in signal performance due to other network products. Please take care to make sure that you have read and understood the instructions in the User Manual available to download from the Blustream website, and that you have setup your network switch correctly prior to connecting any Blustream Multicast products. Failure to do so may result in problems with configuration of the system and video performance.



Specification

  • Video input: 1 x HDMI Type A, female
  • Video output: 1 x HDMI Type A, female
  • Audio input / output: 1 x 5-pin Phoenix connector
  • Ethernet port: 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB-Type B (host) , 2 x USB-Type A (device)
  • IR input: 1 x 3.5mm stereo jack
  • IR output: 1 x 3.5mm mono jack
  • Dimensions (W x D x H ): 195mm x 153mm x 37mm
  • Dimensions including connections (W x D x H ): 191mm x 160mm x 37mm , without feet
  • Shipping weight (Kit): 1.05kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature : -4°F to 140°F (-20°C to 60°C)
  • Operating altitude: < 2,000m



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video input: 1 x HDMI Type A, female
  • Video output: 1 x HDMI Type A, female
  • Audio input / output: 1 x 5-pin Phoenix connector
  • Ethernet port: 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through
  • RS-232 serial port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB-Type B (host) , 2 x USB-Type A (device)
  • IR input: 1 x 3.5mm stereo jack
  • IR output: 1 x 3.5mm mono jack
  • Dimensions (W x D x H ): 195mm x 153mm x 37mm
  • Dimensions including connections (W x D x H ): 191mm x 160mm x 37mm , without feet
  • Shipping weight (Kit): 1.05kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature : -4°F to 140°F (-20°C to 60°C)
  • Operating altitude: < 2,000m
