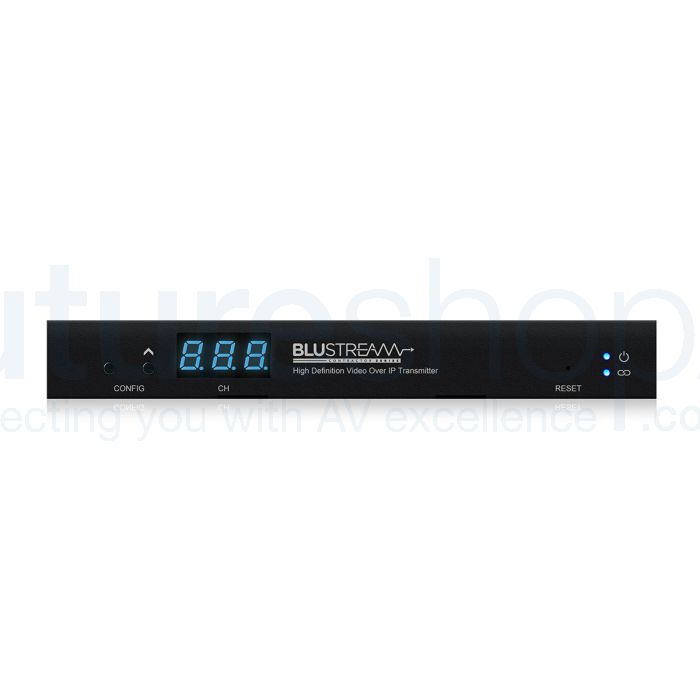

Blustream IP50HD-TX Contractor Series HD Video Transmitter

£352.00 £293.33
SKU
IP50HD-TX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The IP50HD-TX is the new upgrade on Blustream's previous Video-over-IP product, and is compatible with the existing ACM200 control module and software. It can operate as matrix distribution when used with a network switch, or as a one-to-one HDMI extender without one. This product is also designed to be used with a compatible receiver.
promotional_banner_4
promotional_banner_4

Blustream IP50HD-TX Contractor Series HD Video Transmitter over 1Gb Network, HDMI Loop-Out, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding and Analogue Audio Breakout



The Blustream IP50HD-TX Contractor Series HD Video Transmitter over 1Gb Network is a cutting-edge solution for high-definition video distribution. Designed as an upgrade to its predecessor, this transmitter offers compatibility with the existing ACM200 control module and software, ensuring seamless integration into your AV system. Whether you need matrix distribution or a one-to-one HDMI extender, the IP50HD-TX delivers exceptional performance in both commercial and residential installations.

With the IP50HD-TX, you can distribute AV and control signals over a 1Gb network, thanks to its advanced multicast distribution platform. This industry-leading 1080p HDMI transmitter leverages H.265 compression technology to transmit HDMI, Bi-directional IR, RS-232, and USB/KVM signals over standard network architecture, with up to 100m distances.

Flexibility is key with the IP50HD-TX. It supports unicast transmission over unmanaged networks and multicast transmission for large managed networks, catering to different network setups. The transmitter offers a range of configuration options, allowing you to customize the setup to suit your specific requirements.

When it comes to video quality, the IP50HD-TX shines. It supports resolutions up to 1080p at 60Hz, ensuring crystal-clear images. Additionally, it features an HDMI loop-out, enabling integration with local displays or cascading to multiple devices, providing enhanced versatility for your installation.

The IP50HD-TX excels in signal management, allowing independent routing of IR, RS-232, USB/KVM, and video/audio signals. This comprehensive control ensures seamless communication and interaction with your AV system. With PoE (Power over Ethernet) support, the transmitter can be powered directly from a PoE switch, eliminating the need for additional power sources. In cases where PoE is unavailable, a local 12V 1A power supply is included for convenience.

The IP50HD-TX complies with HDCP 1.4 standards and offers advanced EDID management, ensuring secure content transmission and seamless integration with various display devices. It also provides analogue L/R audio embedding and audio breakout (2ch PCM only) capabilities, allowing for enhanced audio integration.

The IP50HD-TX offers two operational modes to suit your specific requirements. A 1Gb network switch is required for matrix distribution, enabling seamless distribution of video and control signals. In the one-to-one HDMI extender mode, no network switch is required, simplifying the setup and providing a direct connection between the transmitter and receiver.

Experience the power of high-definition video distribution with the Blustream IP50HD-TX Contractor Series HD Video Transmitter over a 1Gb Network. Its advanced features, flexible configuration options, and seamless integration capabilities make it the ideal solution for professional AV installations.





Features



  • Advanced HD video, control and KVM over network infrastructure

  • Extends HDMI up to a distance of 100m over a single CAT cable

  • Supports unicast transmission over unmanaged networks

  • Supports multicast transmission for large managed networks

  • Supports up to 1080p @ 60Hz

  • Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices

  • Supports PCM 2.0 channel audio only

  • Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio

  • PoE (Power over Ethernet) to power product from a PoE switch

  • HDCP1.4 compliant with advanced EDID management

  • Analogue L/R audio embedding and audio breakout (2ch PCM only)

  • Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)

  • Features 2 operational modes:

    • Matrix distribution (requires 1Gb network switch)

    • One-to-one HDMI extender (no network switch required)



Specification



  • Video input: 1 x HDMI Type A, 19-pin, female, locking

  • Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, 19-pin, female, locking

  • Audio input: 1 x 3-pin Phoenix connector

  • Audio output: 1 x 3-pin Phoenix connector

  • Ethernet port: 1 x LAN RJ45 connector

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Host Port: 1 x USB-Type B

  • IR input: 1 x 3.5mm stereo jack

  • IR output: 1 x 3.5mm mono jack

  • Mounting kit included

  • Dimensions (W x D x H): 190mm x 95mm x 25mm

  • Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)



Box Contents



  • 1 x IP50HD-TX
  • 1 x IR Receiver
  • 1 x IR Emitter
  • 1 x Mounting Kit
  • 4 x Rubber Feet



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.







  • Video input: 1 x HDMI Type A, 19-pin, female, locking

  • Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, 19-pin, female, locking

  • Audio input: 1 x 3-pin Phoenix connector

  • Audio output: 1 x 3-pin Phoenix connector

  • Ethernet port: 1 x LAN RJ45 connector

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Host Port: 1 x USB-Type B

  • IR input: 1 x 3.5mm stereo jack

  • IR output: 1 x 3.5mm mono jack

  • Mounting kit included

  • Dimensions (W x D x H): 190mm x 95mm x 25mm

  • Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)



Box Contents

  • 1 x IP50HD-TX
  • 1 x IR Receiver
  • 1 x IR Emitter
  • 1 x Mounting Kit
  • 4 x Rubber Feet
