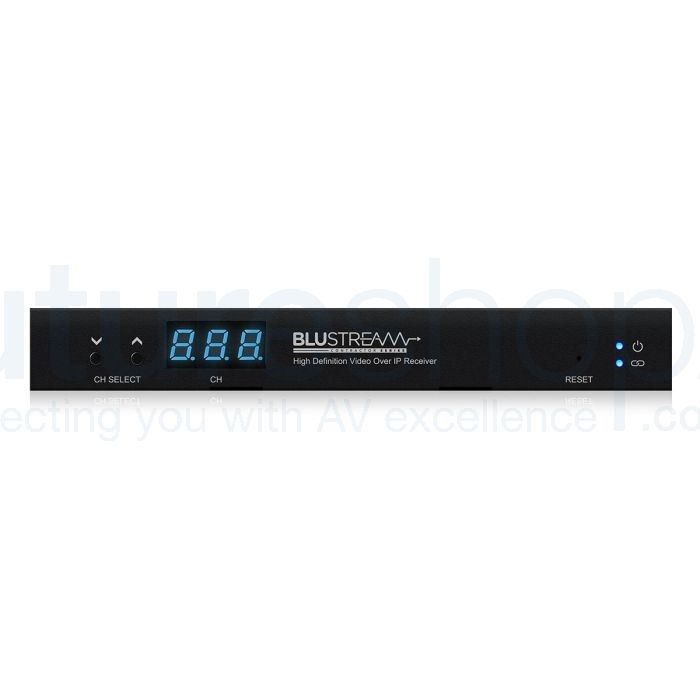

Blustream IP50HD-RX Contractor Series HD Video Receiver

£396.00 £330.00
SKU
IP50HD-RX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The IP50HD-TX is the new upgrade on Blustream's previous Video-over-IP product, and is compatible with the existing ACM200 control module and software. It can operate as matrix distribution when used with a network switch, or as a one-to-one HDMI extender without one. This product is also designed to be used with a compatible receiver.
promotional_banner_4
promotional_banner_4

Blustream IP50HD-RX Contractor Series HD Video Receiver over 1Gb Network, Built-in Video Scaler, Bi-directional IR, RS-232 & USB/KVM, PoE and Analogue Audio Breakout



Introducing the Blustream IP50HD-RX Contractor Series HD Video Receiver over 1Gb Network, the perfect complement to Blustream's Video-over-IP solutions. Designed for compatibility with the existing ACM200 control module and software, this receiver takes high-definition video distribution to the next level. With its versatile operation modes and advanced features, the IP50HD-RX ensures seamless integration into both commercial and residential installations.

As part of the Contractor Series HD distribution platform, the IP50HD-RX enables the distribution of AV and control signals over a 1Gb network. It is an industry-leading 1080p HDMI video scaling receiver that utilizes H.265 compression technology to transmit HDMI, Bi-directional IR, RS-232, and USB/KVM signals over standard network architecture, with impressive lengths of up to 100m.

Flexibility is a key feature of the IP50HD-RX. It supports both unicast transmission over unmanaged networks and multicast transmission for large managed networks, catering to various network setups. Multiple configuration options allow you to tailor the setup to suit your specific requirements.

One standout feature of the IP50HD-RX is its built-in video scaler. This scaler allows for the inclusion of displays with differing resolution capabilities, ensuring compatibility and optimal viewing experiences. The receiver delivers stunning visual quality with support for up to 1080p 60Hz video output.

Signal management is made easy with the IP50HD-RX, as it provides independent routing of IR, RS-232, USB/KVM, and video/audio signals. This comprehensive signal control ensures seamless communication and interaction with your AV system. The receiver can be powered via PoE (Power over Ethernet) from a PoE switch, eliminating the need for additional power sources. In cases where PoE is unavailable, a local 12V 1A power supply can be used to power the receiver (not included).

The IP50HD-RX is HDCP 1.4 compliant and features advanced EDID management, ensuring secure content transmission and hassle-free integration with various display devices. It also offers analogue L/R audio breakout, providing additional flexibility for audio integration.

The IP50HD-RX supports two operational modes to suit your specific requirements. In matrix distribution mode, a 1Gb network switch is required, enabling seamless distribution of video and control signals. On the other hand, the one-to-one HDMI extender mode allows for a direct connection between the transmitter and receiver, eliminating the need for a network switch.

Experience the power of advanced HD video distribution with the Blustream IP50HD-RX Contractor Series HD Video Receiver over a 1Gb Network. With its exceptional features, including built-in video scaling, versatile signal management, and flexible operation modes, this receiver is the perfect solution for professional AV installations.





Features



  • Advanced HD video, control and KVM over network infrastructure

  • Extends HDMI up to a distance of 100m over a single CAT cable

  • Supports unicast transmission over unmanaged networks

  • Supports multicast transmission for large managed networks

  • In-built video scaler to allow for inclusion of displays with differing resolution capabilities (1080p max)

  • Supports up to 1080p 60Hz video output

  • Supports PCM 2.0 channel audio only

  • Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio

  • PoE (Power over Ethernet) to power Blustream products from PoE switch

  • HDCP1.4 compliant with advanced EDID management

  • Analogue L/R audio breakout

  • Local 12V 1A power supply should Ethernet switch not support PoE (not included)

  • Features 2 operational modes:

    • Matrix distribution (requires 1Gb network switch)

    • One-to-one HDMI extender (no network switch required)



Specification



  • Video Input Connectors: 1 x LAN RJ45 connector,

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, locking

  • Audio Output Connectors: 1 x 3-pin Phoenix connector

  • Ethernet port: 1x LAN RJ45 connector (video extension)

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Device Ports: 2 x USB-Type A

  • IR Input ports: 1 x 3.5mm stereo jack

  • IR Output ports: 1 x 3.5mm mono jack

  • Mounting kit included

  • Dimensions (W x D x H): 190mm x 95mm x 25mm

  • Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)



Box Contents

  • 1 x IP50HD-RX
  • 1 x IR Receiver
  • 1 x IR Emitter
  • 1 x Mounting Kit
  • 4 x Rubber Feet



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.





  • Video Input Connectors: 1 x LAN RJ45 connector,

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, locking

  • Audio Output Connectors: 1 x 3-pin Phoenix connector

  • Ethernet port: 1x LAN RJ45 connector (video extension)

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Device Ports: 2 x USB-Type A

  • IR Input ports: 1 x 3.5mm stereo jack

  • IR Output ports: 1 x 3.5mm mono jack

  • Mounting kit included

  • Dimensions (W x D x H): 190mm x 95mm x 25mm

  • Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)



Box Contents

  • 1 x IP50HD-RX
  • 1 x IR Receiver
  • 1 x IR Emitter
  • 1 x Mounting Kit
  • 4 x Rubber Feet
