Blustream IP300UHD-WP-TX IP Multicast HDMI 2.0 & USB-C Video Wallplate Transmitter

£828.00 £690.00
SKU
IP300UHD-WP-TX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Blustream IP300UHD-WP-TX is a high-performance video wallplate transmitter that distributes 4K HDMI 2.0 and USB-C video over a 1Gb network with virtually no latency and supports a range of up to 100m. It offers advanced features such as HDR, Dolby Vision, PoE functionality, and independent routing of RS-232, USB/KVM, audio, and video, making it ideal for flexible, scalable, and high-quality video installations in both commercial and residential settings.

promotional_banner_4
promotional_banner_4

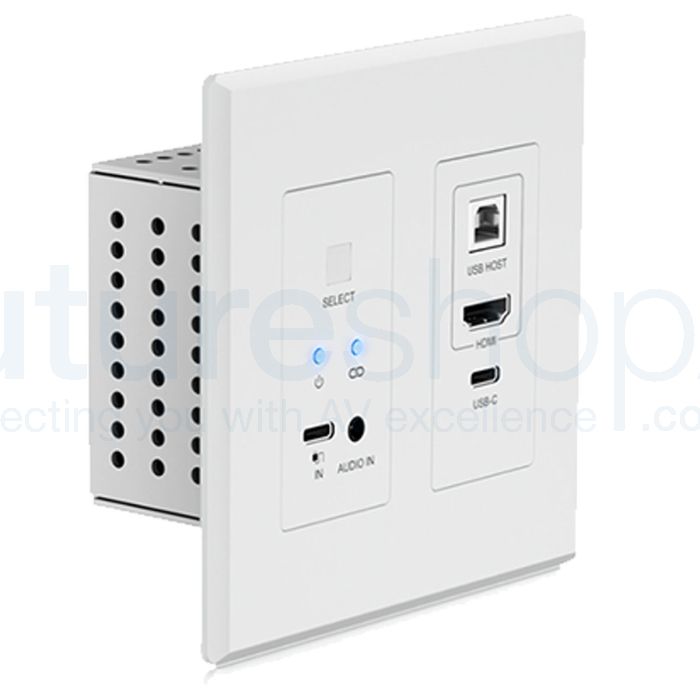

Blustream IP300UHD-WP-TX IP Multicast HDMI 2.0 & USB-C Video Wallplate Transmitter



The Blustream IP300UHD-WP-TX IP Multicast HDMI 2.0 & USB-C Video Wallplate Transmitter is an industry-leading solution for distributing HDMI video over a 1Gb Managed Network. With virtually no latency and a range of up to 100m, this product offers unbeatable performance and flexibility for both commercial and residential installations.

Designed with the latest technology, the IP300UHD-WP-TX provides advanced 4K HDMI 2.0 video over a 1Gb network, allowing for virtually unlimited system size. This means you can easily expand and customise your video distribution system as needed. The transmitter also supports HDR, HDR10+ and Dolby Vision for stunning visual quality, as well as all known HDMI audio formats, including Dolby Atmos and DTS-HD Master Audio.

One of the key benefits of this product is its advanced signal management capabilities. It allows for independent routing of RS-232, USB/KVM, audio, and video, giving you complete control over your system. Plus, with PoE (Power over Ethernet) functionality, you can power the transmitter directly from your network switch for a clean and clutter-free installation. And if your switch doesn't support PoE, you can easily power the transmitter locally using the included 24V power supply.

The IP300UHD-WP-TX is also incredibly versatile, offering multiple configuration options that cater to different needs. You can use it for matrix distribution, video walls, one-to-one or one-to-many HDMI extension, all without the need for a network switch. This makes it a cost-effective solution that can adapt to your changing requirements.

In addition, the IP300UHD-WP-TX is HDCP 2.2 compliant and features advanced EDID management, ensuring seamless compatibility with your devices. And with its dual US Decora faceplate surround and backbox compatibility, it can seamlessly integrate into any interior design.



Features:

  • Advanced 4K HDMI 2.0 video over 1Gb Network
  • Virtually unlimited system size
  • Extends HDMI or USB-C up to a distance of 100m over a single CAT cable
  • Manual and / or auto source switching of inputs
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports HDR, HDR10+ & Dolby Vision
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing of RS-232, USB/KVM, audio and video
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • Local 24V power supply (should Ethernet switch not support PoE)
  • HDCP 2.2 compliant with advanced EDID management
  • Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX / RX products
  • Dual US Decora faceplate surround and backbox compatibility
  • Our IP300 Series Multicast system features flexible deployment options including:
    • Matrix distribution (requires 1Gb network switch)
    • Video wall (requires 1Gb network switch)
    • One-to-one HDMI extender (no network switch required)
    • One-to-many HDMI extender (no network switch required)



Specification

  • Video input: 1 x HDMI Type A, female, 1 x USB Type C female
  • Video output: 1 x LAN RJ45 connector
  • Audio input: 1 x 3.5mm stereo jack
  • Ethernet port: 1 x LAN RJ45 connector
  • USB Charge port: 1 x USB Type C female
  • USB/KVM Port: 1 x USB-Type B
  • RS-232 serial port: 1 x 3-Pin Phoenix connector
  • Debug Mode: 2-step switch
  • Casing Dimensions (W x H x D): 90mm x 106mm x 52mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 115mm x 115mm x 6mm
  • Backbox Mounting Depth: 45mm
  • Shipping Weight (Kit): 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: PoE 24V 1A DC



Box Contents

  • 1 x IP300UHD-WP-TX
  • 1 x Dual US Decora Faceplate (plastic) with backbox screws



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video input: 1 x HDMI Type A, female, 1 x USB Type C female
  • Video output: 1 x LAN RJ45 connector
  • Audio input: 1 x 3.5mm stereo jack
  • Ethernet port: 1 x LAN RJ45 connector
  • USB Charge port: 1 x USB Type C female
  • USB/KVM Port: 1 x USB-Type B
  • RS-232 serial port: 1 x 3-Pin Phoenix connector
  • Debug Mode: 2-step switch
  • Casing Dimensions (W x H x D): 90mm x 106mm x 52mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 115mm x 115mm x 6mm
  • Backbox Mounting Depth: 45mm
  • Shipping Weight (Kit): 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: PoE 24V 1A DC
