Blustream IP300UHD-TX IP Multicast HDMI 2.0 Video Transmitter
£683.00 £569.17
SKU
IP300UHD-TX
Free UK Delivery
5 Years
New
24 hours
The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network. Featuring full interoperability with the IP350UHD product line where Dante is required, the IP300UHD-TX is an industry leading 4K HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
promotional_banner_4
promotional_banner_4

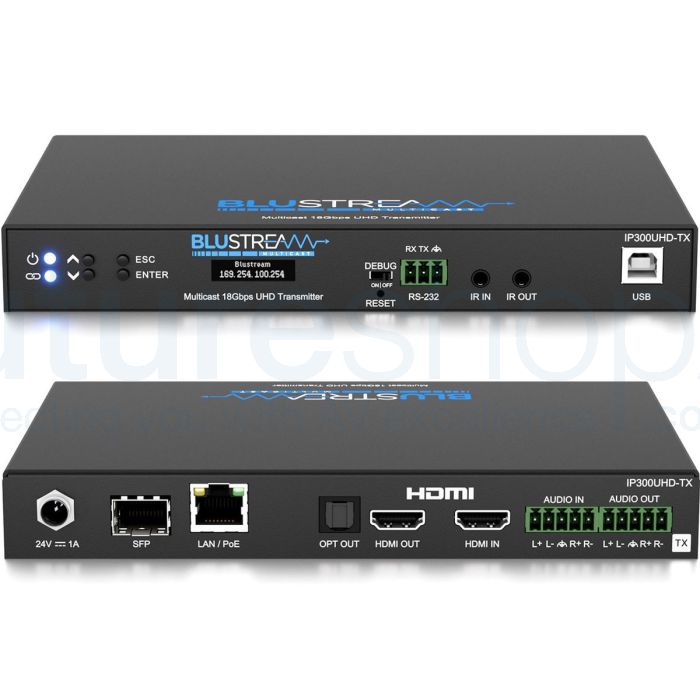

Blustream IP300UHD-TX IP Multicast HDMI 2.0 Video Transmitter
The Blustream IP300UHD-TX IP Multicast HDMI 2.0 Video Transmitter is a highly versatile and advanced 4K HDMI transmitter offering many features and benefits. With virtually latency-free distribution of 4K 18Gbps HDMI video over a 1Gb managed network, this transmitter is ideal for a range of applications.
One of the key benefits of the IP300UHD-TX is its ability to extend HDMI up to a distance of 100m over a single CAT cable, with the option of using an in-built fibre SFP network interface for even greater distances. This makes it ideal for large-scale installations where multiple displays need to be connected over long distances.
The transmitter also supports up to 4K UHD 60Hz 4:4:4, HDR including Dolby Vision LLM, and all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission. This ensures that the highest quality video and audio signals are maintained throughout the distribution network.
Advanced signal management features allow for independent routing of IR, RS-232, USB/KVM, audio, and video signals, while PoE (Power over Ethernet) enables the transmitter to be powered directly from the network switch. HDCP 2.2 compliance and advanced EDID management ensure seamless integration with a wide range of devices, while an OLED front panel display provides advanced system information and manual configuration options.
Other key features include audio breakout to optical (S/PDIF) and analogue L/R audio outputs, balanced/unbalanced analogue audio input for replacing HDMI-embedded audio, and compatibility with the Blustream IP300UHD-RX and IP350UHD-TX/RX products. With four operational modes available, including matrix distribution and video wall, the Blustream IP300UHD-TX is a highly flexible and versatile solution for a wide range of applications.
Here is what Blustream say about the IP300UHD-TX
The Blustream IP300 series Multicast distribution platform allows latency-free (1 frame) 4K 18Gbps HDMI video distribution over a 1Gb managed network. Featuring full interoperability with the IP350UHD product line where Dante is required, the IP300UHD-TX is an industry-leading 4K HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface. The unit can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.
Features
- Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
- Virtually unlimited system size
- Extends HDMI up to a distance of 100m over a single CAT cable
- SFP port for signal distribution over fibre
- Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
- Supports up to 4K UHD 60Hz 4:4:4
- Supports HDR including Dolby Vision LLM
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
- PoE (Power over Ethernet) to power Blustream unit from PoE switch
- HDCP 2.2 compliant with advanced EDID management
- Audio breakout to optical (S/PDIF) and analogue L/R audio outputs, supporting both balanced and unbalanced audio signals
- Balanced/unbalanced analogue audio input for replacing the HDMI embedded audio with a different audio signal
- OLED front panel display for advanced system information and manual configuration
- Optional 24V power supply (should Ethernet switch not support PoE)
- Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
- IP300/350 Multicast platform features 4 operational modes:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
Specification
- Video Input: 1 x HDMI Type A, female
- Video Output: 1 x LAN RJ45 connector, 1 x SFP connector, 1 x HDMI Type A, female
- Audio Input: 1 x 5-pin Phoenix connector
- Audio Output: 1 x 5-pin Phoenix connector, 1 x Optical (S/PDIF)
- Ethernet Port: 1 x LAN RJ45 connector
- Fibre Port: 1 x SFP connector (fibre module not supplied)
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- USB/KVM Port: 1 x USB2.0-type B for KVM
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Dimensions (W x D x H ): 190mm x 128mm x 25mm
- Packaging Dimensions (W x D x H): 260mm x 180mm x 55m
- Unit Weight: 0.75kg
- Power Consumption: 8W (max)
- Shipping Weight: 0.8kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
Box Contents
- 1 x IP3000UHD-TX
- 1 x IRR Receiver
- 1 x IRE1 Emitter
- 2 x Audio 5-pin Phoenix Connector
- 1 x Serial 3-pin Phoenix Connector
- 1 x Mounting Kit
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
Specification
- Video Input: 1 x HDMI Type A, female
- Video Output: 1 x LAN RJ45 connector, 1 x SFP connector, 1 x HDMI Type A, female
- Audio Input: 1 x 5-pin Phoenix connector
- Audio Output: 1 x 5-pin Phoenix connector, 1 x Optical (S/PDIF)
- Ethernet Port: 1 x LAN RJ45 connector
- Fibre Port: 1 x SFP connector (fibre module not supplied)
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- USB/KVM Port: 1 x USB2.0-type B for KVM
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Dimensions (W x D x H ): 190mm x 128mm x 25mm
- Packaging Dimensions (W x D x H): 260mm x 180mm x 55m
- Unit Weight: 0.75kg
- Power Consumption: 8W (max)
- Shipping Weight: 0.8kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
Box Contents
- 1 x IP3000UHD-TX
- 1 x IRR Receiver
- 1 x IRE1 Emitter
- 2 x Audio 5-pin Phoenix Connector
- 1 x Serial 3-pin Phoenix Connector
- 1 x Mounting Kit
