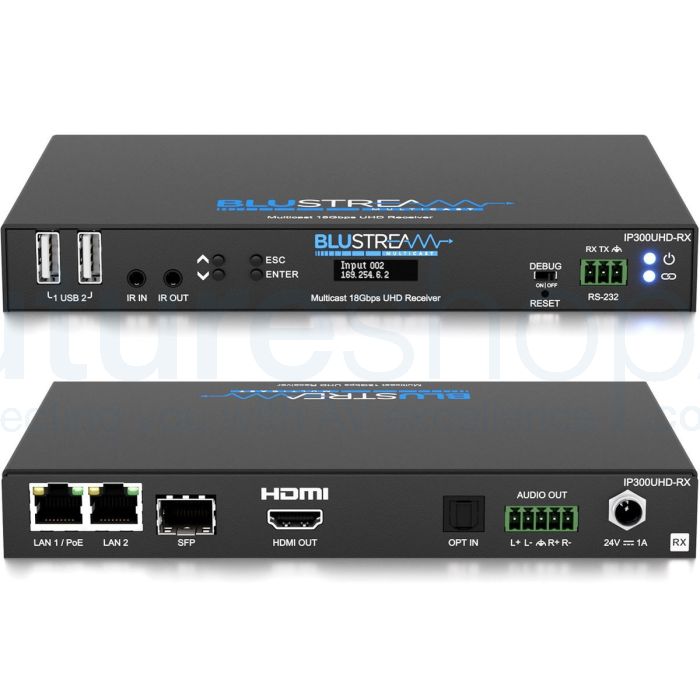

Blustream IP300UHD-RX IP Multicast HDMI 2.0 Video Receiver
£737.00 £614.17
SKU
IP300UHD-RX
Free UK Delivery
5 Years
New
24 hours
The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network. Featuring full interoperability with the IP350UHD product line, the IP300UHD-RX is an industry leading 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
promotional_banner_4
promotional_banner_4
Blustream IP300UHD-RX IP Multicast HDMI 2.0 Video Receiver
Looking for a high-quality 4K video distribution solution that offers virtually latency-free streaming? Look no further than the Blustream IP300UHD-RX IP Multicast HDMI 2.0 Video Receiver! This industry-leading product allows you to distribute 4K 18Gbps HDMI video over a 1Gb managed network, thanks to advanced compression technology that delivers high-quality video and audio up to distances of 100m over standard copper network architecture. And if you need to go even further, the in-built fibre SFP network interface allows for even greater distances.
What's more, the IP300UHD-RX is fully interoperable with other products in the IP350UHD line, so you can easily integrate it into your existing setup. With its advanced signal management capabilities, including bi-directional IR, RS-232, USB/KVM, and more, you can control your video and audio with ease, no matter where you are.
And with a full 18Gbps HDMI scaling chipset on-board, this receiver allows you to adjust the HDMI output to lower resolutions, making it ideal for use with legacy displays or videowalls. Plus, the unit can be powered via PoE from your network switch, or locally if your switch doesn't support PoE.
So if you're looking for a versatile, flexible, and high-performance video distribution solution, the Blustream IP300UHD-RX IP Multicast HDMI 2.0 Video Receiver is the perfect choice!
Here is what Blustream say about the IP300UHD-RX
The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network.
Featuring full interoperability with the IP350UHD product line, the IP300UHD-RX is an industry leading 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
The IP300UHD-RX features a second RJ45 LAN port for daisy chaining the HDMI signal onto further IP300UHD-RX units.
With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K. The scaling capabilities of this unit also allow for videowalls to be created where needed.
The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.
With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.
Features
- Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
- Virtually unlimited system size
- Extends HDMI up to a distance of 100m over a single CAT cable
- SFP port for signal distribution over fibre
- Supports up to 4K UHD 60Hz 4:4:4
- Supports HDR including Dolby Vision LLM
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
- PoE (Power over Ethernet) to power Blustream unit from PoE switch
- HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
- Analogue L/R audio output support both balanced and unbalanced audio signals
- LAN loop-out for one-to-many extender mode
- OLED front panel display for advanced system information and manual configuration
- Optional 24V power supply (should Ethernet switch not support PoE)
- Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
- Features 4 operational modes:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
Specification
- Video Input: 1 x LAN RJ45 connector, 1 x SFP connector
- Video Output: 1 x HDMI Type A, female, 1 x LAN RJ45 connector
- Audio Input: 1 x Optical (S/PDIF)
- Audio Output: 1 x 5-pin Phoenix connector
- Ethernet Port: 2 x LAN RJ45 connector
- Fibre Port: 1 x SFP connector (fibre module not supplied)
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- USB/KVM Port: 2 x USB2.0-type B for KVM
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Dimensions (W x D x H ): 190mm x 128mm x 25mm
- Packaging Dimensions (W x D x H): 260mm x 180mm x 55m
- Unit Weight: 0.75kg
- Power Consumption: 9W (max)
- Shipping Weight: 1kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
Box Contents
- 1 x IP3000UHD-RX
- 1 x IRR Receiver
- 1 x IRE1 Emitter
- 1 x Audio 5-pin Phoenix Connector
- 1 x Serial 3-pin Phoenix Connector
- 1 x Mounting Kit
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
Specification
- Video Input: 1 x LAN RJ45 connector, 1 x SFP connector
- Video Output: 1 x HDMI Type A, female, 1 x LAN RJ45 connector
- Audio Input: 1 x Optical (S/PDIF)
- Audio Output: 1 x 5-pin Phoenix connector
- Ethernet Port: 2 x LAN RJ45 connector
- Fibre Port: 1 x SFP connector (fibre module not supplied)
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- USB/KVM Port: 2 x USB2.0-type B for KVM
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Dimensions (W x D x H ): 190mm x 128mm x 25mm
- Packaging Dimensions (W x D x H): 260mm x 180mm x 55m
- Unit Weight: 0.75kg
- Power Consumption: 9W (max)
- Shipping Weight: 1kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
Box Contents
- 1 x IP3000UHD-RX
- 1 x IRR Receiver
- 1 x IRE1 Emitter
- 1 x Audio 5-pin Phoenix Connector
- 1 x Serial 3-pin Phoenix Connector
- 1 x Mounting Kit
