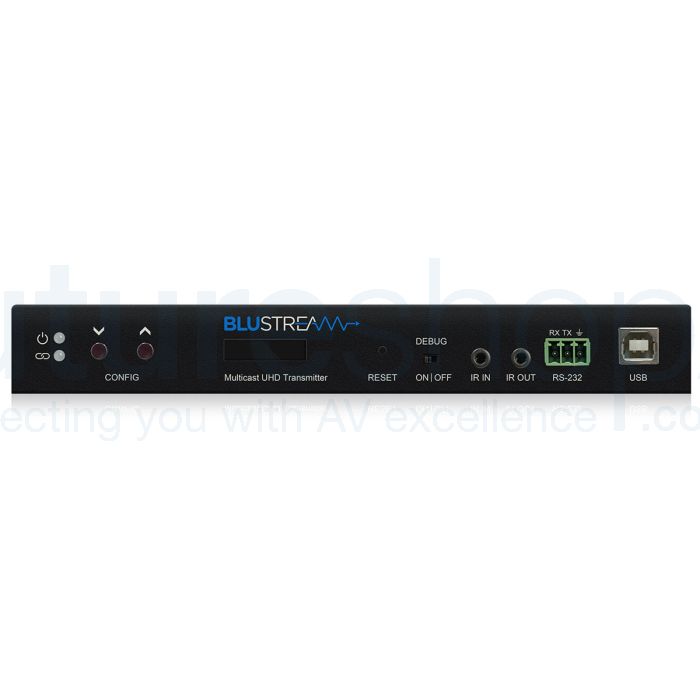

Blustream IP250UHD-TX IP Multicast UHD Video Transmitter
£834.00 £695.00
SKU
IP250UHD-TX
Free UK Delivery
5 Years
New
24 hours
Compatible with the pre-existing IP200 products, the IP250UHD-TX is capable of transmitting 4K HDCP 2.2 HDMI signals losslessly up to distances of 100m using HDMI or Ethernet, and even further using its SFP output! The IP250UHDTX also features Dante integration and can be powered locally or via PoE from the network switch.
Related Products
promotional_banner_4
promotional_banner_4
Blustream IP250UHD-TX IP Multicast UHD Video Transmitter over 1Gb Network, HDMI Loop-out, 2ch Dante Audio Transmitter/Receiver, Dual RJ45 & SFP Network Ports, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2
Experience the cutting-edge technology of the Blustream IP250UHD-TX IP Multicast UHD Video Transmitter over a 1Gb Network. This powerful transmitter is designed to deliver flawless 4K HDCP 2.2 HDMI signals with utmost clarity and precision. Its advanced features and versatility make it the perfect solution for commercial and residential installations.
The IP250UHD-TX is fully compatible with the existing IP200 platform, allowing you to seamlessly integrate it with your pre-existing setup. This transmitter utilizes visually lossless compression technology to transmit HDMI, bi-directional IR, RS-232, and USB/KVM signals up to a distance of 100m over standard network architecture. Moreover, its in-built fibre SFP port enables even greater transmission distances.
With its dual RJ45 network ports, the IP250UHD-TX provides flexible signal distribution options. You have the freedom to configure these ports for independent or combined HDMI and Dante signal distribution, allowing for a truly customized audiovisual experience. Additionally, the unit can be powered via PoE from the network switch or locally if PoE is not available, ensuring convenience and flexibility in power management.
Immerse yourself in the world of Ultra HD with the IP250UHD-TX. It supports up to 4K HDR UHD video sources, including resolutions such as 3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0. HDR input at 4K 30/25/24Hz is also supported, providing stunning visual detail and vibrant colours.
The IP250UHD-TX offers exceptional audio capabilities as well. With its in-built 2-channel Dante transmitter, you can easily extract audio from the HDMI source or local analogue audio input. The in-built 2-channel Dante receiver allows for audio embedding onto the HDMI signal or breakout to local analogue audio output. Furthermore, the transmitter supports all known HDMI audio formats, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission.
Enjoy seamless signal management with the IP250UHD-TX. It enables independent routing of IR, RS-232, USB/KVM, audio, and video, giving you full control over your audiovisual setup. The OLED front panel display offers advanced system information and manual configuration, ensuring a user-friendly experience.
With its versatile operational modes, the IP250UHD-TX caters to various setup requirements. It can function as a matrix distribution system, a video wall controller, or a one-to-one or one-to-many HDMI extender, depending on your needs.
Experience the future of audiovisual distribution with the Blustream IP250UHD-TX IP Multicast UHD Video Transmitter. This transmitter sets a new standard for audiovisual excellence with its advanced features, exceptional performance, and seamless integration capabilities. Elevate your entertainment and presentation experiences with the IP250UHD-TX.
Features
- Advanced UHD video over 1Gb Network
- Operates as a stand-alone system, or together with existing IP200UHD products
- Virtually unlimited system size
- Extends HDMI and Dante up to a distance of 100m over a single CAT cable
- Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
- SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
- Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports HDR input @ 4K 30/25/24Hz
- Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
- In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
- In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
- Analogue L/R audio embedding
- Analogue L/R audio outputs support both balanced and unbalanced audio signals
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
- OLED front panel display for advanced system information and manual configuration
- PoE (Power over Ethernet) to power Blustream products from PoE switch
- HDCP 2.2 compliant with advanced EDID management
- Local 24V 1A power supply should Ethernet switch not support PoE (not included)
- Features 4 operational modes:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
Specification
- Video input: 1 x HDMI Type A, female
- Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, female
- Audio input:1 x 5-pin Phoenix connector
- Audio Output Connectors: 1 x 5-pin Phoenix connector
- Ethernet port: 2 x LAN RJ45 connector
- Fibre Port: 1 x SFP connector (fibre module not supplied)
- RS-232 serial port: 1 x 3-pin Phoenix connector
- USB/KVM Port: 1 x USB-Type B
- IR input: 1 x 3.5mm stereo jack
- IR output: 1 x 3.5mm mono jack
- Firmware Update: 1 x Micro-USB
- Mounting kit included
Box Contents
- 1 x IP250UHD-TX
- 1 x IR Receiver
- 1 x IR Emitter
- 1 x Serial 3-pin Phoenix Connector
- 1 x Mounting Kit
- 1 x Quick Reference Guide
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
- Video input: 1 x HDMI Type A, female
- Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, female
- Audio input:1 x 5-pin Phoenix connector
- Audio Output Connectors: 1 x 5-pin Phoenix connector
- Ethernet port: 2 x LAN RJ45 connector
- Fibre Port: 1 x SFP connector (fibre module not supplied)
- RS-232 serial port: 1 x 3-pin Phoenix connector
- USB/KVM Port: 1 x USB-Type B
- IR input: 1 x 3.5mm stereo jack
- IR output: 1 x 3.5mm mono jack
- Firmware Update: 1 x Micro-USB
- Mounting kit included
Box Contents
- 1 x IP250UHD-TX
- 1 x IR Receiver
- 1 x IR Emitter
- 1 x Serial 3-pin Phoenix Connector
- 1 x Mounting Kit
- 1 x Quick Reference Guide
