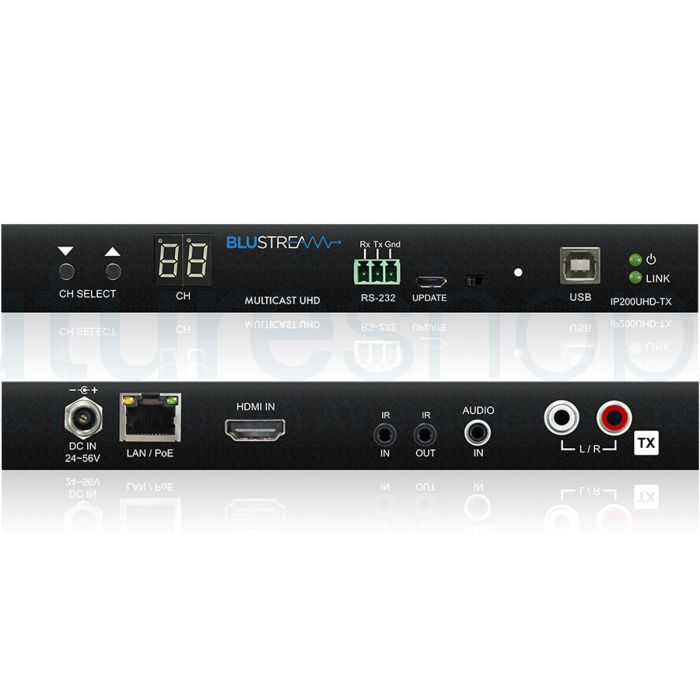

Blustream IP200UHD-TX IP Multicast UHD Video Transmitter over 1GB Network

£523.00 £435.83
SKU
IP200UHD-TX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
promotional_banner_4
promotional_banner_4

Blustream IP Multicast UHD Video Transmitter over 1GB Network with Bi-directional IR



Introducing the IP200UHD-TX, Blustream's UHD Multicast distribution platform, providing virtually latency-free distribution of HDMI video over a 1GB network switch. This industry-leading 4K HDCP 2.2 HDMI transmitter uses visually lossless compression technology to deliver HDMI, bi-directional IR, RS-232 & USB/KVM up to distances of 100m over standard network architecture.

With advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video, the IP200UHD-TX supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) and all known HDMI audio formats, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission.

The IP200UHD-TX features PoE (Power over Ethernet) to power Blustream products from a PoE switch, making it a convenient and cost-effective solution. This device can be locally powered should the switch not support PoE. The IP200UHD-TX is HDCP2.2 compliant with advanced EDID management and features analogue L/R audio embedding and breakout.

With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations. The IP200UHD-TX offers four operational modes, including matrix distribution (requires 1GB network switch), video wall (requires 1GB network switch), one-to-one HDMI extender (no network switch required), and one-to-many HDMI extender (no network switch required).

If you're looking for advanced UHD video over 1GB Network with bi-directional IR, RS-232 & USB/KVM, the Blustream IP Multicast UHD Video Transmitter over 1GB Network with Bi-directional IR is the perfect solution.



Features: Advanced UHD video over 1Gb Network

  • Virtually unlimited system size
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP2.2 compliant with advanced EDID management
  • Analogue L/R audio embedding
  • Analogue L/R audio breakout
  • Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
  • Features 4 operational modes:
    • Matrix distribution (requires 1GB network switch)
    • Video wall (requires 1GB network switch)
    • One-to-one HDMI extender (no network switch required)
    • One-to-many HDMI extender (no network switch required)





Specification: Video input: 1x HDMI Type A, female

  • Video output: 1x LAN RJ45 connector
  • Audio input:1x 3.5mm L/R Analogue audio
  • Audio output connectors: 2x RCA L/R Analogue audio
  • Ethernet port: 1x LAN RJ45 connector
  • RS-232 Serial port: 1x 3-Pin Phoenix connector
  • USB/KVM Port: 1x USB - Type B
  • IR input: 1x 3.5mm stereo jack
  • IR output: 1x 3.5mm mono jack
  • Firmware Update: 1x Micro-USB
  • Mounting kit included
  • Dimensions (W x D x H ): 190mm x 114mm x 25mm
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification:Video input: 1x HDMI Type A, female

  • Video output: 1x LAN RJ45 connector
  • Audio input:1x 3.5mm L/R Analogue audio
  • Audio output connectors: 2x RCA L/R Analogue audio
  • Ethernet port: 1x LAN RJ45 connector
  • RS-232 Serial port: 1x 3-Pin Phoenix connector
  • USB/KVM Port: 1x USB - Type B
  • IR input: 1x 3.5mm stereo jack
  • IR output: 1x 3.5mm mono jack
  • Firmware Update: 1x Micro-USB
  • Mounting kit included
  • Dimensions (W x D x H ): 190mm x 114mm x 25mm
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
