The Blustream HMX88-18G AV Matrix stands out as an unparalleled solution for distributing uncompressed HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 signals using advanced HDBaseT™3 technology, enabling seamless transmission of HDMI, bi-directional IR & RS-232, ARC/Optical S/PDIF audio return, 1Gb Ethernet, and PoC over distances up to 100m via a single CAT6A cable.

promotional_banner_4
promotional_banner_4

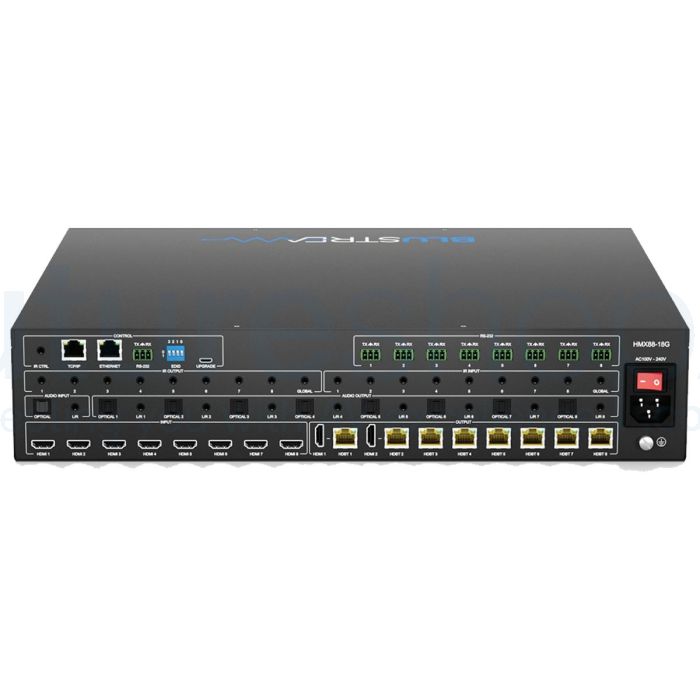

Blustream HMX88-18G 8x8 4K HDBaseTTM3 AV Matrix with ARC



The Blustream HMX88-18G AV Matrix stands out as an unparalleled solution for distributing uncompressed HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 signals using advanced HDBaseT™3 technology, enabling seamless transmission of HDMI, bi-directional IR & RS-232, ARC/Optical S/PDIF audio return, 1Gb Ethernet, and PoC over distances up to 100m via a single CAT6A cable.

With support for the latest HDR resolutions including HDR10/10+ and Dolby Vision, this matrix ensures unparalleled picture quality for critical viewing areas. Its advanced features include simultaneous HDBaseT™/HDMI outputs on selected ports, video smart scaling, and a robust 26x8 audio matrix with ARC and Optical audio return.

The matrix offers an intuitive web browser interface for easy control and configuration, along with pass-through functionality for RS-232, IR, and Ethernet, facilitating seamless integration with third-party control systems. With support for bi-directional IR and RS-232 on all HDBaseT™ outputs, PoC capability for compatible receivers, and advanced EDID management, this matrix guarantees exceptional performance and versatility.



Key Features

  • Advanced uncompressed, unconverted, HDMI over HDBaseT™3 technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
  • Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs
  • Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
  • Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
  • 26x8 Audio Matrix independently controllable from video.
  • Audio source inputs include:
    • 8 x audio breakout from HDMI source inputs
    • 8 x audio breakout from zone outputs
    • 8 x audio return from zone outputs**
    • 1 x Optical and 1x Analogue audio input
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
  • Web interface module for control and configuration of the Matrix
  • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
  • Control via front panel, IR, iOS / Android App, RS-232 and TCP/ IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
  • Advanced EDID management and HDCP 2.3 compliant



Connectivity

  • Video Input Connectors: 8 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors
  • Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)
  • Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo jack), 8 x Optical (S/PDIF)
  • RS-232 Serial Port: 9 x 3-pin phoenix connector
  • TCP/IP Control Port: 1 x RJ45, female
  • Ethernet Passthrough Port: 1 x RJ45, female
  • IR Input Ports: 10 x 3.5mm stereo jack
  • IR Output Ports: 9 x 3.5mm mono jack
  • Product Upgrade Port: 1 x Micro USB, female



Specification

  • Rack Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet)
  • Dimensions Including Connections (W x H x D): 443mm x 88mm x 405mm
  • Shipping Weight: 10.5kg
  • Operating Temperature: 23°F to 131°F (-5°C to +55°C)
  • Storage Temperature: -13°F to 158°F (-25°C to +70°C)
  • Power Supply: Internal 100-240V AC
  • HDBaseTTM Power Output: 24V DC 0.75A per port



Included Accessories

  • IEC Power Cable(s)
  • 1 x Serial Cable - DB9 to 3-pin phoenix
  • 1 x IR Control Cable - 3.5mm-3.5mm
  • 8 x IR Emitters
  • 9 x IR Receivers
  • 1 x Remote Control
  • 1 x Rack Mounting Kit



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Rack Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet)
  • Dimensions Including Connections (W x H x D): 443mm x 88mm x 405mm
  • Shipping Weight: 10.5kg
  • Operating Temperature: 23°F to 131°F (-5°C to +55°C)
  • Storage Temperature: -13°F to 158°F (-25°C to +70°C)
  • Power Supply: Internal 100-240V AC
  • HDBaseTTM Power Output: 24V DC 0.75A per port
