Blustream HEX70CS-TX 70m HDBaseT™ Transmitter

£267.00 £222.50
SKU
HEX70CS-TX
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's HEX70CS-TX HDMI 2.0 4K60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ transmitter offers market leading features and outstanding value utilising CSC technology with video down conversion. The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC (Power over Cable) up to lengths of 70m (4K 40m) to a compatible receiver or matrix.
promotional_banner_4
promotional_banner_4

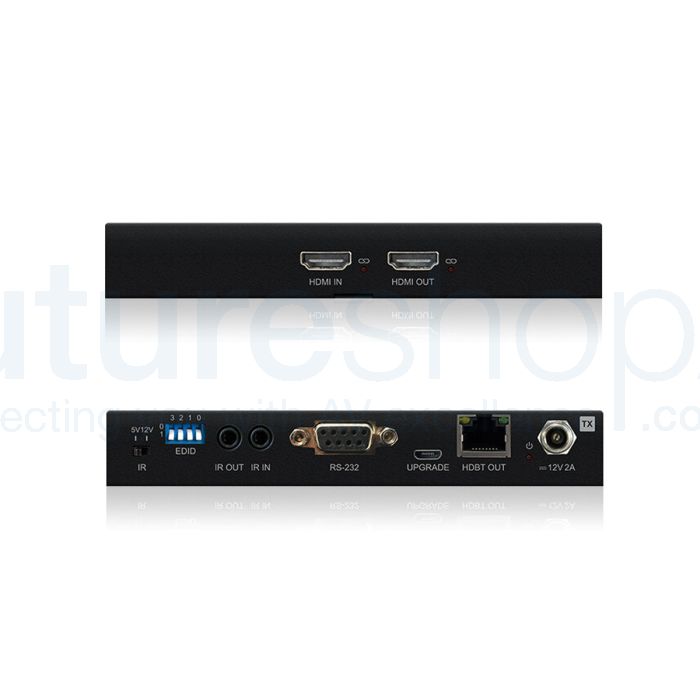

Blustream HEX70CS-TX 70m HDBaseT™ Transmitter



The Blustream HEX70CS-TX HDBaseT™ Transmitter is a feature-rich, value-packed solution utilising advanced CSC technology with video down conversion. This transmitter's impressive capabilities sets the industry standard for performance and reliability.

Designed to extend HDMI signals over a single CAT cable, the HEX70CS-TX transmitter leverages HDBaseT™ technology to seamlessly transmit video and audio. This efficient distribution method simplifies installation and eliminates the need for multiple cables, ensuring a clean and organized setup.

With support for HDMI 2.0 and the 18Gbps bandwidth specification, including HDR (High Dynamic Range), the transmitter delivers exceptional video quality with resolutions up to 4K at 60Hz 4:4:4. Enjoy stunning visuals and vibrant colours that bring your content to life.

The HEX70CS-TX transmitter extends HDMI signals up to 70m for 1080p video and up to 40m for 4K UHD video. This enables flexible placement of displays and devices, providing freedom in designing your audiovisual system according to your specific requirements.

In addition to video extension, the transmitter facilitates bi-directional IR (Infrared) and RS-232 pass-through. This allows you to control connected devices from both the transmitter and receiver locations, enhancing convenience and streamlining your control setup.

The HEX70CS-TX transmitter features a convenient HDMI loop-out, enabling you to integrate local displays or cascade the signal to multiple devices. This flexibility empowers you to create multi-display installations or utilize local monitoring while maintaining optimal signal integrity.

Enjoy comprehensive audio format support, including Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio transmission. Immerse yourself in high-quality sound and ensure an engaging audio experience to complement your stunning visuals.

To accommodate various installation scenarios, the transmitter offers HDCP 2.2 support, ensuring seamless content transmission and compatibility with protected media sources.

Experience the power and versatility of the Blustream HEX70CS-TX HDBaseT™ Transmitter, offering advanced features and exceptional value. Unlock the full potential of your audiovisual system and enjoy reliable performance that exceeds industry standards.



Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC)
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through
  • Supports bi-directional IR pass-through with switchable
  • 5V/12V IR hardware support
  • HDCP 2.2 support



Colour Space Conversion (CSC) Technology in HDBaseT™

Due to the data rate of HDBaseT™ technology being capped at 10.2Gbps, it is unable to pass the latest native 4K UHD resolutions of 4K 60Hz 4:4:4. There is now a requirement to integrate video resolutions with data speeds up to 18Gbps across a multi-zone AV environment. Blustream have implemented CSC (Colour Space Conversion) technology into our latest products to ensure 4K HDR signals can now be supported over the limited infrastructure of HDBaseT™. Colour Space Conversion reduces the data rate of the HDMI signal by converting the colour space from 4:4:4 or 4:2:2 to a lower format. Within Colour Space Conversion technology the native resolution and frame rate remain constant from end to end. The only part of the signal that is converted during transmission is the colour. Blustream CSC products do not support HDR10+ or the dynamic variation of Dolby Vision due to the way these specific variations of dynamic HDR (dHDR) are encoded. These codecs transmit repeated metadata packets throughout the transmission of any media making it impossible at this stage to convert in the same way using CSC technology.



Specification

  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID DIP Switch: 4-pin
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Shipping Weight: 1.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting Kit Included

Box Contents

  • 1 x HEX70CS-TX
  • 1 x Mounting Kit



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.





  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID DIP Switch: 4-pin
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Shipping Weight: 1.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting Kit Included

Box Contents

  • 1 x HEX70CS-TX
  • 1 x Mounting Kit
