Blustream HEX70CS-RX HDBaseT™ CSC Receiver Supporting HDMI2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m)

£217.00 £180.83
SKU
HEX70CS-RX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's HEX70CS-RX HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ Receiver offers market leading features and outstanding value utilising CSC technology.
promotional_banner_4
promotional_banner_4

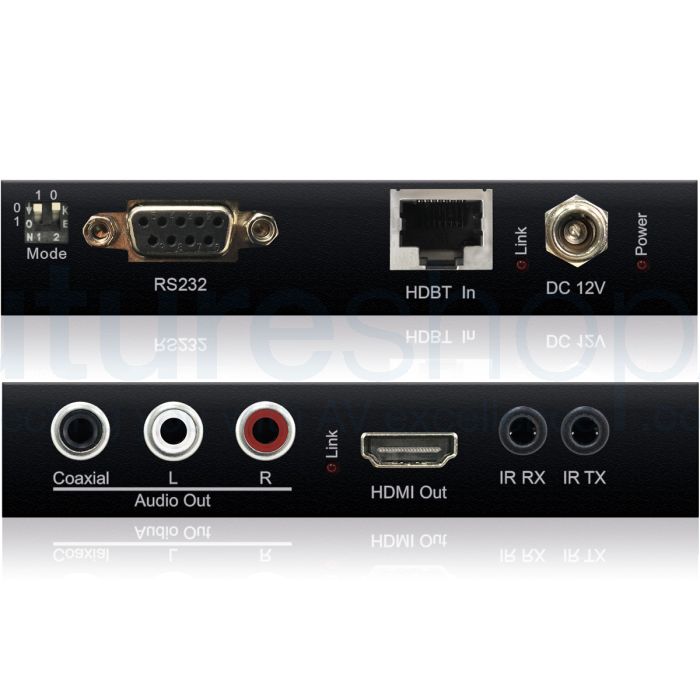

Blustream HEX70CS-RX HDBaseT™ CSC Receiver Supporting HDMI2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m)



Blustream's HEX70CS-RX HDBaseT™ CSC Receiver is the perfect complement to your HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ Extender Set, offering unbeatable market-leading features and outstanding value utilising CSC technology. The product extends HDMI, bi-directional IR & RS-232 and bi-directional PoH (PoE) up to lengths of 70m (4K 40m). The receiver features simultaneous analogue stereo and digital coax audio breakout, allowing you to get the most out of your audio and video content.

This receiver is designed with advanced HDBaseT™ technology that allows for the distribution of video and audio over a single CAT cable, simplifying your installation and reducing clutter. It also features advanced Colour Space Conversion (CSC) that supports HDMI2.0 18Gbps specification, including HDR, so you can enjoy high-quality, true-to-life colours and an immersive viewing experience.

With support for 4K 60Hz 4:4:4 UHD video up to 40m and HDMI 1080p video up to 70m, the HEX70CS-RX is capable of meeting all your industry standard video resolutions needs, including VGA-WUXGA and 480i-4K. It also supports all known digital HDMI audio formats, including Dolby TrueHD, Atmos, DTS-HD Master Audio and DTS:X transmissions, so you can enjoy your favourite content with the highest-quality audio possible.

Additionally, this receiver comes equipped with an HDMI loop-out on the HEX70CS-TX, allowing for easy integration of local displays or cascading to multiple devices. It also features HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility and handshaking issues, so you can enjoy seamless viewing experiences. And with bi-directional RS-232 and IR pass-through, advanced EDID management, and HDCP2.2 compliance, you can be sure that this receiver will meet all your connectivity needs. The product also comes with a Blustream 5V IR receiver and emitter, making it easy to control your devices remotely.

In summary, the Blustream HEX70CS-RX HDBaseT™ CSC Receiver is a powerful and versatile device that offers market-leading features and outstanding value. With advanced HDBaseT™ technology, advanced Colour Space Conversion (CSC), and support for all industry-standard video resolutions and known digital HDMI audio formats, this receiver is the perfect choice for anyone who wants to enjoy high-quality audio and video content with ease.





Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR pass through
  • Supplied with Blustream 5V IR receiver and emitter
  • Advanced EDID management
  • HDCP2.2 compliant



Specification

  • Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)
  • IR Output ports: 1x 3.5mm mono jack
  • IR Input ports: 1x 3.5mm stereo jack
  • RS-232 serial port: 1x DB-9 female
  • Video Output Connectors: 1x HDMI Type A, female
  • Video Input Connectors: 1x HDBaseT™ RJ45 connector
  • Power Supply: 12V / 2A DC, screw type connector (not supplied)
  • Power Consumption: 5.6W
  • Unit Dimensions (WxDxH): 113 x 124 x 22mm (without connections)
  • Unit Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
  • Unit Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): TBC
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kit included

Contents

  • 1x HEX70CS-RX
  • 1x Mounting kit



Blustream 4K60Hz 4:4:4 Feature Icon Blustream HDBaseT Feature Icon Blustream HD Audio Feature Icon
Blustream 3D Feature Icon Blustream EDID Feature Icon Blustream PoE Feature Icon
Blustream CSC Feature Icon Blustream HDCP2.2 Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)
  • IR Output ports: 1x 3.5mm mono jack
  • IR Input ports: 1x 3.5mm stereo jack
  • RS-232 serial port: 1x DB-9 female
  • Video Output Connectors: 1x HDMI Type A, female
  • Video Input Connectors: 1x HDBaseT™ RJ45 connector
  • Power Supply: 12V / 2A DC, screw type connector (not supplied)
  • Power Consumption: 5.6W
  • Unit Dimensions (WxDxH): 113 x 124 x 22mm (without connections)
  • Unit Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
  • Unit Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): TBC
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kit included

Contents

  • 1x HEX70CS-RX
  • 1x Mounting kit
