Blustream HEX18G-KIT Advanced HDBaseT™ Extender Kit
£669.00 £557.50
SKU
HEX18G-KIT
Free UK Delivery
5 Years
New
24 hours
Request Price MatchThe HEX18G-Kit by Blustream is the first extender set using the new VS3000 HDBaseT chipset, which means totally uncompressed HDMI 2.0 4k 60Hz 4:4:4 over distances up to 100m over a single CAT6A cable! This kit also features bi-directional PoC (power over cable), meaning that only one of the units needs to be connected to a power source.
promotional_banner_4
promotional_banner_4
Blustream HEX18G-KIT Advanced HDBaseT™ Extender Kit Supporting Uncompressed and Unconverted HDMI 2.0 4K 60Hz 4:4:4 up to 100m, Bi-directional IR, HDCP 2.3
Experience unparalleled HDMI extension capabilities with the Blustream HEX18G-KIT Advanced HDBaseT™ Extender Kit. This cutting-edge kit utilizes the latest VS3000 HDBaseT chipset to deliver uncompressed and unconverted HDMI 2.0 4K 60Hz 4:4:4 signals over distances of up to 100m using a single CAT6A cable. With bi-directional IR support and HDCP 2.3 compatibility, this extender kit sets a new standard in high-quality video distribution.
Blustream's HEX18G-KIT is an industry-leading solution that ensures the transmission of uncompressed HDMI 2.0 4K 60Hz 4:4:4 signals. This means you can enjoy the ultimate picture quality, including HDR10/10+ and Dolby Vision support, delivering vibrant and lifelike visuals in your critical viewing areas.
Enjoy the convenience of extended reach with the HEX18G-KIT. It supports HDMI video distribution up to 100m, providing flexibility in configuring your audiovisual setup. Whether you're extending signals for home theatres, commercial installations, or other applications, this extender kit delivers impressive performance.
The HEX18G-KIT supports all industry-standard video resolutions, including VGA-WUXGA and 480i-4K. Its HDMI re-clocking feature on the HDBaseT™ Receiver helps solve common HDMI HDCP, compatibility, and handshaking issues, ensuring seamless signal transmission.
Immerse yourself in an exceptional audio experience with the HEX18G-KIT. It supports all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission. This ensures that you can enjoy high-quality sound to match the stunning visuals.
Experience seamless control and integration with the HEX18G-KIT. It features bi-directional IR and RS-232 pass-through, allowing you to control your devices remotely. The kit has a Blustream IR receiver and emitter, further enhancing your control capabilities.
Simplify your installation setup with the bi-directional PoC (Power over Cable) feature of the HEX18G-KIT. This means that only one of the extender units needs to be connected to a power source, reducing cable clutter and providing a hassle-free installation experience.
The HEX18G-KIT supports HDCP 2.3, HDCP 2.2, and HDCP 1.4, ensuring compatibility with a wide range of devices. With Blustream's commitment to delivering exceptional performance, this extender kit is designed to exceed your expectations.
Note: The transmission distance of up to 100m is subject to the video format, cable type, and installation environment. To maximize performance, it is recommended to use a minimum of CAT6A cabling, guaranteeing optimal signal transmission.
Features
- Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit for bit 4K HDMI video and audio over a single CAT6A cable
- Supports HDMI 2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
- Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
- Supports HDMI video distribution up to 100m*
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional IR & RS-232 pass through
- Supplied with Blustream IR receiver and emitter
- Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
Specification

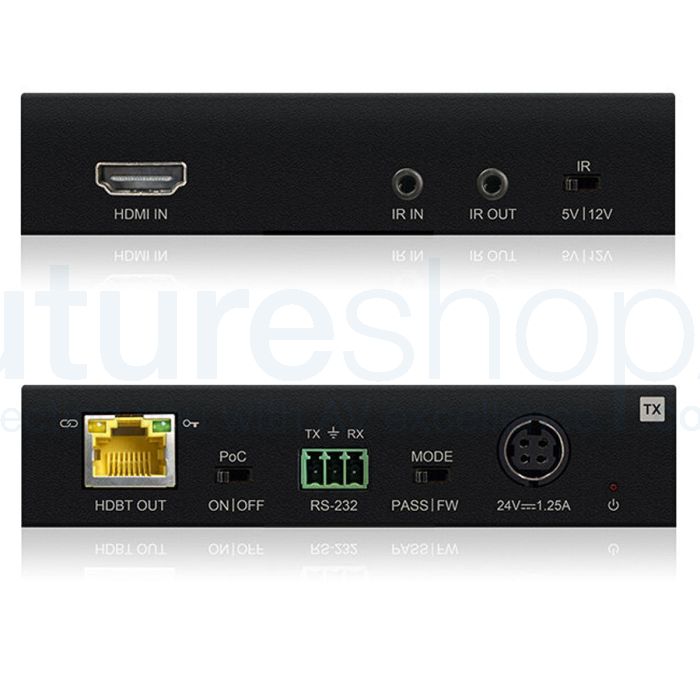

HEX18G-TX
- Video Input Connectors: 1x HDMI Type A, female
- Video Output Connectors: 1x HDBaseT™ RJ45 connector
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- RS-232 serial port: 1x 3-pin Phoenix connector
- Power Supply: 1x 24V/1.25A DC
HEX18G-RX
- Video Input Connectors: 1x HDBaseT™ RJ45 connector
- Video Output Connectors: 1x HDMI Type A, female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- RS-232 serial port: 1x 3-pin Phoenix connector
- Power Supply: 1x 24V/1.25A DC
- Casing Dimensions (W x D x H ): 95mm x 116mm x 24mm (TX and RX)
- Shipping Weight (Kit): 1.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
- Power Supply: 1x 24V/1.25A DC
*Transmission distance is subject to video format, cable type, and installation environment. It is recommended to use a minimum of F/UTP CAT6A cabling.
Box Contents
- 1 x HEX18G-TX Transmitter
- 1 x HEX18G-RX Receiver
- 1 x 24V/1.25A DC power supply
- 1 x IRE1 receiver
- 1 x IRR emitter
- 2 x Mounting brackets
- 1 x Quick Reference Guide
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
HEX18G-TX
- Video Input Connectors: 1x HDMI Type A, female
- Video Output Connectors: 1x HDBaseT™ RJ45 connector
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- RS-232 serial port: 1x 3-pin Phoenix connector
- Power Supply: 1x 24V/1.25A DC
HEX18G-RX
- Video Input Connectors: 1x HDBaseT™ RJ45 connector
- Video Output Connectors: 1x HDMI Type A, female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- RS-232 serial port: 1x 3-pin Phoenix connector
- Power Supply: 1x 24V/1.25A DC
- Casing Dimensions (W x D x H ): 95mm x 116mm x 24mm (TX and RX)
- Shipping Weight (Kit): 1.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
- Power Supply: 1x 24V/1.25A DC
*Transmission distance is subject to video format, cable type, and installation environment. It is recommended to use a minimum of F/UTP CAT6A cabling.
Box Contents
- 1 x HEX18G-TX Transmitter
- 1 x HEX18G-RX Receiver
- 1 x 24V/1.25A DC power supply
- 1 x IRE1 receiver
- 1 x IRR emitter
- 2 x Mounting brackets
- 1 x Quick Reference Guide
