Blustream HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter - HDMI, RS-232 and IR up to 70m (4K up to 40m)

£327.00 £272.50
SKU
HEX11WP-TX
Free UK Delivery
5 Years
New
24 hours
what's this?

Please select the desired colour.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

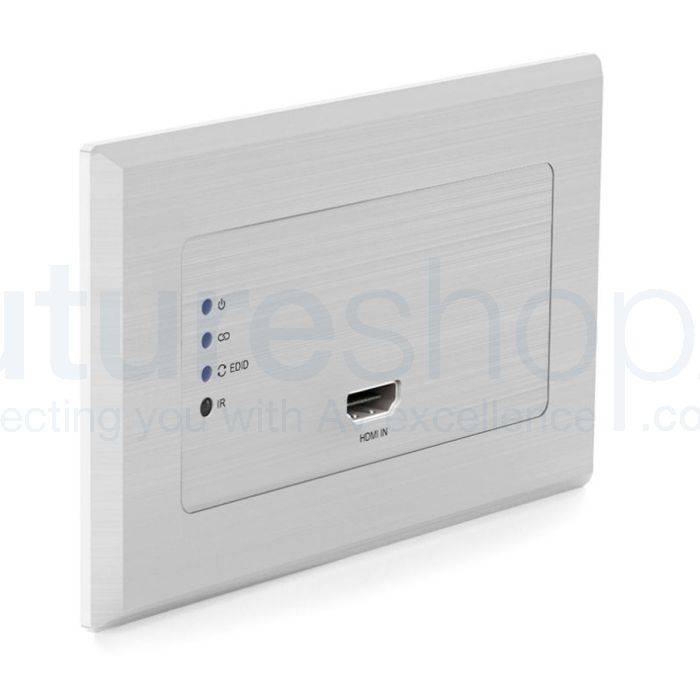

Blustream's HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0). The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.

promotional_banner_4
promotional_banner_4

Blustream HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter - HDMI, RS-232 and IR up to 70m (4K up to 40m)



The Blustream HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter is the ultimate solution for extending HDMI signals up to 70m at 1080p and 40m at 4K 60Hz 4:2:0. This transmitter employs advanced HDBaseT™ technology that distributes both video and audio over a single CAT cable, making it an ideal choice for residential, commercial, and educational applications.

The HEX11WP-TX is designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions and can be installed in both UK and European back boxes. It can be powered locally or from compatible Blustream HDBaseT™ products, making it versatile and easy to use.

The HEX11WP-TX supports all known HDMI audio formats, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission. It also features bi-directional RS-232 pass-through and IR pass-through to HDBaseT™ Receiver / Matrix device, providing you with maximum flexibility and control.

This wall plate transmitter is also HDCP 2.2 compliant, ensuring compatibility with the latest copy protection standards. The HEX11WP-TX also supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products, providing you with a reliable and efficient power solution.

With its magnetic faceplate surround, the HEX11WP-TX offers both UK and EU backbox compatibility, making it easy to install in any location. Technical performance is subject to the features supported on the connected HDBaseT™ device.

Choose the Blustream HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter for your next installation and experience the ultimate in HDMI signal extension technology.



Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Extends HDMI at 1080p up to a distance of 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products *
  • Bi-directional RS-232 pass through
  • Supports IR pass-through to HDBaseT™ Receiver / Matrix device
  • Compatible with all Blustream HDBaseT™ Receiver / Matrix products **
  • Magnetic faceplate surround allowing both UK & EU backbox compatibility
  • HDCP 2.2 support

* When powering the HEX11WP-TX locally, PoC is not passed to a connected HDBaseT™ receiver device.
** Technical performance is subject to the features supported on the connected HDBaseT™ device.



Specification

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1 x 3-Pin Phoenix connector
  • IR Input port: 1 x 3-Pin Phoenix connector
  • Local power input: 1 x 2-Pin Phoenix connector
  • Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
  • UK / EU Backbox Mounting Depth: 40mm (minimum) - not supplied
  • Shipping Weight: 2.1kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 12V/1A DC

Contents

  • 1 x HEX11WP-TX
  • 1 x 12V/1A DC Power Supply
  • 1 x Magnetic Faceplate surround
  • 1 x Quick Reference Guide



Blustream RS232 Feature Icon Blustream HDBaseT Feature Icon Blustream HDCP2.2 Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1 x 3-Pin Phoenix connector
  • IR Input port: 1 x 3-Pin Phoenix connector
  • Local power input: 1 x 2-Pin Phoenix connector
  • Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
  • UK / EU Backbox Mounting Depth: 40mm (minimum) - not supplied
  • Shipping Weight: 2.1kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 12V/1A DC

Contents

  • 1 x HEX11WP-TX
  • 1 x 12V/1A DC Power Supply
  • 1 x Magnetic Faceplate surround
  • 1 x Quick Reference Guide
