Blustream HD11CTRL-V2 HDMI In-line Controller

£320.00 £266.67
SKU
HD11CTRL-V2
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Blustream HD11CTRL-V2 HDMI In-line Controller offers comprehensive room control capabilities, automatically managing display power via CEC, RS-232, IR, or IP when a HDMI signal is detected. With external relay inputs, it integrates seamlessly with third-party triggers like sensors or switches.

promotional_banner_4
promotional_banner_4

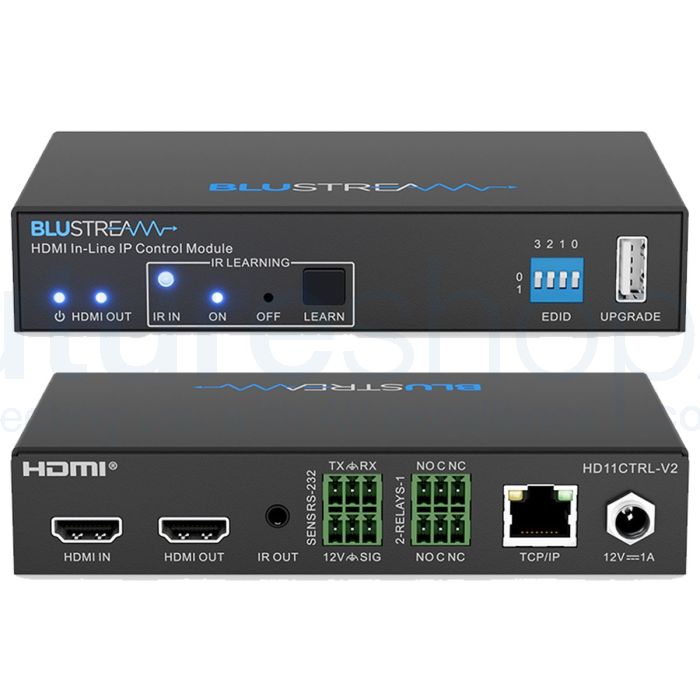

Blustream HD11CTRL-V2 HDMI In-line Controller



The Blustream HD11CTRL-V2 HDMI In-line Controller offers comprehensive room control capabilities, automatically managing display power via CEC, RS-232, IR, or IP when a HDMI signal is detected. With external relay inputs, it integrates seamlessly with third-party triggers like sensors or switches.

This controller addresses HDMI compatibility issues, supporting HDCP 2.2, clock stretching, EDID, and handshaking problems common in HDMI signal distribution, particularly with 4K content. It fully supports HDMI 2.0 and HDCP 2.2, delivering resolutions up to 4K UHD 60Hz 4:4:4 and all known HDMI audio formats.

Featuring Smart-Scale technology, it can convert 4K input signals to 1080p output, and offers automatic display control, IR learning for up to 30 IR commands, relay control for interfacing with third-party devices like projector screens, and signal sense input for connection to external devices.

The HD11CTRL-V2 also boasts HDCP 2.2 compliance with advanced EDID management and includes an in-built web-GUI for easy configuration and control, along with RS-232 port for further configuration and control options, including sending programmed commands to connected RS-232 devices.



Key Features

  • Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports resolutions up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported)
  • Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
  • Automatic display control via CEC, RS-232, IR or IP
  • IR learning up to 30 IR commands
  • Relay control for interface to third party devices such as projector screens
  • Signal sense input for connection from third party devices such as sensors or switches
  • HDCP 2.2 compliant with advanced EDID management
  • In-built web-GUI for configuration and control



Specification

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • TCP/IP Control Port: 1 x RJ45, female
  • IR Output Port: 1 x 3.5mm mono jack
  • Relay Control: 2 x 3-pin Phoenix connector
  • Sensor Input: 1 x 3-pin Phoenix connector
  • EDID Selection: 4-pin DIP Switch
  • Product Upgrade: 1 x USB Type A, female
  • Dimensions (W x H x D): 145mm x 28mm x 84mm
  • Shipping Weight: 1.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: 12V/1A DC



Package Contents

  • 1 x HD11CTRL-V2
  • 1 x 12V/1A DC Power Supply
  • 1 x IR Emitter
  • 1 x RS-232 Control Cable
  • 1 x Mounting Kit
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • TCP/IP Control Port: 1 x RJ45, female
  • IR Output Port: 1 x 3.5mm mono jack
  • Relay Control: 2 x 3-pin Phoenix connector
  • Sensor Input: 1 x 3-pin Phoenix connector
  • EDID Selection: 4-pin DIP Switch
  • Product Upgrade: 1 x USB Type A, female
  • Dimensions (W x H x D): 145mm x 28mm x 84mm
  • Shipping Weight: 1.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: 12V/1A DC
