The Blustream DA22XLR-WP Line / MIC 2+2 XLR Dante Audio Wall Plate is an ideal choice for those looking to integrate analogue audio into a digital Dante networked audio system. This versatile wall plate features two input channels of balanced/unbalanced/MIC audio with switchable 48v phantom power, and two output channels of balanced/unbalanced audio.
promotional_banner_4
promotional_banner_4

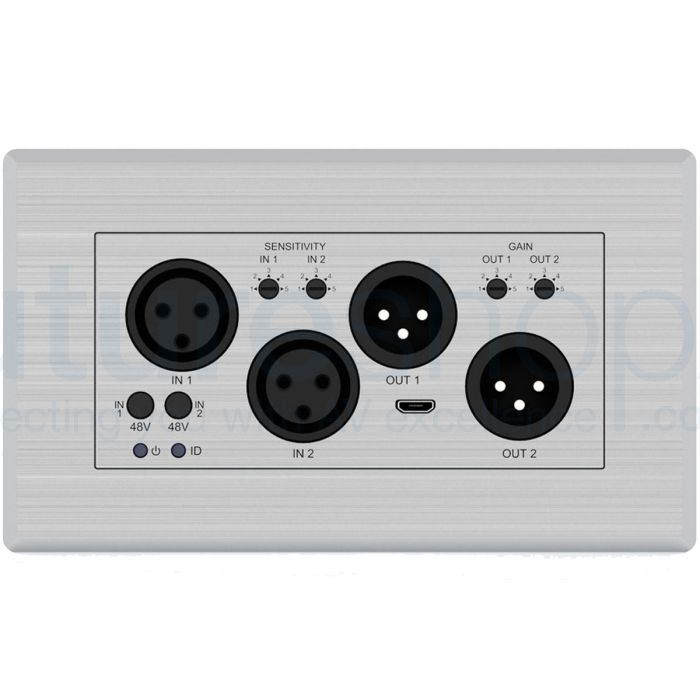

Blustream DA22XLR-WP Line / MIC 2+2 XLR Dante Audio Wall Plate



The Blustream DA22XLR-WP Line / MIC 2+2 XLR Dante Audio Wall Plate is the perfect solution for seamlessly integrating analogue audio into a digital Dante networked audio system. This feature-packed wall plate offers exceptional versatility, functionality, and convenience to meet the demands of various audio installations.

With two input channels of balanced/unbalanced/MIC audio and two output channels of balanced/unbalanced audio, the DA22XLR-WP enables effortless conversion of analogue audio sources within a Dante network. The balanced inputs and outputs ensure reliable signal transmission, while the switchable 48V phantom power provides flexibility for connecting microphones and other compatible devices.

Setting up the DA22XLR-WP is a breeze, thanks to its plug & play design. The unit can be conveniently powered using Power over Ethernet (PoE) or a 12V power supply, accommodating different installation scenarios. This flexibility ensures compatibility with existing infrastructure and simplifies the installation process.

The wall plate also supports AES67 RTP audio transport, allowing for seamless integration with other AES67-enabled devices. This compatibility ensures smooth audio transmission and facilitates interoperability within your audio network.

One standout feature of the DA22XLR-WP is its magnetic faceplate design, which offers both UK and EU backbox compatibility. This thoughtful design allows for easy installation in various locations, ensuring a neat and professional appearance.

Additional features include adjustable MIC/line sensitivity and line gain settings for precise control over audio levels. The DA22XLR-WP supports sample rates of 44.1, 48, and 96kHz at 24-bit resolution, ensuring high-quality audio reproduction. Configurable Dante device latency options (1, 2, or 5ms) further enhance flexibility and adaptability to suit your specific requirements.

For power, the wall plate features Class 0 IEEE 802.3af PoE support, enabling power supply via any PoE switch. In cases where PoE is not available, the DA22XLR-WP can be powered using a 12V DC adapter (not included), providing an alternative power option.

In summary, the Blustream DA22XLR-WP Line / MIC 2+2 XLR Dante Audio Wall Plate offers a comprehensive solution for integrating analogue audio into a digital Dante networked audio system. This wall plate delivers exceptional performance and flexibility with its multi-input/output capabilities, switchable phantom power, adjustable settings, AES67 support, and magnetic faceplate design. Upgrade your audio setup with the DA22XLR-WP and experience the benefits of seamless integration between analogue and digital audio.



Features

  • Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
  • Converts 2 x balanced/unbalanced / MIC audio sources to Dante® audio channels
  • Converts 2 x Dante® audio channels to balanced/unbalanced audio outputs
  • Switchable 48V Phantom power for each MIC XLR input
  • Adjustable MIC/line sensitivity from +24dBu to -28dBV for each XLR input
  • Adjustable line gain from +18 dBu to -10 dBV for each XLR output
  • Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 12V DC adapter (not included) for when network switch does not support PoE
  • Magnetic faceplate surround allowing for both UK & EU backbox compatibility

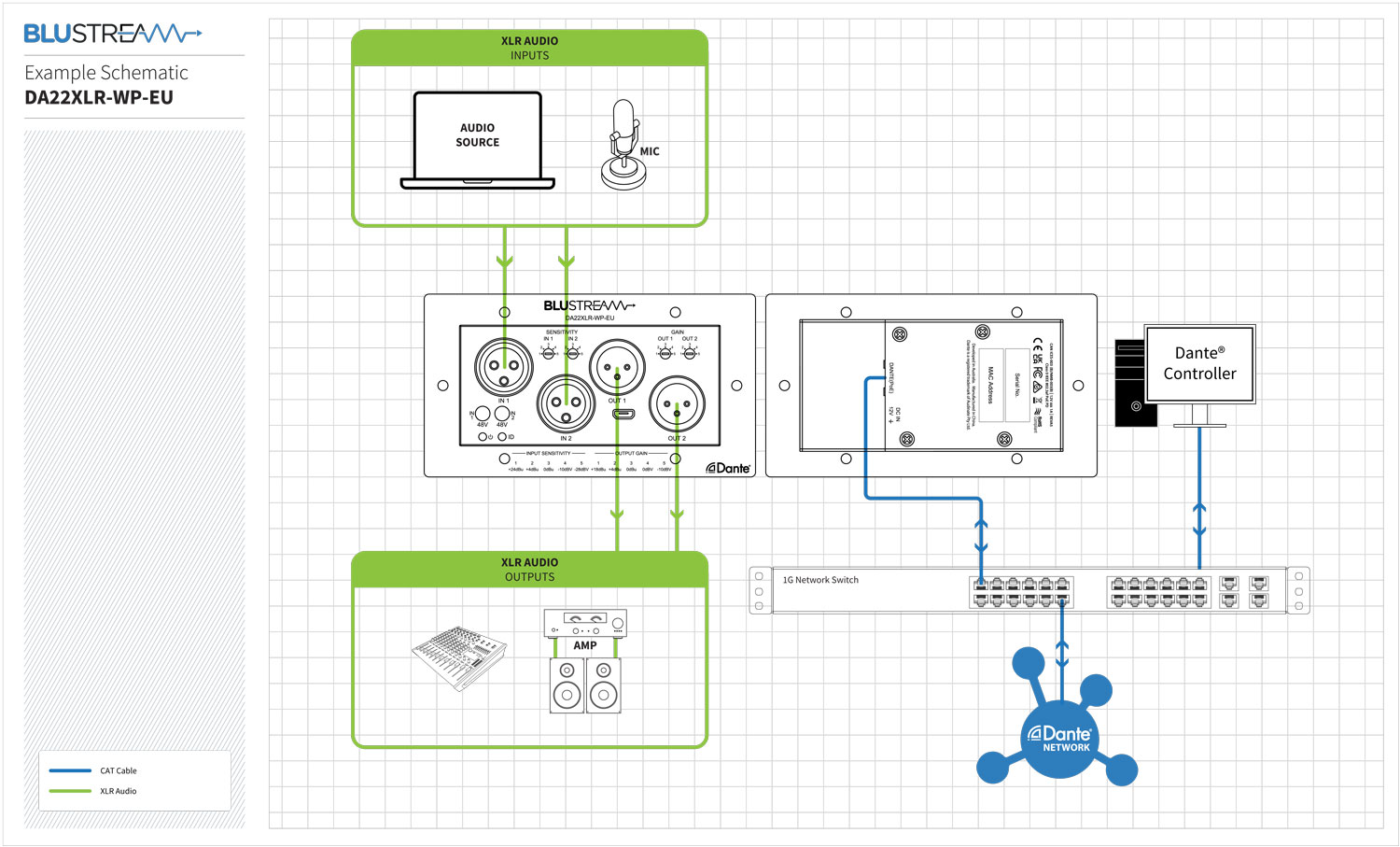

DA22XLR-WP SCHEMATIC





Specification

  • Audio Input Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
  • Audio Output Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
  • Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
  • Configuration Switches: 4 x 5 position rotary dials (Sensitivity / Gain), 2 x Push button (48V Phantom power)
  • Firmware  Upgrade: 1 x Micro-USB UART port
  • Module Dimensions (L x W x H): 136mm x 76mm x 45mm (without faceplate)
  • Faceplate Dimensions (L x W x H): 146mm x 86mm x 5mm
  • Cut Out Dimensions (L x W x H): 109mm x 50mm x 36mm
  • Mounting Hole Spacing: UK 121mm CTC, EU 60mm CTC
  • Backbox Requirements: UK double gang backbox / EU double gang backbox
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector



Box Contents

  • 1 x DA22XLR-WP
  • 1 x Magnetic Faceplate
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
