Blustream DA22DIG 2x2 Digital & Analogue Dante Converter

£341.00 £284.17
SKU
DA22DIG
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Blustream DA22DIG 2x2 Digital & Analogue Dante Converter is an ideal solution for those looking to add Dante digital audio capabilities to an existing system. The DA22DIG is incredibly versatile, allowing users to easily and quickly convert analogue or digital audio sources to a Dante signal, or decode a Dante signal back to analogue or digital audio.

promotional_banner_4
promotional_banner_4

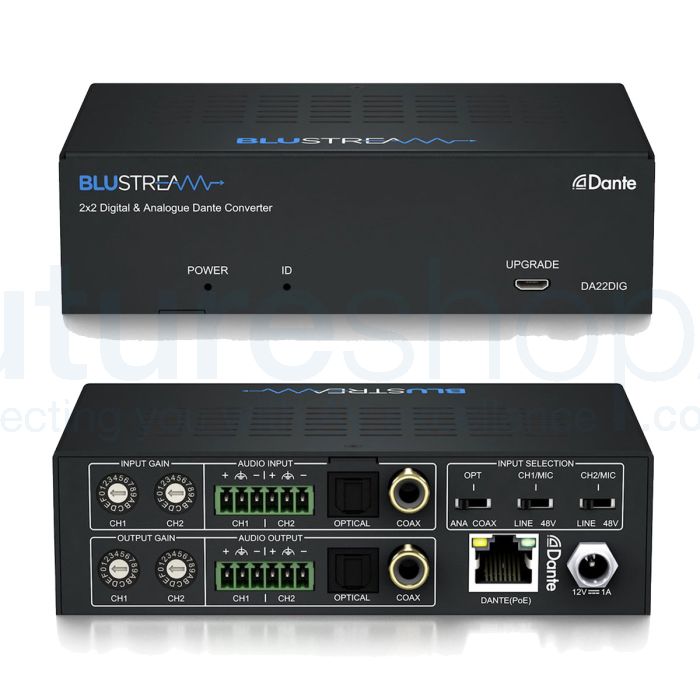

Blustream DA22DIG 2x2 Digital & Analogue Dante Converter



The Blustream DA22DIG 2x2 Digital & Analogue Dante Converter offers a comprehensive solution for integrating Dante digital audio capabilities into any existing audio system. With its versatile functionality, this converter allows users to effortlessly convert analogue or digital audio sources to a Dante signal or decode a Dante signal back to analogue or digital audio. Whether you're upgrading a professional audio setup or adding digital audio capabilities to your home system, the DA22DIG delivers outstanding performance and flexibility.

The DA22DIG is a plug & play device designed for easy installation and setup. It can be powered using PoE (Power over Ethernet) or a 12V power supply, providing convenient power options for different environments and setups. This flexibility ensures seamless integration into any audio infrastructure without the need for complex power arrangements.

This converter features analogue and digital audio connections, allowing you to choose the most suitable input and output options for your setup. The digital audio input between optical toslink and coaxial RCA inputs can be selected, providing compatibility with various digital audio sources. With its configurable MIC audio input and 48V phantom power support, the DA22DIG also caters to microphone integration, expanding its versatility for different applications.

The DA22DIG offers independent sensitivity control for input channels and gain control for output channels to achieve optimal audio performance. This level of control allows you to fine-tune and adjust the audio signals to match your specific requirements. Additionally, the converter supports sample rates of 44.1, 48, and 96kHz at 24-bit resolution, ensuring high-quality audio reproduction.

The DA22DIG is fully compatible with AES67 RTP audio transport, offering seamless integration with other AES67-enabled devices. This compatibility ensures smooth audio transmission and interoperability within your audio network.

With Class 3 IEEE 802.3af PoE support, the DA22DIG can be conveniently powered by any PoE switch, eliminating the need for additional power cables and adapters. However, if your network switch does not support PoE, the converter can also be powered using the included 12V DC adapter, providing flexibility in powering options.

In summary, the Blustream DA22DIG 2x2 Digital & Analogue Dante Converter is a versatile and reliable solution for integrating Dante digital audio into your audio system. With its encoding and decoding capabilities, analogue and digital audio support, configurable settings, and compatibility with AES67, this converter delivers exceptional performance and ease of use. Upgrade your audio setup and enjoy the benefits of Dante digital audio with the DA22DIG.



Features

  • Encodes 2ch analogue audio or digital audio to Dante® digital signal
  • Decodes a Dante® digital signal to 2ch analogue audio and digital audio
  • Selectable digital audio between optical toslink and coaxial RCA inputs
  • Configurable MIC audio input with 48V phantom power
  • Independent sensitivity control for input channels, and gain control for output channels
  • Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 3 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 12V DC adapter (supplied) for when network switch does not support PoE

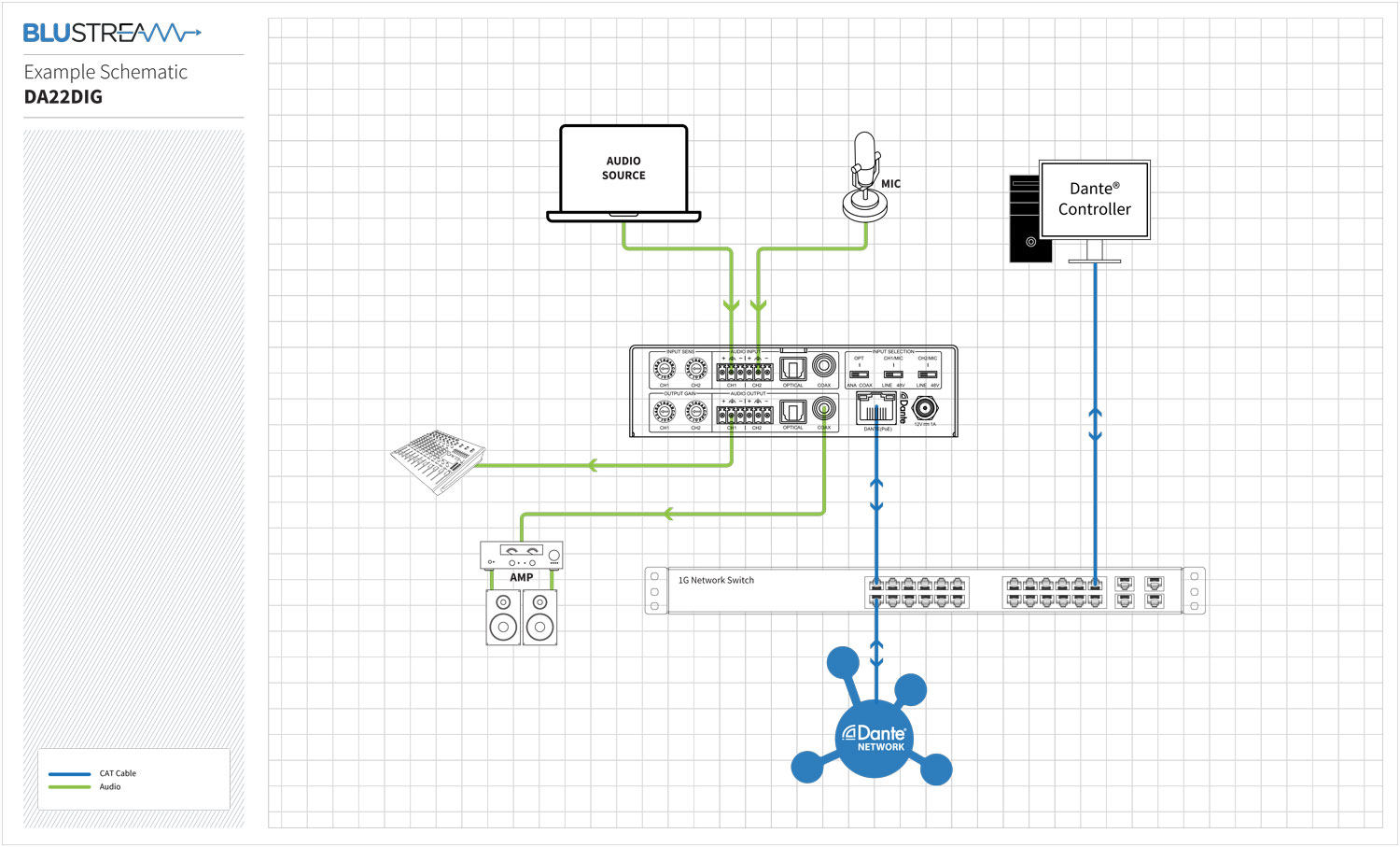

Blustream DA22DIG schematic





Specification

  • Audio Input Connectors: 2 x Analogue Balanced/Unbalanced, 6-Pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)
  • Audio Output Connectors: 2 x Analogue Balanced/Unbalanced, 6-pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)
  • Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
  • Configuration Switches: 4 x 16 Level Rotary Dials, 3 x 3-Position Switch
  • Casing Dimensions (L x W x H): 135mm x 80mm x 38mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: Class 3 IEEE 802.3af POE PD or 12V/1A DC, Screw Type Connector



Box Contents

  • 1 x DA22DIG
  • 1 x Mounting Kit
  • 1 x 12V / 1A DC Power Supply
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Audio Input Connectors: 2 x Analogue Balanced/Unbalanced, 6-Pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)
  • Audio Output Connectors: 2 x Analogue Balanced/Unbalanced, 6-pin Phoenix connector, 1 x Optical (S/PDIF), 1 x Coaxial (RCA)
  • Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
  • Configuration Switches: 4 x 16 Level Rotary Dials, 3 x 3-Position Switch
  • Casing Dimensions (L x W x H): 135mm x 80mm x 38mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: Class 3 IEEE 802.3af POE PD or 12V/1A DC, Screw Type Connector
