The Blustream CMX88CS 8x8 4K HDMI 2.0 Matrix is an exceptional choice for custom installations, providing unparalleled performance and value. With support for HDMI2.0 and HDCP2.2, it allows distribution of eight HDMI sources to eight displays, offering flexibility within a matrix configuration.

promotional_banner_4
promotional_banner_4

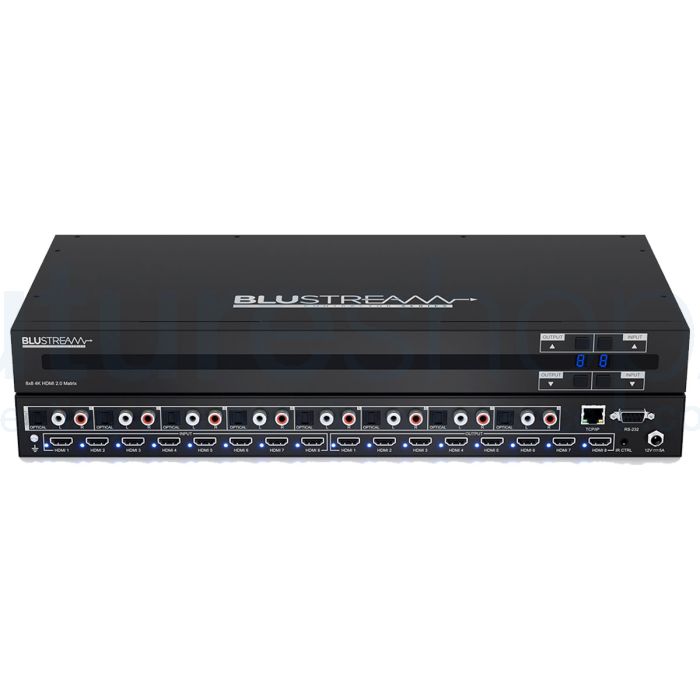

Blustream CMX88CS 8x8 4K HDMI 2.0 Matrix



The Blustream CMX88CS 8x8 4K HDMI 2.0 Matrix is an exceptional choice for custom installations, providing unparalleled performance and value. With support for HDMI2.0 and HDCP2.2, it allows distribution of eight HDMI sources to eight displays, offering flexibility within a matrix configuration.

This matrix supports all HDMI resolutions up to 4K 60Hz 4:4:4, ensuring high-quality video transmission. It features independent video down conversion on all HDMI outputs, enabling compatibility with displays that support lower 4K video resolutions while maintaining maximum resolution on other outputs.

Moreover, it caters to a wide range of industry-standard video resolutions and HDMI audio formats, including Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio transmission. The inclusion of audio breakout options further enhances its versatility.

Control and configuration are made convenient through various interfaces, including a web browser module, front panel controls, IR, RS-232, and TCP/IP. Additionally, compatibility with major home control brands via third-party drivers expands its usability.

With advanced EDID management and HDCP 2.2 compliance, the Blustream CMX88CS 8x8 4K HDMI 2.0 Matrix stands out as a comprehensive solution for demanding custom installation projects, offering reliability, flexibility, and top-notch performance.



Key Features

  • Features 8x HDMI inputs which can be independently routed to 8x HDMI outputs
  • Supports 4K UHD video including HDR (up to 4K @60Hz 4:4:4)
  • Independent video down conversion on all HDMI outputs allowing a display only capable of supporting lower 4K video resolutions (4K 60Hz 4:2:0) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to associated output analogue L/R audio and optical digital outputs concurrently
  • Web interface module for control and configuration of the Matrix
  • Control via front panel, IR, RS-232 & TCP/IP
  • 3rd party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 2.2 compliant



Specification

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Input Connectors: 8x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 8x RCA (SPDIF), 8x Analogue audio RCA (L/R)
  • RS-232 Serial Port: 1x DB-9, female
  • TCP/IP Control: 1x RJ45, female
  • IR Input Ports: 1x 3.5mm stereo jack
  • Casing Dimensions (W x D x H): 441mm x 226mm x 45mm
  • Dimensions Inc. Connections (W x D x H): 441mm x 234mm x 51mm
  • Shipping Weight: 3.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply : 12V/5A DC



Package Contents

  • 1x CMX88CS
  • 1x 12V / 5A DC power supply
  • 1x Remote control
  • 1x IR receiver
  • 1x IR control cable - 3.5mm to 3.5mm cable
  • 1x Mounting kit
  • 1x Quick reference guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Input Connectors: 8x HDMI Type A, 19-pin, female
  • Video Output Connectors: 8x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 8x RCA (SPDIF), 8x Analogue audio RCA (L/R)
  • RS-232 Serial Port: 1x DB-9, female
  • TCP/IP Control: 1x RJ45, female
  • IR Input Ports: 1x 3.5mm stereo jack
  • Casing Dimensions (W x D x H): 441mm x 226mm x 45mm
  • Dimensions Inc. Connections (W x D x H): 441mm x 234mm x 51mm
  • Shipping Weight: 3.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply : 12V/5A DC
