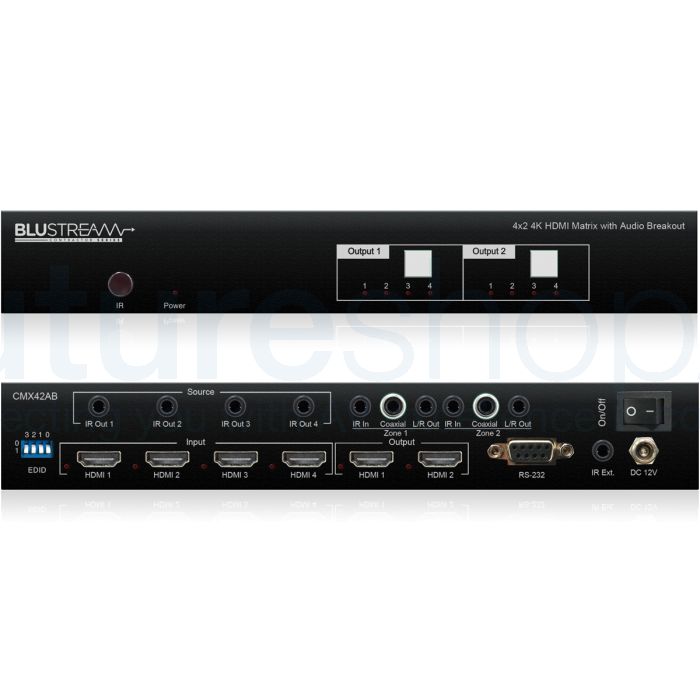

Blustream CMX42AB Contractor 4x2 HDMI2.0 4K HDCP2.2 Matrix with Audio Breakout, EDID Management and IR Routing

£412.00 £343.33
SKU
CMX42AB
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's Contractor CMX42AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.
promotional_banner_4
promotional_banner_4

Blustream CMX42AB Contractor 4x2 HDMI2.0 4K HDCP2.2 Matrix with Audio Breakout, EDID Management and IR Routing



Blustream's Contractor CMX42AB 4K HDMI Matrix is designed to meet the needs of the custom installation market with its exceptional performance and value. The matrix features four HDMI inputs that can be independently routed to two HDMI outputs, allowing all sources to be viewed in a matrix configuration. The CMX42AB supports HDMI2.0 and HDCP2.2, transmitting all HDMI resolutions up to and including 4K 60Hz 4:4:4.

In addition to its impressive video capabilities, the CMX42AB also includes audio breakout and EDID management features. This enables the transmission of all known digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio, and DTS:X. The audio can be outputted via associated output analogue L/R audio and coaxial digital outputs concurrently.

The CMX42AB can be controlled through the front panel, IR, and RS-232. The matrix also features IR routing and is supplied with Blustream 5V IR receivers and emitters. Third-party drivers are available for all major home control brands.

Advanced EDID management is another highlight of the CMX42AB, ensuring that the best possible resolution is achieved for each display in the installation. The matrix is also HDCP2.2 compliant, ensuring a secure and reliable connection for all your HDMI sources.

Whether you're looking to distribute video and audio throughout a residential or commercial installation, Blustream's Contractor CMX42AB 4K HDMI Matrix is a versatile and reliable solution.





Features

  • Features 4x HDMI inputs which can be independently routed to 2x HDMI outputs
  • Supports HDMI2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
  • Control via front panel, IR and RS-232
  • IR routing
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP2.2 compliant



Specification

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female, locking
  • Audio Output Connectors: 2x RCA (S/PDIF), 2x Analogue audio L/R (3.5mm stereo Jack)
  • RS-232 serial port: DB-9, female
  • IR Input ports: 3x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Unit Dimensions (WxDxH): 255mm x 104mm x 40mm (without feet or connections)
  • Unit Dimensions (WxDxH): 255mm x 115mm x 47mm (with feet and connections)
  • Shipping Weight: 1.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/2A DC

Contents

  • 1 x CMX42AB matrix
  • 1 x 12V/2A DC power supply
  • 1 x Remote control
  • 4 x IR emitter
  • 3 x IR receiver
  • 1 x Mounting kit
  • 1 x Quick Reference Guide



Blustream 4K Feature Icon Blustream HDCP 2.2 Feature Icon Blustream HD Audio Feature Icon
Blustream 3D Feature Icon Blustream EDID Feature Icon Blustream Audio Breakout Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female, locking
  • Audio Output Connectors: 2x RCA (S/PDIF), 2x Analogue audio L/R (3.5mm stereo Jack)
  • RS-232 serial port: DB-9, female
  • IR Input ports: 3x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Unit Dimensions (WxDxH): 255mm x 104mm x 40mm (without feet or connections)
  • Unit Dimensions (WxDxH): 255mm x 115mm x 47mm (with feet and connections)
  • Shipping Weight: 1.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/2A DC

Contents

  • 1 x CMX42AB matrix
  • 1 x 12V/2A DC power supply
  • 1 x Remote control
  • 4 x IR emitter
  • 3 x IR receiver
  • 1 x Mounting kit
  • 1 x Quick Reference Guide
