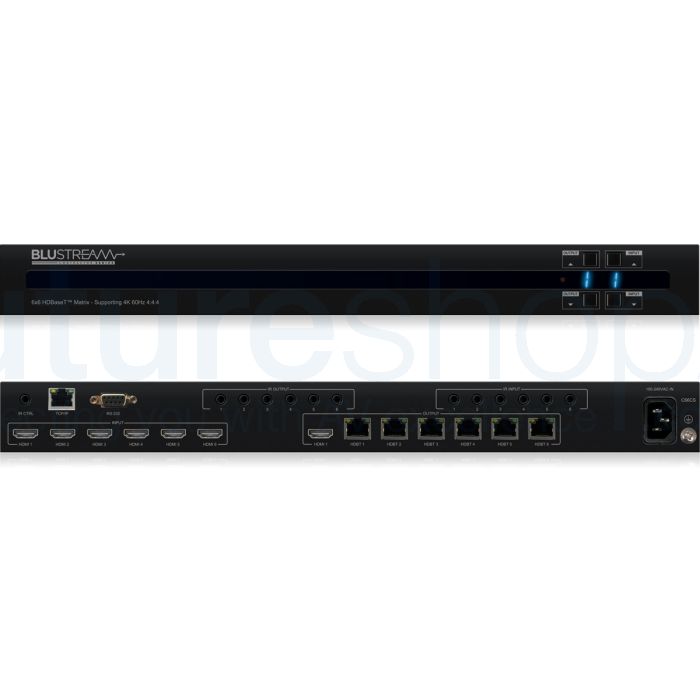

Blustream C66CS Contractor 6x6 HDBaseT™ CSC Matrix - 70m (4K up to 40m)

£2,059.00 £1,715.83
SKU
C66CS
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's Contractor 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C66CS is an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).

promotional_banner_4
promotional_banner_4

Blustream C66CS Contractor 6x6 HDBaseT™ CSC Matrix - 70m (4K up to 40m)



Blustream's Contractor 6x6 HDBaseT™ Matrix is the perfect solution for custom installations, offering unparalleled performance and value. With the C66CS Matrix, you can enjoy HDMI, bi-directional IR, and PoC transmission up to 40m over a single CAT cable and 1080p up to 70m. The C66CS is an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology*, which means that it supports advanced colour space conversion (CSC) and can handle HDMI 2.0 18Gbps specifications, including HDR.

This Matrix is packed with advanced features, including six HDMI inputs that can be independently routed to six HDBaseT™ outputs. Output 1 features simultaneous HDMI and HDBaseT™ output, while HDBaseT™ outputs support video down-conversion. This allows a display that is only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs.

The C66CS supports all industry standard video resolutions, including VGA-WUXGA and 480i-4K, and all known HDMI audio formats, such as Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission. The web interface module provides easy control and configuration of the matrix, and the matrix can be controlled via front panel, IR, RS-232 and TCP/IP.

The C66CS supports PoC (Power over Cable) to power compatible HDBaseT™ receivers and is supplied with Blustream IR receivers and emitters. Advanced EDID management and HDCP 2.2 compliance round out the impressive feature set. The recommended receiver for the C66CS is the RX70CS, where 18Gbps CSC support is required.

With a 1U design for 19" rack mount integration and a mounting kit included, the Contractor 6x6 HDBaseT™ Matrix is the ideal choice for any custom installation. Additionally, third-party drivers are available for major control brands, making integration even easier. Choose the C66CS Matrix for superior performance and value.





Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT™ outputs
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
  • Supplied with Blustream IR receivers and emitters
  • 3rd party drivers available for major control brands
  • 1U Design for 19" rack mount integration - mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Recommended receiver: RX70CS (where 18Gbps CSC support is required)



Specification

  • Video Input Connectors: 6 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connector
  • RS-232 Serial Port: 1 x DB9 Serial connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 7 x 3.5mm stereo jack
  • IR Output Ports: 6 x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Case Dimensions (without feet & connections) (W x D x H): 437mm x 377mm x 44mm
  • Case Dimensions (with feet & connections) (W x D x H): 437mm x 384mm x 53mm
  • Shipping Weight: 6.25kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: Internal 100-240V AC

Contents

  • 1 x C66CS
  • 1 x Rack Mounting Kit
  • 1 x Remote Control
  • 6 x IR Emitters
  • 7 x IR Receivers
  • 1 x RS-232 Control Cable
  • 1 x IR Control Cable - 3.5mm-3.5mm Cable
  • 1 x Quick Reference Guide
  • Power Cable(s)



Blustream 4K60Hz 4:4:4 Feature Icon Blustream HDBaseT Feature Icon Blustream HD Audio Feature Icon
Blustream 3D Feature Icon Blustream EDID Feature Icon Blustream PoE Feature Icon
Blustream CSC Feature Icon Blustream HDCP2.2 Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 6 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connector
  • RS-232 Serial Port: 1 x DB9 Serial connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 7 x 3.5mm stereo jack
  • IR Output Ports: 6 x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Case Dimensions (without feet & connections) (W x D x H): 437mm x 377mm x 44mm
  • Case Dimensions (with feet & connections) (W x D x H): 437mm x 384mm x 53mm
  • Shipping Weight: 6.25kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: Internal 100-240V AC

Contents

  • 1 x C66CS
  • 1 x Rack Mounting Kit
  • 1 x Remote Control
  • 6 x IR Emitters
  • 7 x IR Receivers
  • 1 x RS-232 Control Cable
  • 1 x IR Control Cable - 3.5mm-3.5mm Cable
  • 1 x Quick Reference Guide
  • Power Cable(s)
