Blustream AMF42AU 4x2 Advanced Multi Format Presentation Switcher

£2,256.00 £1,880.00
SKU
AMF42AU
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's AMF42AU is an advanced 4K 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT™ output.

promotional_banner_4
promotional_banner_4

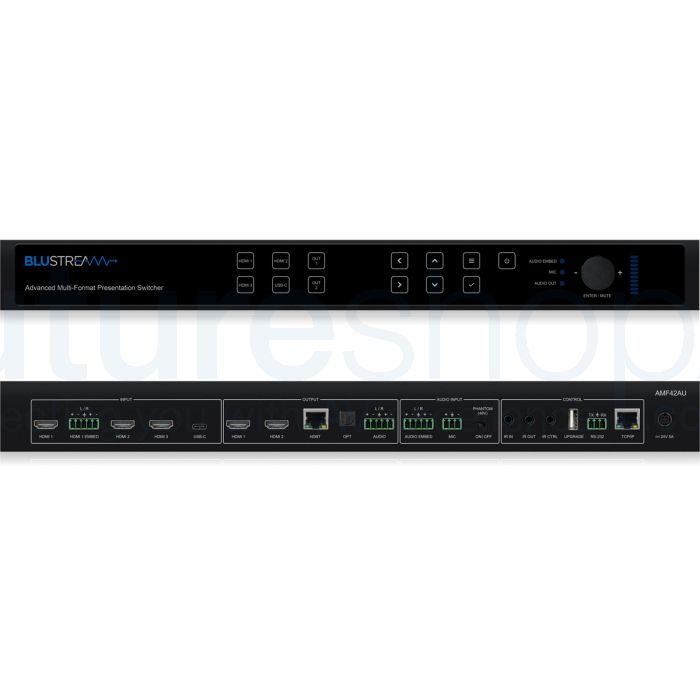

Blustream AMF42AU 4x2 Advanced Multi-Format Presentation Switcher



The Blustream AMF42AU 4x2 Advanced Multi-Format Presentation Switcher is a powerful, versatile solution designed to elevate your audiovisual experience. Its advanced features and exceptional performance make it the ideal choice for boardrooms, classrooms, and huddle spaces.

Equipped with 3 HDMI 2.0 inputs and 1 USB-C input, the AMF42AU allows you to connect multiple sources and seamlessly switch between them. These inputs can be independently routed to 2 HDMI outputs or 1 HDBaseT™ output, providing you with flexible configuration options to suit your needs.

Harnessing the power of advanced HDBaseT™ technology, this switcher enables the distribution of high-quality video and audio over a single CAT cable. With support for resolutions up to 4K UHD 60Hz 4:4:4, you can enjoy stunning visuals with exceptional clarity and detail.

The AMF42AU offers independent video scaling on outputs, ensuring that your content is displayed optimally on different screens or projectors. This feature enhances the versatility of the switcher, allowing you to customize the output according to your requirements.

Incorporating a MIC input with audio mixing and 48V phantom power, the AMF42AU enables seamless integration of microphones for presentations or interactive sessions. The switcher also supports audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently, providing you with flexible audio connectivity options.

With seamless source switching and manual or auto source selection option, the AMF42AU simplifies your workflow and enhances user experience. Control and configuration can be easily managed through the intuitive Web GUI or through source and display control via CEC, RS-232, and IR.

The AMF42AU is HDCP 2.2 compliant and features advanced EDID management, ensuring compatibility with the latest content protection standards. It also offers a range of control options, including control via front panel, IR, RS-232, and TCP/IP, and supports 3rd party drivers for major control brands.

Experience the power and versatility of the Blustream AMF42AU 4x2 Advanced Multi-Format Presentation Switcher. Elevate your presentations, enhance collaboration, and unlock a new level of audiovisual excellence. With its cutting-edge features and reliable performance, this switcher is the perfect solution for your professional applications.



Features

  • Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
  • Dual HDMI / HDBaseT™ on output 2
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification
  • Independent video scaling on outputs
  • Supports resolutions up to 4K UHD 60Hz 4:4:4
  • Seamless source switching with manual or auto source selection
  • Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
  • Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
  • ARC breakout available via S/PDIF when using RX70CS receiver
  • Analogue audio inputs and output support both balanced and unbalanced audio
  • Features MIC mixer over source audio with independent level adjustment
  • MIC input supports line level or 48V Phantom power
  • Configurable source and display control via CEC, RS-232 and IR
  • Web interface module for control and configuration of matrix
  • 3rd party drivers available for major control brands
  • HDCP 2.2 compliant with advanced EDID management



Specification

  • Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 2 x 5-pin phoenix connector (2ch balanced / unbalanced analogue audio)
  • MIC Input Connectors: 1 x 3-pin phoenix connector
  • Audio Output Connectors: 1 x 5-pin phoenix connector (2ch balanced / unbalanced analogue audio), 1 x Optical Toslink (S/PDIF)
  • RS-232 Serial Ports: 1 x 3-pin phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Product Upgrade: 1 x USB Type A female
  • Rack Mountable: 1U rack height, rack ears included
  • Casing Dimensions (W x H x D): 437mm x 44mm x 265mm
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/5A DC

Contents

  • 1 x AMF42AU
  • 1 x IR Remote Control
  • 1 x 24V/5A DC Power supply
  • 1 x Rack Mounting Kit
  • 1 x IR Receiver
  • 1 x IR Emitter
  • 1 x RS-232 Control Cable
  • 1 x Quick Reference Guide



Blustream 4K60Hz 4:4:4 Feature Icon Blustream HDBaseT Feature Icon Blustream HD Audio Feature Icon
Blustream 3D Feature Icon Blustream EDID Feature Icon Blustream PoE Feature Icon
Blustream CSC Feature Icon Blustream HDCP2.2 Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
  • Audio Input Connectors: 2 x 5-pin phoenix connector (2ch balanced / unbalanced analogue audio)
  • MIC Input Connectors: 1 x 3-pin phoenix connector
  • Audio Output Connectors: 1 x 5-pin phoenix connector (2ch balanced / unbalanced analogue audio), 1 x Optical Toslink (S/PDIF)
  • RS-232 Serial Ports: 1 x 3-pin phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Product Upgrade: 1 x USB Type A female
  • Rack Mountable: 1U rack height, rack ears included
  • Casing Dimensions (W x H x D): 437mm x 44mm x 265mm
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/5A DC

Contents

  • 1 x AMF42AU
  • 1 x IR Remote Control
  • 1 x 24V/5A DC Power supply
  • 1 x Rack Mounting Kit
  • 1 x IR Receiver
  • 1 x IR Emitter
  • 1 x RS-232 Control Cable
  • 1 x Quick Reference Guide
