Blustream's Multicast distribution platform allows distribution of HDMI video over a 1Gb Network switch. The ACM210 Advanced Control Module allows for third party control of the Multicast system using TCP/IP, RS-232 and IR. The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC. Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

promotional_banner_4
promotional_banner_4

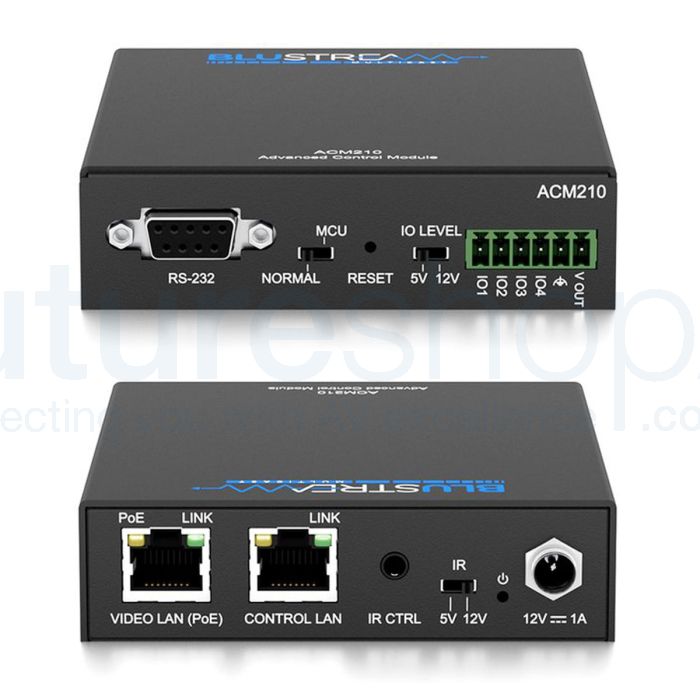

Blustream ACM210 Advanced Control Module



If you're looking to maximize the performance and control of your Blustream Multicast system, the Blustream ACM210 Advanced Control Module is an essential addition. With its intuitive web interface module, you can easily configure and control your system with just a few clicks.

One of the key benefits of the ACM210 is its advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video. This means you can customize and manage your system with greater precision and flexibility.

The ACM210 also offers auto system configuration, so you can easily set up your system without the need for complex network setup. With its two RJ45 LAN connections, you can bridge your existing network to the Multicast video distribution network, which results in better system performance as network traffic is separated.

Another great feature of the ACM210 is its support for iOS and Android App control, as well as 3rd Party drivers available for major control brands. With its RS-232 and IR integration, you can easily control your Multicast system using your preferred method.

Overall, if you're looking for greater control and flexibility for your Blustream Multicast system, the Blustream ACM210 Advanced Control Module is a must-have. Its advanced features and intuitive interface make it the perfect addition for any professional installation.



Here is what Blustream say about the ACM210

Our Multicast distribution platform allows distribution of HDMI video over a 1Gb Network switch. The ACM210 Advanced Control Module allows for third party control of the Multicast system using TCP/IP, RS-232 and IR.

The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.

Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.



Features

  • Web interface module for configuration and control of the Blustream Multicast system
  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • Auto system configuration
  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
    • Better system performance as network traffic is separated
    • No advanced network setup required
    • Independent IP address per LAN connection
    • Allows simplified TCP/IP control of Multicast system
  • RS-232 integration for control of Multicast system
  • IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from PoE switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE
  • Support for iOS and Android App control
  • 3rd Party drivers available for major control brands



Specification

  • Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)
  • RS-232 Serial Port: 1 x DB-9 female
  • GPIO Port: 1 x 6-Pin Phoenix connector
  • IR Input Port: 1 x 3.5mm stereo jack
  • PoE consumption: 4.0W (typical), 4.5W (max load)
  • Dimensions (W x D x H ): 96mm x 110mm x 26mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)



Box Contents

  • 1 x ACM210
  • 1 x IR Control Cable - 3.5mm to 3.5mm Cable
  • 1 x 6-pin Phoenix Connector
  • 1 x Mounting Kit



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)
  • RS-232 Serial Port: 1 x DB-9 female
  • GPIO Port: 1 x 6-Pin Phoenix connector
  • IR Input Port: 1 x 3.5mm stereo jack
  • PoE consumption: 4.0W (typical), 4.5W (max load)
  • Dimensions (W x D x H ): 96mm x 110mm x 26mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Box Contents

  • 1 x ACM210
  • 1 x IR Control Cable - 3.5mm to 3.5mm Cable
  • 1 x 6-pin Phoenix Connector
  • 1 x Mounting Kit
