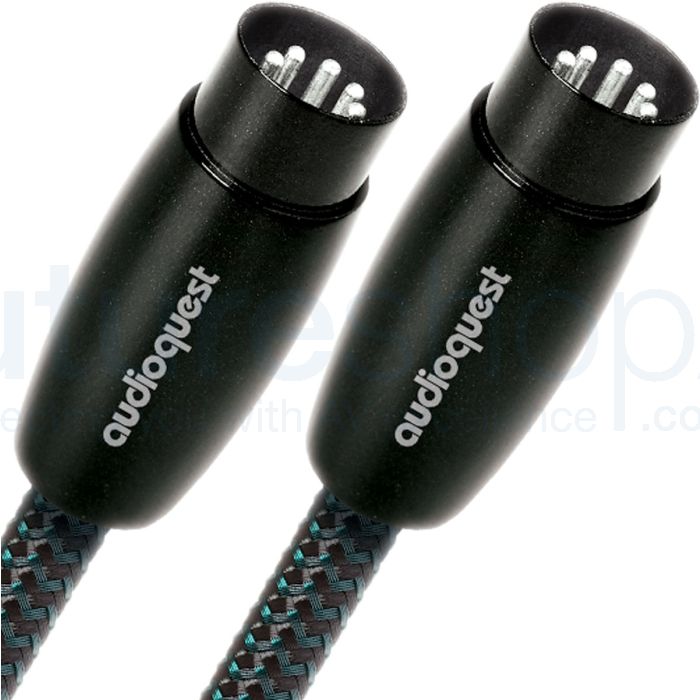

Audioquest Yosemite 5 Pin Din to 5 Pin Din Audio Cable

Audioquest Yosemite 5 Pin to 5 Pin Din Audio Cable

The Yosemite Valley in California's Sierra Nevada Mountains is world famous for its beauty, for naturalist John Muir's work to preserve the Valley, and for Ansel Adams astonishing black & white photographs ("Yosemite and the Range of Light"). Like other glacier-carved fjord-type valleys, such as the famous fjords of Western Norway, the Yosemite Valley is graced with gorgeous waterfalls along both sides. Giant Sequoia trees, the largest trees in the world, further enhance Yosemite as possibly the most beautiful of all US National Parks.

Solid Perfect-Surface Copper+ Conductors (PSC+) :

Perfect-Surface Copper+ has an astonishingly smooth and pure surface. Proprietary metal-processing technology protects the wire’s surface at every stage of drawing and fabrication. When high-purity low-oxide copper is kept as soft, pure and smooth as possible, it becomes a wonderfully low-distortion PSC+ conductor. PSC+ is manufactured by applying the same exceptional technology to an ultra-pure copper. The resulting sound quality is even more focused and simply less in the way. For over 30 years AudioQuest has pioneered the use of superior metals; yet even we were surprised by the huge leap in performance made possible with Perfect-Surface Technology.

PSC+ simply outperforms all previously available copper metals at any price. All of Yosemite's conductors are solid. Electrical and magnetic interaction between strands in a conventional cable is the greatest source of distortion, often causing a somewhat dirty, harsh sound. Solid conductors are fundamental toward achieving Yosemite’s very clean sound.

FEP Air-Tube Insulation (FEP is a Fluoro-Polymer) :

Insulation is necessary to keep the positive and negative conductors separate and to give stability to cable geometry. Insulation is also a "dielectric" because it is inside the conductor's magnetic field. Dielectrics absorb energy, which after a delay is then released in the signal, causing smearing and distortion. Better insulation reduces distortion by absorbing less energy.

All of Yosemite’s conductors use Air-Tube insulation because air absorbs next to no energy, and FEP is the best extractable solid insulation and absorbs less energy than other materials. The FEP Air-Tubes used in Yosemite have almost nothing but air around the solid PSC+ conductors.

Dielectric-Bias System (DBS, US Pat #s 7,126,055 & 7,872,195 B1) :

All insulation slows down the signal on the conductor inside. When insulation is unbiased, it slows down parts of the signal differently, a big problem for very time-sensitive multi-octave audio. AudioQuest’s DBS creates a strong, stable electrostatic field which saturates and polarizes (organizes) the molecules of the insulation. This minimizes both energy storage in the insulation and the multiple nonlinear time-delays that occur. Sound appears from a surprisingly black background with unexpected detail and dynamic contrast. The DBS battery packs will last for years. A test button and LED allow for the occasional battery check.

Yosemite utilises the Carbon-Based 3-Layer Noise-Dissipation System (NDS) to prevent most RFI from reaching the equipment’s ground plane.

Carbon-Based 3-Layer Noise-Dissipation System (NDS) :

100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Noise-Dissipation System prevents a significant amount of RFI from reaching the equipment’s ground plane.

AudioQuest’s Noise-Dissipation System (NDS) offers a compelling solution to this challenge by using metal only or alternating layers of metal and carbon-loaded synthetics to effectively “shield the shield,” absorbing and reflecting the Radio Frequency (RF) energy before it reaches the layer attached to the ground.

Yosemite ultilises the Carbon-Based 3-Layer Noise-Dissipation System (NDS) to prevent most RFI from reaching the equipment’s ground plane.

Double-Balanced Asymmetrical Geometry :

Geometry is the physical relationship of the conductors to one another within a cable and determines a cable’s most basic electrical values (capacitance and inductance). Different cable applications have different/specialized geometry requirements, and so these applications do not merely follow a ‘one size fits all’ approach. Better geometry leads to lower levels of distortion.

Purpose designed for single-ended applications, Double-Balanced Asymmetrical Geometry offers a relatively lower impedance on the ground for a richer, and more dynamic experience. While many single-ended cable designs use a single path for both the ground and the shield, Double-Balanced designs separate the two for cleaner, quieter performance.

Directionality

AudioQuest’s understanding of conductor directionality and its effect on audio performance has steadily evolved, growing stronger and more complete. All audio cables are directional. The correct direction is determined by the arrows on the plugs or cable parts.

Cold-Welded Direct-Silver Plated Pure "Red-Copper" RCA Plugs :

AudioQuest specifies materials and designs each of its own connectors from the ground up, resulting in the long-lasting quality and exceptional performance you deserve. These components are crucial to the overall performance of a cable.

To provide the best possible performance for each application, AudioQuest designs each of its connectors from the ground up. These components are crucial to the overall performance of the cable. Painstaking care is taken to evaluate the highest quality materials and design for every application.

AudioQuest pays special attention to the plating it uses over its connectors’ carefully crafted base metals. This proprietary, novel plug design allows for a connection devoid of solder, which is a common source of distortion. Because the ground shells are stamped instead of machined, the metal can be chosen for low distortion instead of machine ability. Red-Copper offers a cleaner, clearer sound than the nickel-plated or OFHC metals commonly found in competing manufacturers' plugs.

Specification :

• Geometry: Asymmetrical Double-Balanced (lower impedance on ground, same quality + & - conductors)
• Metal: Solid Perfect-Surface Copper+ (PSC+) Conductors
• Dielectric: FEP Air-Tubes (FEP is a Fluoro-Polymer)
• Noise-Dissipation System (NDS): Carbon-Based 3-Layer Noise-Dissipation System
• 72V Dielectric-Bias System (DBS) saturates and polarizes insulation, greatly reducing digital-audio distortion
• RCA Plugs: Cold-Welded Direct-Silver Plated Pure "Red Copper"
• Jacket Colour: Black/green braid
