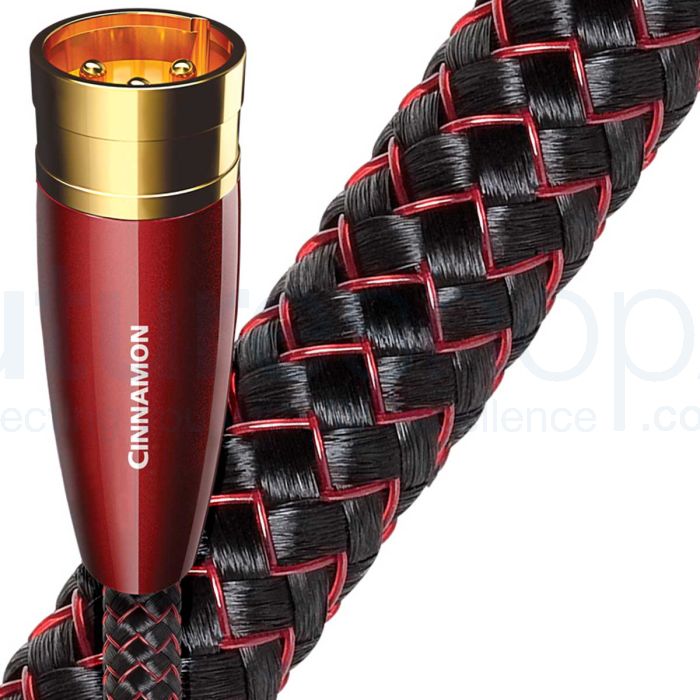

AudioQuest Cinnamon Digital Audio AES/EBU Cable
As low as £119.00 £99.17
SKU
AQ Cinnamon AES/EBU
Lifetime
New
24 hours
The Cinnamon comes with 1.25% Solid Silver. While AES/EBU can be single-ended, balanced, or optical, here we refer to the balanced-digital interconnect.
promotional_banner_4
promotional_banner_4
AudioQuest Cinnamon Digital Audio AES/EBU Cable
AES/EBU, developed jointly by the Audio Engineering Society and the European Broadcast Union, established a two-channel digital standard for interconnecting digital devices in the professional world. But, AES/EBU also has its application in the domestic environment as well. While AES/EBU can be single-ended, balanced, or optical, here we refer to the balanced-digital interconnect.
Features :
- Solid 1.25% Silver Conductors
- Hard-Cell Foam Insulation
- 100% Shield Coverage (Foil + Tinned Braid)
- Carbon-Based 3-Layer Noise-Dissipation System (NDS)
- Gold-Plated Terminations
Solid 1.25% Silver Conductors :
Solid conductors eliminate strand-interaction distortion and reduce jitter. Solid silver-plated conductors are excellent for very high-frequency applications. These signals, being such a high frequency, travel almost exclusively on the surface of the conductor. As the surface is made of high-purity silver, the performance is very close to that of a solid silver cable, but priced much closer to solid copper cable. This is an incredibly cost effective way of manufacturing very high-quality digital-audio cables.
Hard-Cell Foam Insulation :
Hard-Cell Foam insulation is used exclusively in most of AudioQuest’s video and digital audio cables. Similar to Foamed-PE, it is nitrogen injected to create air pockets. ‘Hard’ foam is used because the stiffness of the material allows the conductors in the cable to maintain the same relationship with each other along the full length of the cable, thus ensuring that the characteristic impedance of the cable is consistent.
100% Shield Coverage (Foil + Tinned Braid) :
Shielding always plays an important role in any cable design, but the shield on coax interconnect plays an especially important role because it functions not only as a shield but a return path as well. Because of this, AudioQuest pays special attention to the shield’s metal quality and the fabrication techniques as both will affect the sound and the picture.
Carbon-Based 3-Layer Noise-Dissipation System (NDS) :
100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Metal and Carbon-Loaded synthetics prevent most RFI from reaching the equipment’s ground plane.
Specification :
- Metal: Solid 1.25% Silver
- Geometry: 110Ohm Triple Balanced
- Gauge: 24 AWG
- Dielectric: Hard-Cell Foam
- Noise-Dissipation System: Carbon-Based 3-Layer NDS
- Shield: Foil + Tinned Braid
- Termination: Cold-Welded, Gold-Pated
- Jacket Colour: Black/Red Braid
About AudioQuest
AudioQuest has been the largest cable supplier to the high-end specialist market for many years. AudioQuest is sold in several hundred outlets in the US and in over sixty countries. Bill Lowe (Founder) is especially pleased that this success has been possible despite his insistence that the foundation of the company, and the foundation of AudioQuest marketing, must be the performance of the product. In the audio world, many professionals have learned that it is not always convenient to listen to the products they sell … they might learn something they don’t want to know! Bill has always understood the challenge of basing the existence of AudioQuest on the performance of the product. However, to Bill, this is the only reasonable way to do business and the only acceptable way to combine his passion for music (and all things high performance), with his need to make a living.
Specification :
- Metal: Solid 1.25% Silver
- Geometry: 110Ohm Triple Balanced
- Gauge: 24 AWG
- Dielectric: Hard-Cell Foam
- Noise-Dissipation System: Carbon-Based 3-Layer NDS
- Shield: Foil + Tinned Braid
- Termination: Cold-Welded, Gold-Pated
- Jacket Colour: Black/Red Braid
