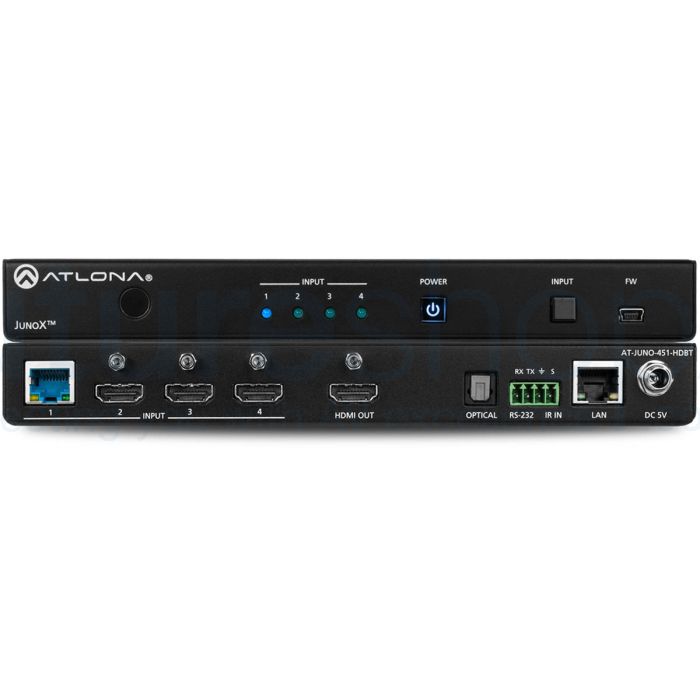

Atlona AT-JUNO-451-HDBT 4K HDR Three-Imput HDMI Switcher with HDBaseT input and Auto-Switching

Atlona AT-JUNO-451-HDBT 4K HDR Three-Imput HDMI Switcher with HDBaseT input and Auto-Switching

The AT-JUNO-451-HDBT features an HDBaseT input and is ideal for receiving 4K HDR or 4K/60 4:4:4 from an Atlona Opus Series matrix switcher. It is also compatible with the Atlona UHD-PRO3, UHD-CAT, UHD-EX, SW Series, and other HDBaseT products for AV extension up to 10 Gbps.

The Atlona JunoX™ 451 HDBT (AT-JUNO-451-HDBT) is a 4×1 switcher for high dynamic range (HDR) formats. The JunoX 451 HDBT features three HDMI inputs, plus an HDBaseT input for receiving video, embedded audio, and Ethernet over distances up to 330 feet (100 meters). It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 HDBT is ideal for receiving 4K HDR over HDBaseT from an Atlona Opus™ Series matrix switcher, and is also compatible with the Atlona UHD-PRO3, UHD-CAT, and SW Series for HDBaseT extension up to 10 Gbps. The JunoX 451 HDBT includes EDID management features and automatic input switching. It also supports the HDMI Audio Return Channel for receiving digital audio from a television, and includes a TOSLINK digital audio output for sending this audio to an AV receiver or soundbar. This JunoX Series switcher can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

The JunoX 451 HDBT is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The JunoX 451 HDBT is designed to deliver dependable, pristine-quality image presentations in residential as well as commercial applications. It includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Reliable Auto-Switching

The JunoX 451 HDBT automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

Applications

• Residential installations – The JunoX 451 HDBT is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
• Local HDMI switching – The JunoX 451 HDBT is ideal for residential and commercial applications with HDMI switchers for rooms that can also receive content from shared AV sources via a centralized matrix switcher.
• TV showrooms – This 4K HDR switcher can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
• Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.

Features:

4×1 HDMI and HDBaseT switcher

• Delivers high performance, reliable HDMI signal switching
• HDBaseT input receives AV, control, and Ethernet up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K HDR using CAT6a/7 cable
• Easy to install and deploy in residential and commercial applications

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

• Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
• Compatible with 4K HDR10 and Dolby® Vision™ @ 60 Hz*
• Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
• * Supports Dolby Vision @ 30 Hz through the HDBaseT input.

HDCP 2.2 compliant

• Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices

Automatic input selection using hot plug detect and video detection technology

• Selects active input when sources are connected or if there is a change in source power status
• Enables simplified, automatic system operation with no user intervention necessary

EDID management

• Manages EDID communications with the source through a display’s EDID or internally stored EDID
• Ensures desired audio formats and video resolutions are provided to the AV system

Delivers return audio from a TV via ARC to an optical digital audio output

• Supports the HDMI Audio Return Channel
• Provides a return audio pathway from a television to an AV receiver or soundbar over the TOSLINK digital audio output
• Easy and convenient integration of television audio for over-the-air broadcasts, OTT (over-the-top) media services, and more

Visually lossless VESA Display Stream Compression

• Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression
• Innovative signal extension solution delivers very high, pristine image quality
• Compatible with forthcoming Atlona matrix switchers with 4K HDR-enabled HDBaseT outputs

HDMI audio de-embedding

• Extracts HDMI two-channel PCM or multi-channel bitstream audio to the TOSLINK digital audio output
• Provides an additional integration option for AV receivers and soundbars

Easy, GUI-based configuration using integrated web server

• Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID and HDCP management, and audio
• Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field

TCP/IP, RS-232, and IR control

• Flexible control options for compatibility with Atlona Velocity™ and third-party control systems
• Reduces integration time and costs
• Includes a convenient handheld IR remote control

Easy to configure and manage with AMS (Atlona Management System)

• Centralized, network-based configuration and management of Atlona IP-controllable products and systems
• Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
• Available as a cost-effective server appliance, or a free software download

Multi-channel audio compliant

• Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
• Allows any multi-channel audio stream to be used within a residential or professional audio system

Field-updatable firmware

• Front panel USB port provides an easy means for device updates
• Ensures long-term system return on investment

Front panel input selection status LEDs

• LED indicators provide HDMI input selection status information
• Provides easy setup and troubleshooting

Low-profile, 1 inch (25 mm) high enclosure

• Easy installation into racks and confined spaces
• Keeps devices out-of-sight when placed in public spaces

Included accessories

• User guide, IR remote control, surface mounting hardware, and external universal power supply

Award-winning 10 year limited product warranty

• Ensures long-term product reliability and performance in residential and commercial systems
• Specify, purchase, and install with confidence

Specification:

Connectors, Controls, and Indicators

• HDMI IN3 – Type A, 19-pin female
• HDMI OUT1 – Type A, 19-pin female
• USB1 – Type mini-B, 5-pin female
• RS-232 / IR1 – 5-pin captive screw
• OPTICAL1 – TOSLINK™
• HDBaseT1 – RJ45
• LAN1 – RJ45
• DC 5V1 – Barrel connector, 5.5 mm, locking
• Power button1 – momentary, tact-type, backlit power LED
• Input select button1 – momentary, tact-type
• Video input indicators4 – LED, blue

Video

• UHD/HD/SD4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29. 97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
• VESA2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800, 1280×768, 1152×768, 1024×768, 800×600, 640×480
• Color SpaceYUV, RGB
• Chroma Subsampling4:4:4, 4:2:2, 4:2:0
• Color Depth8-bit, 10-bit, 12-bit
• HDRHDR10 and Dolby® Vision™ @ 60 Hz (30 Hz for HDBaseT input)

Audio

• HDMI IN / HDBaseT INPCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD
• Master Audio™, Dolby Atmos®, DTS:X
• Sample Rate32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Bit Rate24-bit (max.)

Resolution / Distance

• HDMI IN/OUT15 (4K – Feet); 5 (4K – Meters); 30 (1080p – Feet); 10 (1080p – Meters);
• CAT5e295 (4K – Feet); 90 (4K – Meters); 330 (1080p – Feet); 100 (1080p – Meters);
• CAT6/CAT6a/CAT7330 (4K – Feet); 100 (4K – Meters); 330 (1080p – Feet); 100 (1080p – Meters);

Signal

• Maximum TMDS Clock600 MHz
• HDBaseT18 Gbps
• HDMI2.0
• USB2.0
• HDCP2.2
• CEC1.4

Temperature

• Operating32° to 122° (Fahrenheit); 0° to 50° (Celsius);
• Storage-4° to 140° (Fahrenheit); -20° to 60° (Celsius);
• Humidity (RH)20% to 90%, non-condensing

Power

• Consumption6.6 W
• Idle Consumption5.9 W
• SupplyInput: 100 – 240 V AC, 50/60 Hz, Output: 5 V DC

Dimensions

• H x W x D: 1.0 x 8.6 x 5.9 (Inches); 26 x 219 x 152 (Millimeters);

Weight

• Device: 1.82 (Pounds); 0.82 (Kilograms);

Certification

• DeviceCE, FCC
• Power SupplyCE, FCC, Level VI, RoHS, cULus, RCM, CCC
