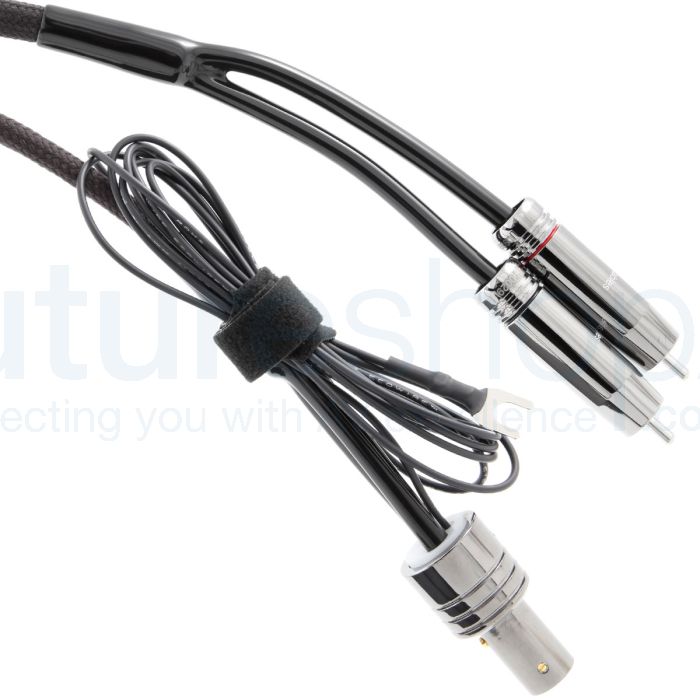

Atlas Mavros Ultra Tonearm Audio Cable
As low as £976.00 £813.33
SKU
Mavros Tonearm
5 Years
New
24 hours
An extremely low noise cable ideally suited to the very low signal output levels of phono cartridges. Based on Atlas' latest generation Hyper interconnect, the Hyper Integra Tonarm cable is available with the choice of either a right-angle (90°) or straight (180°) entry 5 pin connector.
promotional_banner_4
promotional_banner_4
Atlas Mavros Ultra Turntable Audio Cable
Based on Atlas's highly regarded Mavros interconnect, this Mavros Tonearm Ultra RCA is an extremely low-noise cable specifically designed for the very low signal output levels of phono catridges in ‘high-end’ vinyl replay.
Engineered to achieve maximum signal transfer with minimum susceptibility to tthe spurious RF and EM interference which pervade our homes, the Mavros Tonearm Ultra presents an extremely low background noise floor, allowing maximum expression of dynamics, depth and subtlety.
The Mavros Tonearm Ultra RCA uses the very highest quality ‘6N’ (99.99997% purity) copper manufactured using the OCC ‘Ohno Continuous Cast’ technique combined with a foamed PEF dielectric covered by a discrete continuous copper/Mylar™ electrostatic screen with copper shielding braid for each channel.
The cable assembly demonstrates Atlas's customary focus on minimising breaks and offering maximum continuity in the signal path.
In practice, this means key components in the signal path are OCC copper throughout, including the signal pins at each end of the cable. Termination is with the low mass, high bandwidth, cold-weld Ultra RCA connectors. This approach, rather than the more typical combination of different metals and variable elements in soldered connections, minimises the information losses which occur at different ‘break points.’
The cable is supplied with a separate ground cable with spade earth tags.
The 5 pin tonearm plug is precision-turned and hard gold-plated. Cable entry is from either the side (90° right angle entry) or from the base (straight entry), please specify your requirement when ordering.
Features :
- Ultra RCA
- OCC Copper Conductors
- PEF Dielectric
- Dual Symmetrical Construction
Ultra RCA Plug
The Ultra is a wide-band, OCC copper, constant impedance, self-cleaning, solder-free construction RCA plug. In Atlas' cables, the conductor to plug interfaces are solder free, and the gold-plated conjugate brackets act as the return signal path, helping to reject RFI. Both conjugate brackets (these grip the cable without the adverse effects of compressing it, which can alter impedance) have two asymmetrical leaves which spring open on insertion and wipe clean the signal path. To maintain a clean signal path, simply remove and re-insert them periodically.
The Ultra RCA connectors utilise low-mass non-magnetic connectors to minimise the negative effect of excessive metal in the plug itself.
Ohno Continuous Casting Copper (OCC Copper)
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long!
The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Dual Symmetrical Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a braid + Mylar™ screen.
|
|
|
“It’s a quality which works superbly on New Order’s ‘Age Of Consent’ where the bass was full yet controlled, while the synthesiser sounded superbly rich and melodic. An air of sophistication and musicality reminded me why vinyl sounds so good. In short this is an excellent cable that doesn’t break the bank but offers real benefits.” (Read More) Cable Review - Hi-Fi World - November 2017
|
Specification :
- Construction : Dual Symmetrical
- Conductor : OCC Copper
- Dielectric : PEF (Foamed Polyethylene)
- Screen: Braid + Mylar™ for each channel
- Resistance : 0.0859 Ohms/m
- Capacitance : 95.08 pF/m;
- Inductance : 0.43 µH/m
- VOP: 0.81
- Outside Diameter : 3.8 x 7.6mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : Dual Symmetrical
- Conductor : OCC Copper
- Dielectric : PEF (Foamed Polyethylene)
- Screen: Braid + Mylar™ for each channel
- Resistance : 0.0859 Ohms/m
- Capacitance : 95.08 pF/m;
- Inductance : 0.43 µH/m
- VOP: 0.81
- Outside Diameter : 3.8 x 7.6mm
