Atlas Mavros AES/EBU Digital Audio Cable
As low as £451.50 £376.25
SKU
Atlas Mavros AES/EBU
5 Years
New
24 hours
A key part of Atlas' multi-award winning Mavros family, the Mavros AES-EBU is a high-performance 110Ohm cable using silver-plated copper conductors. Typical usage is in ‘high-end’ digital balanced systems as employed by DCS, Meridian and many professional recording studios
promotional_banner_4
promotional_banner_4

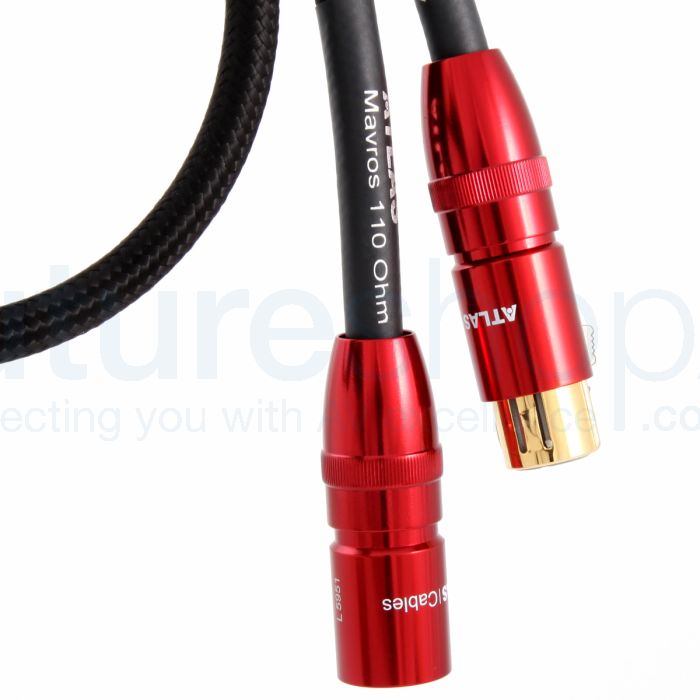

Atlas Mavros AES/EBU Digital Audio Cable
A key part of Atlas' multi-award winning Mavros family, the Mavros AES-EBU is a high-performance 110Ohm cable using silver-plated copper conductors. Typical usage is in ‘high-end’ digital balanced systems as employed by DCS, Meridian and many professional recording studios.
The Mavros AES/EBU cable is engineered as a cable with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon™) dielectric insulation as the other Mavros interconnects. The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. This new dielectric behaves almost like the theoretically perfect insulator –free air – with minimal effect upon the signal being transmitted. The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon™) foam improves this figure to around 1.5, providing for a 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.
The co-axial double shielding layers are an aluminium Mylar™ foil followed by OFC (Oxygen Free Copper) braiding after which the whole cable is protected by a PVC jacket damped with cotton yarn. With a consistent termination impedance, the Mavros AES/EBU interconnect perfectly matches professional and semi-pre digital audio equipment to ensure error-free transmission of high speed digital signals.
The result is evident in the timing and dynamic range of musical performances where the temporal ‘smearing’ of lesser cables is absent.
Features :
- Atlas XLR Plugs
- Silver Plated OFC Conductors
- PTFE Dielectric
- Symmetrical Construction
Atlas XLR Plug
The Atlas XLR combines a lightweight aluminium alloy body with precision-fit OFC/OCC connectors and solder-free construction.
Silver Plated Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PTFE Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Symmetrical Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
Specification :
- Construction : Symmetrical + Screen (19/0.2)
- Material : Silver Plated OFC
- Dielectric : Microporous PTFE (Teflon™)
- Screen : Braid OFC
- Capacitance : 41.27 pF/m
- Inductance : 0.728 µH/m
- Resistance : 0.0029 Ohms/m
- Impedance : 115.96 Ohm (300kHz)
- Outside Diameter : 8 mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : Symmetrical + Screen (19/0.2)
- Material : Silver Plated OFC
- Dielectric : Microporous PTFE (Teflon™)
- Screen : Braid OFC
- Capacitance : 41.27 pF/m
- Inductance : 0.728 µH/m
- Resistance : 0.0029 Ohms/m
- Impedance : 115.96 Ohm (300kHz)
- Outside Diameter : 8 mm
