Atlas Hyper Achromatic Bi-Wire Speaker Cable - Factory Terminated
£266.75 £222.29
SKU
Hyper Achromatic Bi-Wire
Free UK Delivery
5 Years
New
3 - 5 Days
Request Price MatchThe bi-wire variation of Atlas' Hyper cable family. Bi-wire cables can offer performance benefits when the two halves of the loudspeaker's crossover are electrically ‘separated’ to allow bi-wiring) (and bi-amping, if so desired). Available in 2–4 and 4–4 connector configurations.
promotional_banner_4
promotional_banner_4

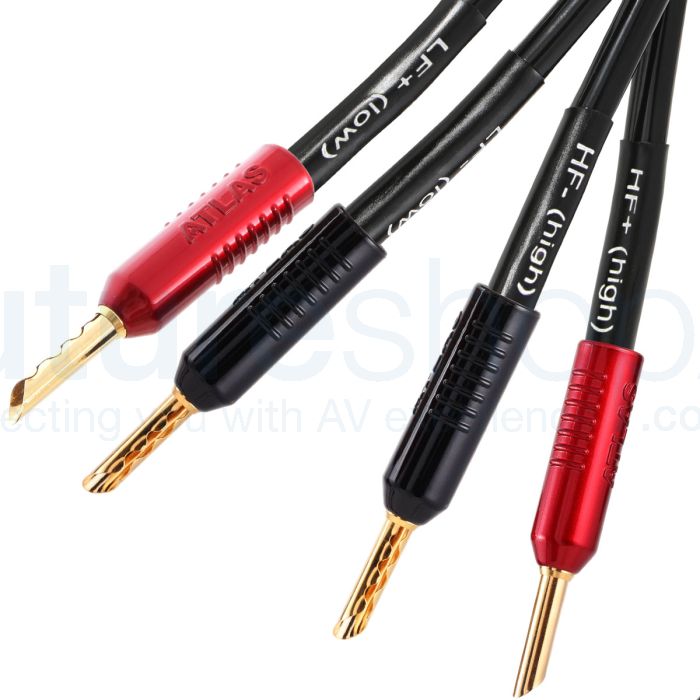

Atlas Hyper Achromatic Bi-Wire Speaker Cable - Factory Terminated
Replacing a well-loved sibling the new Hyper Bi-wire takes over where the older product initially sat many years ago, at a lower price point. Customers love Atlas Bi-wire cables due to the delivered performance, solid core treble/mid and stranded bass, all four cores in a single jacket.
The new Hyper Bi-Wire speaker cable aims to get customer back in love with Bi-wire and with advances in dielectrics and the new Achromatic plugs delivers performance, substance, and style.
The Hyper Bi-Wire cable employs conductors comprising 72 0.25mm² high-purity OFC (Oxygen Free Copper) strands encapsulated within a carefully selected high-efficiency PTFE (Teflon™) dielectric coating. The resultant conductor is embedded within an anti-vibration cotton filler.
Features :
- Achromatic Z-Plugs
- OFC Conductors
- PTFE Dielectric
- Multi-core + Solid Core
Achromatic Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of banana plugs known as the ‘Atlas Achromatic Z Plug’, Atlas has focused on improving performance to create a higher performance starting point for their speaker cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic Z plug. Firstly, the barrel of the Achromatic Z plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
In addition, there is also an improvement to the plug's contact resistance achieved by improving the compliance of the beryllium copper contact leaves featured on the Achromatic Z plug. Beryllium copper offers excellent conductivity of signals.
The third change was to upgrade the manufacturability of the plug for pneumatic tool processing.
Finally, there is a reduction in the overall mass of the Z-Plug by 35% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable Z-plug with a non-conductive body.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008> | |
PTFE Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| (% @ 50 - 106Hz) | 8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Multi-core + Solid Core
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
|
|
|
"With the cable connected between valve monoblocks and transmission line loudspeakers, I kick off testing with Beethoven’s Symphony No.9 performed by the Berlin Philharmonic under the baton of Herbert Von Karajan. After the quiet introduction, the music explodes into an exuberant crescendo. The Hyper Achromatic has no problem with the massive dynamic range of this recording, and there is no sense that the cable is struggling to keep up. When the singers join in for the final movement, Ode To Joy, they are really distinct and never blur together, which can all too often happen with lesser cables." - (Read More) Hi-Fi Choice Recommended - February 2021 |
|
"There’s no doubt in my mind when using the new Hyper cable that the first track I listen to has a significantly improved bass extension. The Chromatics’ Sound of Silence has a heavy double bass line at the beginning of the track and I can clearly hear the deeper sound in my KEFs. It is really quite nice to hear a bit of ported bass that I know and love after the precise and wonderful control of PMC’s twenty5 22i standmount speakers I reviewed last month. To confirm my thoughts on the cables, I go for a bit of Billie Eilish with Bury a Friend and All the Good Girls Go to Hell. My initial findings are reinforced as I peel myself off the wall." - (Read More) HIFI AND MUSIC SOURCE - Highly Recommended - January 2021
|
Specification :
- Construction : Concentric multicore LF/MF, Solid core HF (1.2mm)
- Material : 6N OFC
- Dielectric : PTFE (Teflon)
- Capacitance : 163.98 pF/m
- Inductance : 0.2303 µH/m
- Resistance : 0.0060 Ohms/m I
- VOP: 0.69
- Outside Diameter : 8.5mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : Concentric multicore LF/MF, Solid core HF (1.2mm)
- Material : 6N OFC
- Dielectric : PTFE (Teflon)
- Capacitance : 163.98 pF/m
- Inductance : 0.2303 µH/m
- Resistance : 0.0060 Ohms/m I
- VOP: 0.69
- Outside Diameter : 8.5mm
