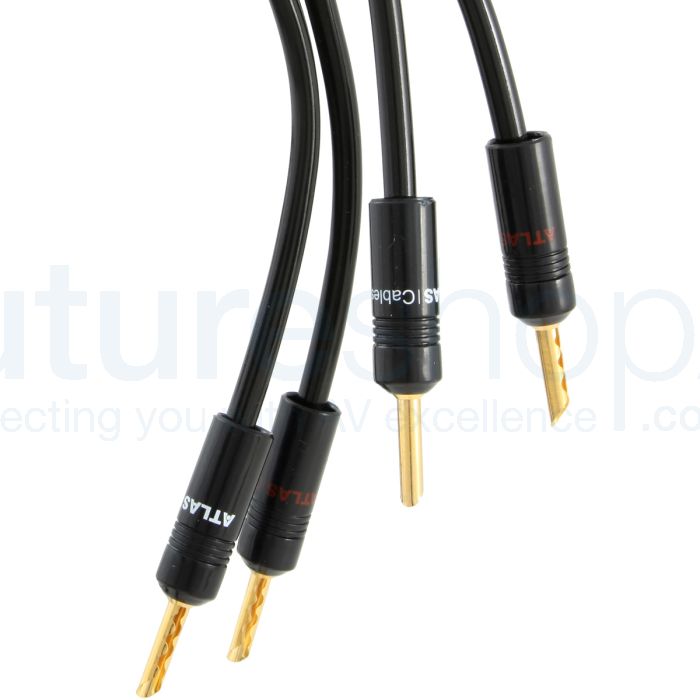

Atlas Hyper 2.0 speaker cables are engineered with neutrality, speed and a wide dynamic range as primary design objectives. The Hyper 2.0 is a superb cable ideally suited for continuous listening over a prolonged period without causing listener fatigue.
Hyper 2.0 speaker cables feature very high purity (99.9999%) OFC (Oxygen Free Copper) 2.0mm² conductors with advanced PTFE (Teflon™) dielectric. It’s a combination most unusual at this price point, and it means the cable offers an exceptional performance which is well suited to considerably more expensive systems than its price tag might suggest.
The increased diameter conductors on the Hyper 2.0 offer improved bass performance over the 1.5 version. The conductor quality and high-efficiency dielectric allow Hyper to reveal more of the performance level your equipment is capable of, being fast and dynamic without suffering the ruthlessly analytical character sometimes mistaken for additional ‘detail,’ which is ultimately fatiguing.
The Atlas Z plug has stood the test of time. Using beryllium copper for the contact area, It's designed to make a 100% contact within the 4mm female socket. The body is made from copper, and it's available for home assembly with grub screws to make contact with the conductors. When factory-fitted or fitted by an Atlas-appointed custom cable centre, they're cold welded under pressure to amalgamate the conductors to the plug in an air-tight seal. The outer sleeve is finished in black coloured ABS or in a turned brass with a fine oven-applied powder coat finish. The Atlas Z plug is justifiably considered to be one of the best 4mm plugs available.
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of banana plugs known as the ‘Atlas Achromatic Z Plug’, Atlas has focused on improving performance to create a higher performance starting point for their speaker cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic Z plug. Firstly, the barrel of the Achromatic Z plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
In addition, there is also an improvement to the plug's contact resistance achieved by improving the compliance of the beryllium copper contact leaves featured on the Achromatic Z plug. Beryllium copper offers excellent conductivity of signals.
The third change was to upgrade the manufacturability of the plug for pneumatic tool processing.
Finally, there is a reduction in the overall mass of the Z-Plug by 35%, which has been shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable Z-plug with a non-conductive body.
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
Copper Purity Comparison (0.3mm Diameter) | ||||
TPC | OFC | OCC | ||
Purity | >99.9% | >99.99% | >99.999% | |
Specific Gravity | 8.75 | 8.926 | 8.938 | |
Gas Impurities (ppm) | ||||
O2 | 200~500 | <10 | <5 | |
H2 | <0.5 | <0.5 | <0.3 | |
Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
Crystals Per Metre | 150 | 50 | 0.008 |
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
PTFE (Teflon™) is usually applied at higher temperatures and in combination with OFC conductors. OCC materials don’t like high temperatures (soldering, applying the dielectric etc) so application of a low temperature PTFE (Teflon™) or FEP work best with OCC conductors. This is especially critical at smaller conductor sizes.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
Dielectric Material Comparison (0.3mm Diameter) | |||||
Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
"You'll quickly realise that the Hyper 2.0 is a talented cable. It delivers a beautifully detailed sound." What Hi-Fi? - 11th June 2008 (Read More) |
This cable is custom-made according to customer's specific requirements as selected by the various dropdown options above. Future Shop can terminate your speaker cable using the Atlas Achromatic Z Plugs (Banana/BFA), the Atlas’ Gold Plated 4mm banana/BFA Z-Plugs or gold-plated spade Plugs. Cables are professionally terminated using a cold-weld method by Future Shop's engineers and guaranteed for ten years. The plugs are put on using a cold weld method with an official tool supplied by Atlas. Cold-welding does not involve solder, which means the plug is crimped around the conductors at 360 degrees' under very high pressure to form an air-tight seal, which prevents the conductors from oxidising. This forms a better contact than soldering. Furthermore, the conductor is in full contact with the plug, which is in 360-degree contact with the binding post of your equipment, which means the signal flow is maximised from the cable into your equipment.
Ordering your cable from Future Shop is simple. Follow these simple steps to customise and secure your purchase:
Please note: Please note you need to enter a quantity of 2 for a pair of speaker cables, i.e. for the left speaker and right speaker.
Once these processes are complete and subject to Future Shop's Terms & Conditions and stock availability, your cable will be dispatched for delivery.
Please remember that the dispatch time may vary depending on the complexity of your custom cable and the stock availability. Future Shop is committed to ensuring a smooth ordering process and providing you with high-quality products that meet your audio needs.
Atlas Cables, a distinguished company headquartered in Scotland, embodies engineering excellence, showcasing an unwavering commitment to research, development, and quality manufacturing. The company's foundational ethos is rooted in an unyielding love for music, from which stems its innovative approach to designing and crafting audio cables and accessories.
What sets Atlas Cables apart from many other brands, often called 'assemblers,' is their control over the entire creation process. While many competitors settle for assembling products from 'off the shelf' components, Atlas delves deeper, ensuring that each element of their products - from core conductors to insulating materials and terminations - is precisely tailored to meet or exceed performance specifications. This control translates to consistency in assembly and a robust quality control system backed by a five-year guarantee.
Manufacturing primarily in Scotland, a region known for its longstanding tradition of engineering brilliance, Atlas Cables takes pride in building products unique to its brand. Their approach circumvents reliance on pre-existing components and instead focuses on original thinking and total control. This philosophy has led to the development of groundbreaking technologies like the low-mass/high-bandwidth Achromatic & Ultra RCA plugs and the more recent Metik connectors tailored for the personal audio market.
Atlas Cables' comprehensive in-house capabilities encompass everything from CAD concept drawings to listening room tests, ensuring synergy across their entire product range. This ability to innovate, paired with rigorous testing and attentive listening, is more than a business strategy; it's the company's unique 'DNA,' ensuring that every product reflects the love of music that fuels the brand.
In a market where others may settle for assembling existing parts, Atlas Cables continues to push boundaries, seeking better ways to design and build their products. Their insistence on originality and excellence allows them to offer advanced technology remarkably cost-effectively. The final result? A portfolio of cables, plugs, and accessories you'll not find elsewhere is truly unique to Atlas, reflecting a profound connection between engineering excellence and the deep love of music that inspired it all.
