The new generation of Atlas' acclaimed Element, with a solid core copper conductor, designed to provide maximum performance from computer audio sources. Typically used to connect a Mac, PC or streamer to the DAC or digital input in your hifi system.
promotional_banner_4
promotional_banner_4

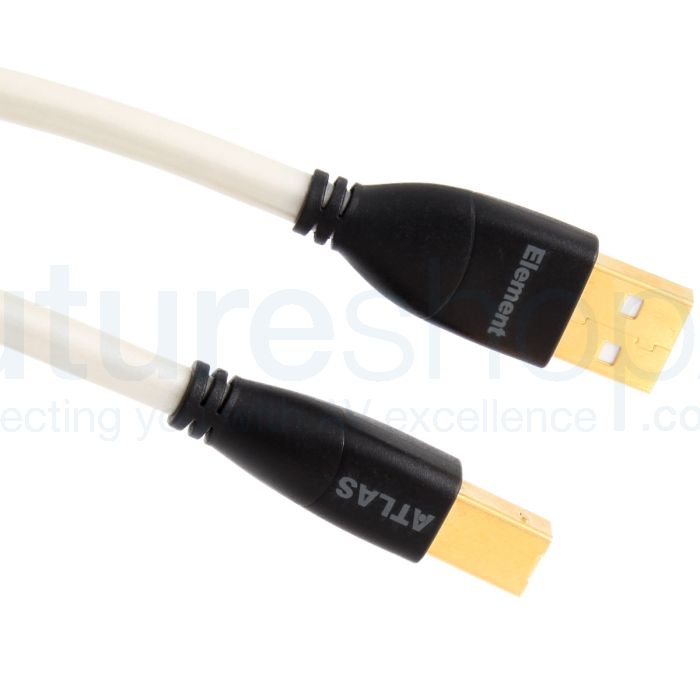

Atlas Element SC USB Type A to Type B Cable
The new generation of Atlas' acclaimed Element, with a solid core copper conductor, designed to provide maximum performance from computer audio sources. Typically used to connect a Mac, PC or streamer to the DAC or digital input in your hifi system.
Digital theory suggests that data is nothing more than a stream of ‘ones & zeros’ and all a cable has to do is transfer the data from one device to another. While that’s essentially true with regard to connecting your printer, it turns out to be an overly simplistic view when considering USB audio devices.
The latest generation of Atlas' hugely popular Element USB cable is the Element SC (solid core) USB. Through extensive testing, Atlas found that the use of solid core silver-plated copper conductors covered in low-loss foamed polyethylene delivered the most consistent performance for the data streams.The use of solid core conductors reduces internal data reflections between each strand of each conductor, and allows for the exact measurement of each twisted pair, meaning that all data transmitted along the cable reaches the receiver at exactly the same time, reducing ‘jitter’ (noise) and increasing performance.
Combined with newly developed triple-screening and hefty power & ground conductors, plus unique Atlas-designed connector plugs, the SC USB is engineered to maintain consistent cable impedance. Both technically and sonically, the SC USB cable achieves ‘best in class’ performance.
Features :
- Atlas USB Plugs
- OFC Conductors
- PEF Dielectric
- Solid Core Construction

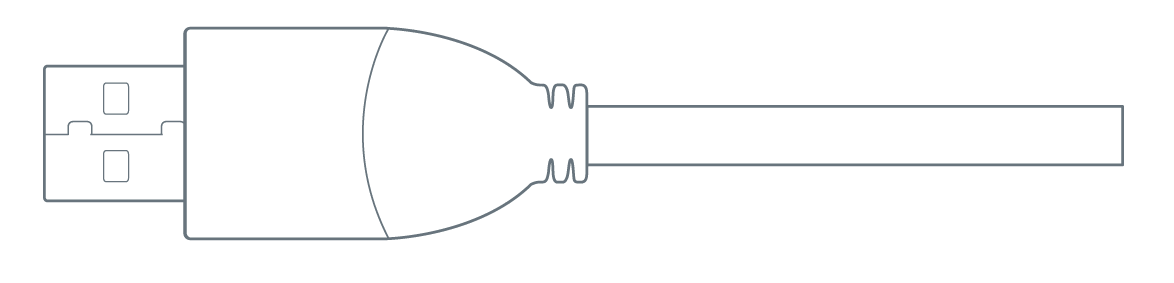

Atlas USB Plugs
Precision moulded, 360° screened USB Type A connector with superior transmission & reception properties, maintaining the termination characteristic impedance.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Solid Core Construction
Optimised conductors (one for signal path, the other for power) enclosed within a non-conducting screen. The configuration minimises noise and interference.
Specification :
- Construction : Solid Core (Data), Multi-core (Power)
- Material : Silver Plated OFC (Data), OFC (Power)
- Dielectric : PEF (Data), SR PVC (Power)
- Screen : OFC, 85%
- Shielding : Triple 100% Mylar™( Data)
- Outside Diameter : 5.5mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : Solid Core (Data), Multi-core (Power)
- Material : Silver Plated OFC (Data), OFC (Power)
- Dielectric : PEF (Data), SR PVC (Power)
- Screen : OFC, 85%
- Shielding : Triple 100% Mylar™( Data)
- Outside Diameter : 5.5mm
