Atlas Element Metik 6.35mm to 6.35mm Audio Cable
As low as £132.50 £110.42
SKU
Atlas Element 6.35mm
5 Years
New
24 hours
The Metik range of cold-weld jack plugs brings the solder-free continuous signal path principles of Atlas' Integra and Ultra RCA connectors to portable device interconnects. Machined with precision copper-alloy contacts, with XLPE dielectric, these cables are a superb choice for connecting mobile devices without compromising sound quality.
promotional_banner_4
promotional_banner_4

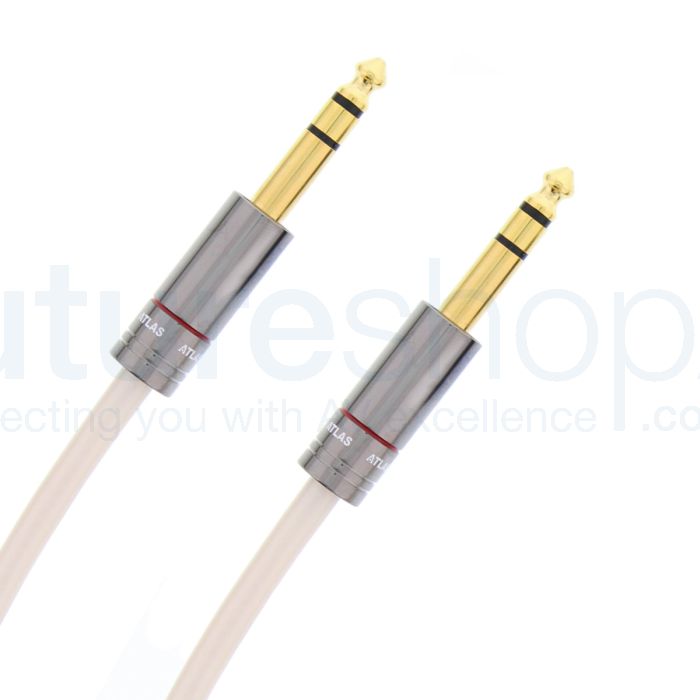

Atlas Element Metik 6.35mm to 6.35mm Audio Cable
The Metik range of cold-weld jack plugs brings the solder-free continuous signal path principles of Atlas' Integra and Ultra RCA connectors to portable device interconnects. Machined with precision copper-alloy contacts, with XLPE dielectric, these cables are a superb choice for connecting mobile devices without compromising sound quality.
Conventional jack plugs typically suffer degraded signal integrity,principally by using low-grade components, soldered connections and/or screw fixings which distort the cable dielectric (insulation), which produces measurable changes in the cable’s impedance.
Features :
- Atlas Metik Jack Plug
- OFC Conductors
- XLPE Dielectric
- 4 Core + Screen Dielectric
Metik Jack Plug
The Metik is a robust, air tight metal to metal solder-free contact jack plug. Available in 2.5, 3.5 & 6mm versions.
In a cold-weld connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no damage to the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as one continuous entity, with minimal degradation of the signal compared to soldered connections.
Atlas also developed their own low mass/high bandwidth connectors to take this approach to its logical conclusion.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
XLPE Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
XLPE Dialectric is a form of LDPE (Low Density Polypropylene) formed with cross-link polymers, stable and used extensively on medium voltage cables.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
4 Core + Screen Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
Specification :
- Construction : 4 core plus screen
- Material : OFC
- Dielectric : XLPE
- Screen : Braid OFC, 90%
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612Ohms/m
- Impedance : 77.05 Ohms/m
- Outside Diameter : 6.0mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : 4 core plus screen
- Material : OFC
- Dielectric : XLPE
- Screen : Braid OFC, 90%
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612Ohms/m
- Impedance : 77.05 Ohms/m
- Outside Diameter : 6.0mm
