Atlas Element Achromatic Digital Audio Cable
As low as £79.00 £65.83
SKU
Element Achromatic Digital Audio
5 Years
New
24 hours
A true 75 Ohm digital interconnect with a detailed, non-fatiguing sound avoiding the digital ‘glare’ which affects many inexpensive digital cables.
promotional_banner_4
promotional_banner_4
Atlas Element Achromatic Digital Audio Cable
The Element Achromatic Digital Audio cable is constructed with a continuous path for the signal virtually free of the discontinuities that can degrade the music signal in subtle but audible ways.
The Element Achromatic Digital Audio is designed to match the consumer digital audio specification by maintaining a true 75 Ohm impedance, ensuring error-free transmission of digital data signals. Many cables actually fail to meet the 75 Ohm standard due to flaws in the way the cable itself is manufactured and assembled. Atlas' cold-weld solder-free connectors avoid the continuity breaks and compression of the cable’s shielding screen which cause impedance problems and lead to compromised jitter performance.
The central conductor is multi-stranded OCC (Ohno Continuous Casting) copper, insulated by an extremely low-loss foamed polyethylene dielectric, the resulting sound being clear and dynamic with minimal jitter-induced noise. The Element Achromatic Dgiital Audio makes an ideal entry level digital cable between CD transport or streamer and DAC – if your equipment has BNC socketry, this will normally offer superior performance to RCA connectors.
Features :
- Atlas BNC Connectors
- Achromatic RCA Plugs
- OFC Conductors
- PEF Dielectric
- Coax Construction
Atlas BNC Connectors
The Atlas BNC connector is designed to maintain a true impedance of 75 Ohms from source to destination.

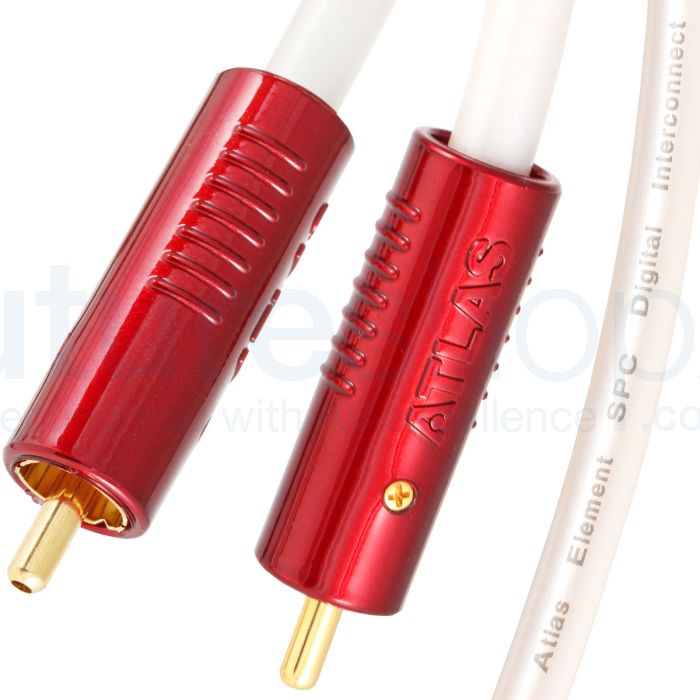

Achromatic Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of RCA plugs. Known as the ‘Atlas Achromatic RCA plug’, Atlas has focused on improving both performance and appearance to create a higher performance starting point for their RCA cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic RCA plug. Firstly, the barrel of the Achromatic plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
There is also an improvement to the Achromatic plug’s contact geometry, aiding the contact properties of the plug and the self-cleaning wiping action to ensure contacts are in optimal condition and to maximise signal transmission.
The third change Atlas made was around the rifling of the RCA pin. This improvement self-aligns the conductors during the cold weld processing, ensuring a superior stable connection.
Finally, there is a reduction in the overall mass of the RCA plug by 8% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable RCA plug with a non-conductive body.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008> | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables. Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE). PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product. The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) | Foamed Polyethylene (PEF) | Polypropylene (P.P) | Teflon (FEP or PTFE) | PTFE |
| Dielectric Constant (@ 50 -106Hz) | 4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) | 23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) | 8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) | 0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) | 1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) | 1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) | -130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) | 60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) | -15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Co-ax Construction
Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.
Specification :
- Construction : Co-ax
- Material : OFC
- Dielectric : PEF
- Screen : OFC, 85%
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612 Ohms/m I
- Outside Diameter : 6.0mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : Co-ax
- Material : OFC
- Dielectric : PEF
- Screen : OFC, 85%
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612 Ohms/m I
- Outside Diameter : 6.0mm
