Atlas Ascent BNC 75 Ohm Digital Audio Cable
As low as £296.00 £246.67
SKU
Atlas Ascent BNC
5 Years
New
24 hours
The Atlas Ascent BNC 75 Ohm SP-DIF digital cable offers a considerable insight into the state-of-the-art performance of Atlas' ‘high-end ’Mavros interconnect at a very reasonable price. The newest member of the Atlas family, Ascent was designed to be technically and sonically superior to other interconnect cables currently available at similar prices.
promotional_banner_4
promotional_banner_4

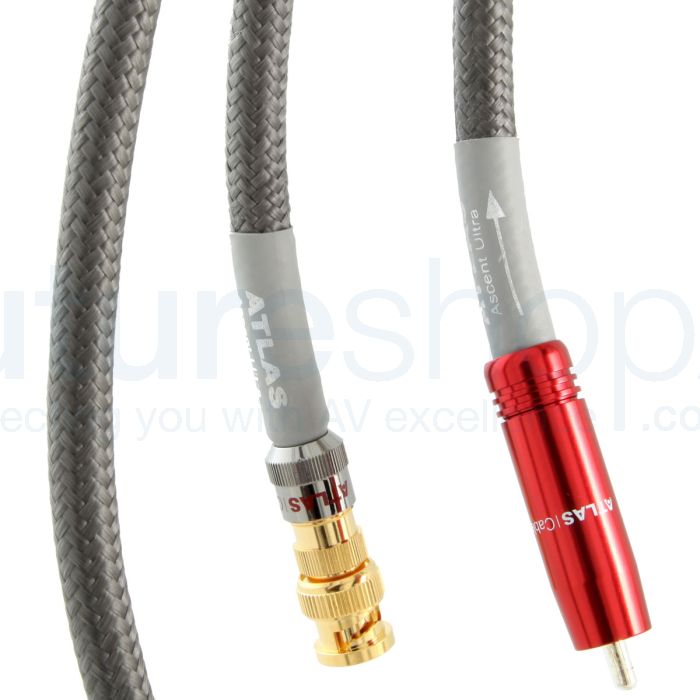

Atlas Ascent BNC 75 Ohm Digital Audio Cable
The Atlas Ascent BNC 75 Ohm SP-DIF digital cable offers a considerable insight into the state-of-the-art performance of Atlas' ‘high-end ’Mavros interconnect at a very reasonable price. The newest member of the Atlas family, Ascent was designed to be technically and sonically superior to other interconnect cables currently available at similar prices.
The central conductor is made from OCC copper which is insulated by an extremely low-loss PEF (Foamed Polyethylene) dielectric. The tightly woven wire mesh together with an aluminium outer foil provides 100% rejection of RFI (Radio Frequency Interference) ensuring the music signal is free from any external interference or noise. The cable is covered by a soft PVC sleeve and finished in a grey woven fabric.
BNC connections are generally with regard to impedance matching, so are preferred if available on your equipment, providing a continuous path for the signal virtually free of the discontinuities which can degrade the music signal. This is particularly important in a digital cable, connectors which compress the cable can actually alter the cable’s impedance, which drops below the 75 Ohm specification, typically by up to 50%, reducing accuracy of the signal transfer.
Features :
- Atlas BNC Plugs
- Ultra RCA Plugs
- OCC Copper Conductors
- PEF Dielectric
- Co-ax Construction
Atlas BNC Plugs
The Atlas BNC connector is designed to maintain a true impedance of 75 Ohms from source to destination.

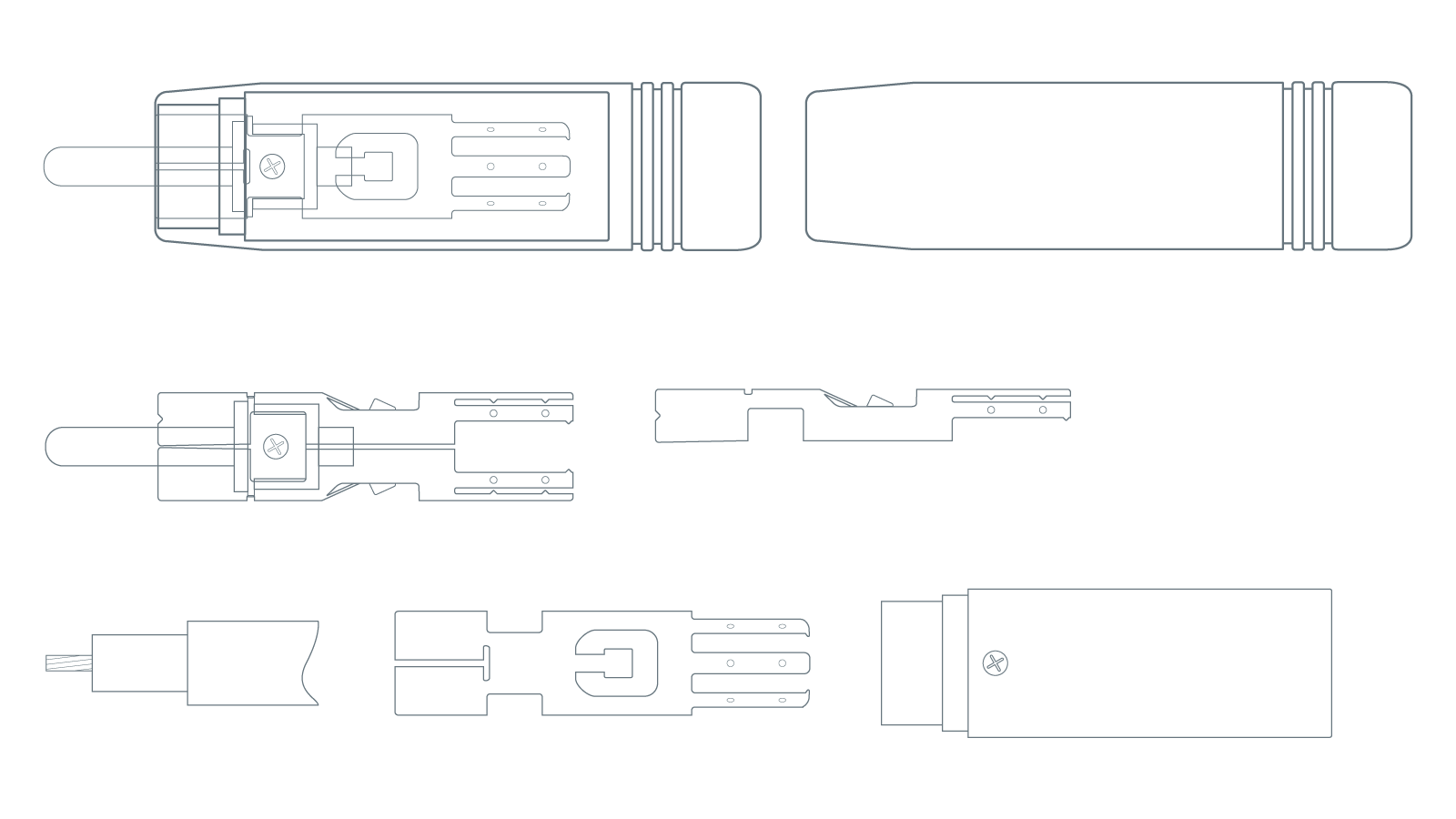

Ultra RCA Plug
The Ultra is a wide-band, OCC copper, constant impedance, self-cleaning, solder-free construction RCA plug.
In Atlas' cables, the conductor to plug interfaces are solder free, and the gold-plated conjugate brackets act as the return signal path, helping to reject RFI. Both conjugate brackets (these grip the cable without the adverse effects of compressing it, which can alter impedance) have two asymmetrical leaves which spring open on insertion and wipe clean the signal path. To maintain a clean signal path, simply remove and re-insert them periodically.
The Ultra RCA connectors utilise low-mass non-magnetic connectors to minimise the negative effect of excessive metal in the plug itself.
Ohno Continuous Casting Copper (OCC Copper)
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long!
The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Co-ax Construction
Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.
Specification :
- Construction : Co-ax
- Material : OCC
- Dielectric : PEF (Foamed Polyethylene)
- Screen : Braid + Al Mylar™
- Capacitance : 59.37 pF/m
- Inductance : 0.473 µH/m
- Resistance : 0.7311 Ohms/m
- Impedance : 73.11 Ohms at (1MHz)
- VOP : 0.81
- Outside Diameter : 8.5mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : Co-ax
- Material : OCC
- Dielectric : PEF (Foamed Polyethylene)
- Screen : Braid + Al Mylar™
- Capacitance : 59.37 pF/m
- Inductance : 0.473 µH/m
- Resistance : 0.7311 Ohms/m
- Impedance : 73.11 Ohms at (1MHz)
- VOP : 0.81
- Outside Diameter : 8.5mm
